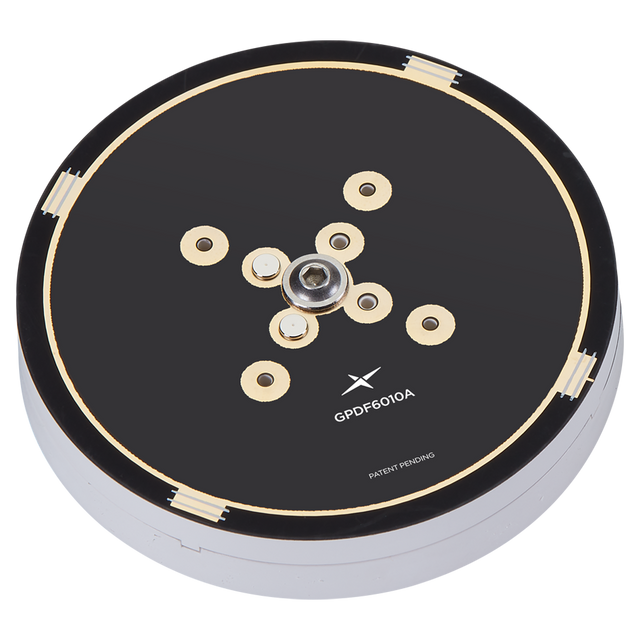

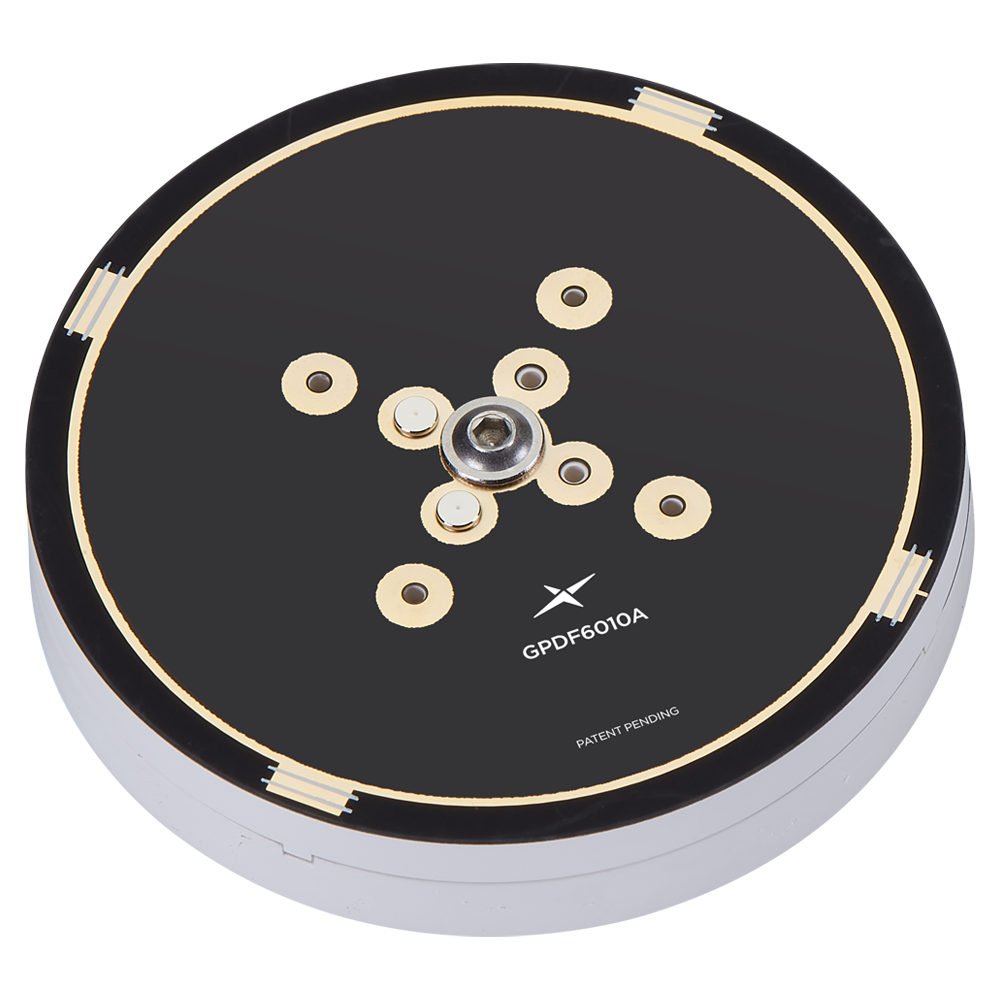

GPDF6010.A Antenna High Precision GNSS embedded stacked patch Terrablast for Autonomous Driving, Unmanned Aerial Vehicles, Precision Positioning for Robotics, Precision Agriculture

PATENT PENDING

This embedded, passive, all-band high-precision GNSS stacked patch antenna is designed to deliver excellent positional accuracy and stable tracking performance across a wide range of GNSS constellations and correction services. The dual-feed stacked patch architecture is optimized for strong polarization and phase performance, supporting advanced high-precision positioning workflows (including RTK base/rover configurations).

• Multi-constellation support: GPS, GLONASS, Galileo, BeiDou, QZSS, and IRNSS (NAVIC)
• Correction-ready coverage: SBAS (WAAS/EGNOS/GAGAN/SDCM/SNAS) and L-band corrections
• Embedded integration: Dual-pin, dual-feed 4-pin configuration for board-level designs

Typical applications include Autonomous Driving, Unmanned Aerial Vehicles, Precision Positioning for Robotics, Precision Agriculture, and Timing Accuracy Synchronization.

A hybrid coupler is required for dual pin feed patch integrations (HC125.A).

Installation / Environmental

Antenna Installation Guide:
• Remove the hex nut from antenna before attaching to board (PCB).
• Reinstall the nut and torque to 4 in-lbs (45 N-cm) MAX.
• Solder the pins.

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin, Screw
Satellite Navigation: GNSS
Type: Combination
Dimensions: Ø60 x 10 mm
Weight: 45 g

GNSS (Passive, Dual Feed)

Frequency: 1160MHz - 1610MHz
GNSS Bands: L1/L2/L5/L6/L-Band
Feed Configuration: Dual pin, dual feed, 4-pin configuration
Mechanical Style: Patch
Polarity: RHCP
Impedance: 50
VSWR: 2:1
Gain (Max): 4
Termination Style: Pin

Download Datasheet PDF
