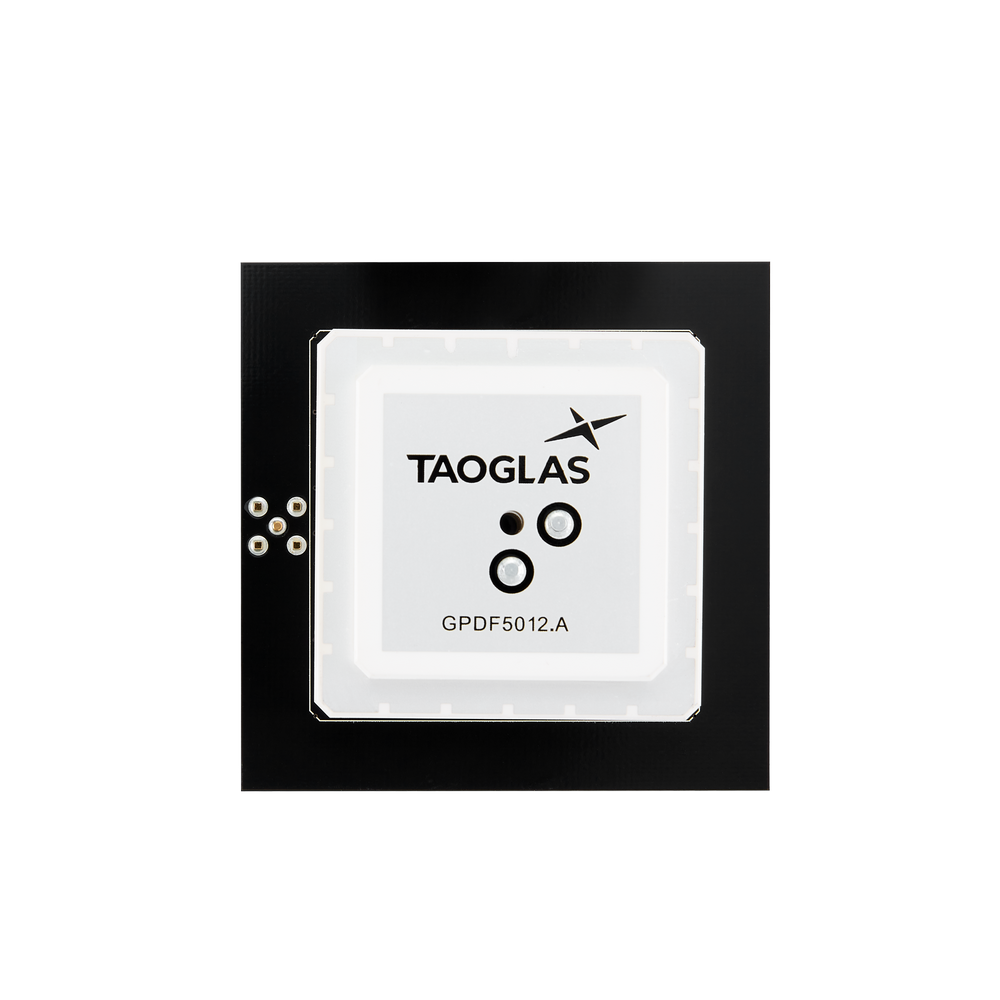

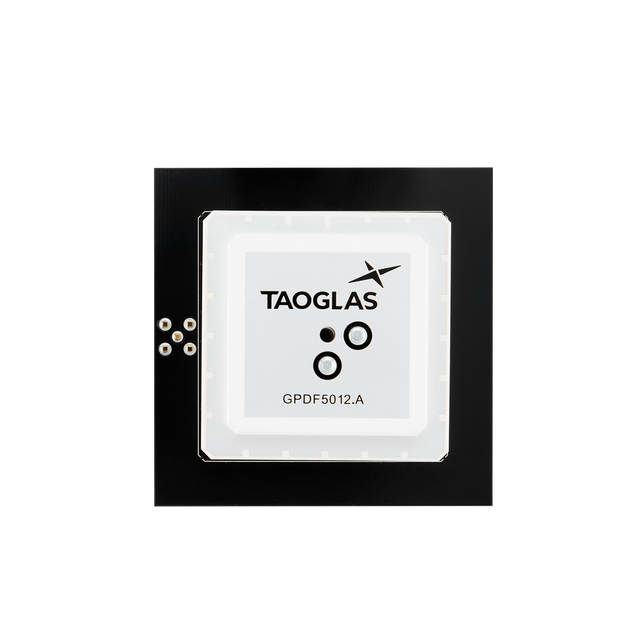

GPDFD5012.A Antenna High-Precision GNSS evaluation board for Autonomous Driving, Precision Positioning for Robotics, Precision Agriculture, Telematics & Container / Asset Tracking

This evaluation board is designed for rapid testing and integration support of a multiband high-precision GNSS stacked patch antenna solution. It is intended to help validate positioning performance across multiple GNSS constellations and bands in demanding applications where accuracy and stability matter.

• Dual-feed support: Dual pin, dual feed, 4-pin configuration
• Multi-constellation coverage: Supports major GNSS systems for high-precision positioning use cases
• Designed for high-precision workflows: Helps support stable tracking in challenging environments
• Compliance: RoHS and Reach compliant

Typical use cases include: Autonomous Driving, Precision Positioning for Robotics, Precision Agriculture, Telematics & Container / Asset Tracking, and Timing Accuracy Synchronization.

For dual-pin feed patch integrations, integration guidance references a hybrid coupler (HC125.A). An active version is also referenced: ADFGP.50A.07.0100C.

Technical Specifications

Antenna Technologies: Patch
Location: Internal
Satellite Navigation: GNSS
Type: Combination
For Use With/Related Products: GPDF5012.A
Technology: Evaluation Boards, GNSS
Dimensions: 70 x 70mm
Materials: Ceramic

GNSS (Dual Feed)

Frequency: 1176.45-1602 MHz
Standards: GPS (L1/L2/L5); IRNSS (L5); QZSS (L1/L2C/L5); Galileo (E1/E5a/E5b); GLONASS (G1/G2/G3); BeiDou (B1/B2a/B2b); SBAS (WAAS/EGNOS/GAGAN/SDCM/SNAS)
Feed Configuration: Dual pin, dual feed, 4-pin configuration

Download Datasheet PDF
