Description

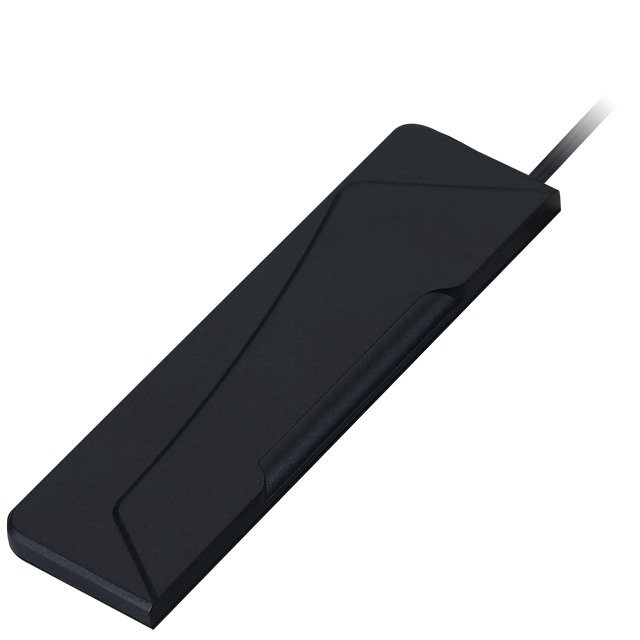

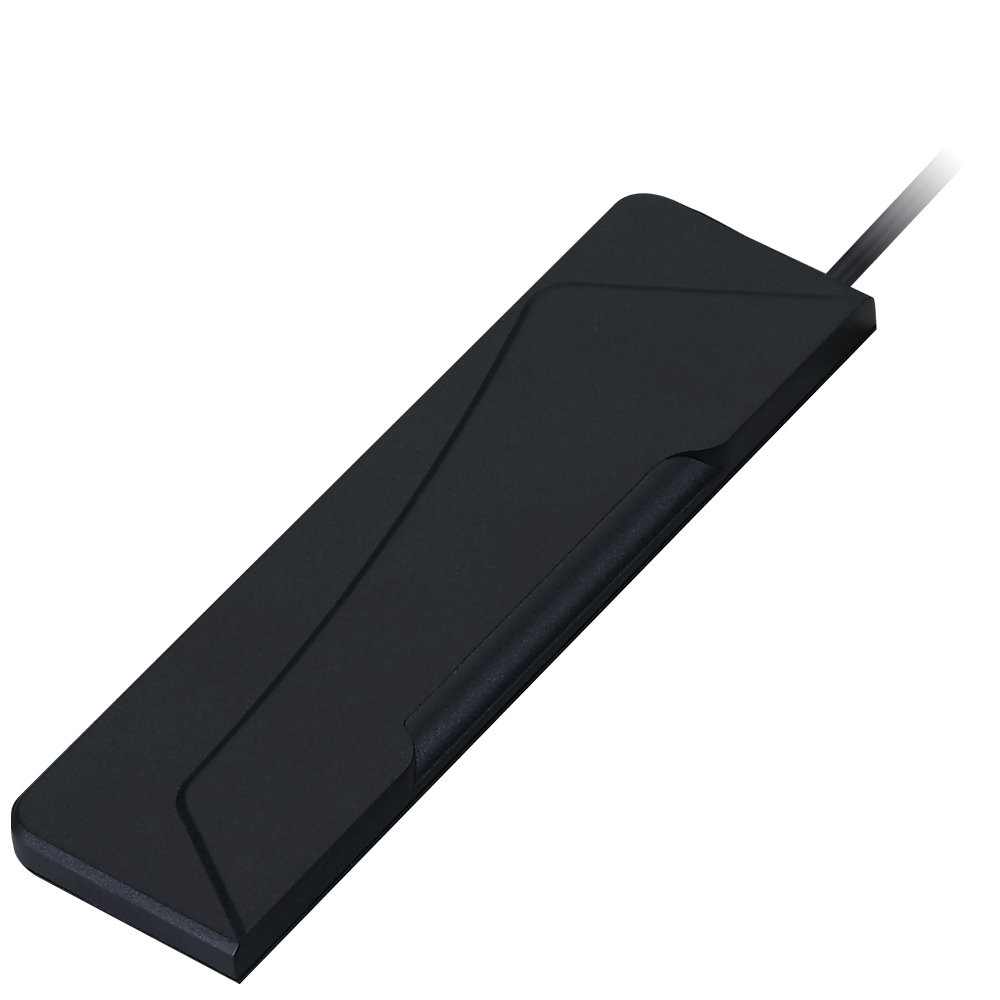

Phoenix is an ultra-wideband I-Bar cellular antenna designed for reliable worldwide 5G/4G coverage in a slim, low-profile format for discreet in-vehicle integration.
- Ultra-wideband performance: built to support sub-6GHz cellular operation with backward compatibility for legacy networks.
- Consistent connectivity: omnidirectional radiation characteristics help maintain stable reception and transmission across supported bands.
- Automotive-grade focus: manufactured and tested in a TS16949 first-tier automotive approved facility with PPAP design, reliability, and quality audits.
Typical use cases include telematics, transportation, and gateways/routers.
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 100cm
- Cable Type: RG-174
Installation / Environmental
This antenna is designed to be mounted on glass or plastic (not on metal). It comes with strong 3M double-sided adhesive for a permanent and secure fix to your vehicle interior. The antenna is UV Resistant.
Customized cable length and connectors are available, contact your regional Customer Support Team for more information.
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
Mounting: Adhesive Mount
Type: Single
Frequency: 600MHz - 3500MHz
Impedance: 50Ω
Polarization: Linear
VSWR: 2:1
Gain (Max): 2.95
Dimensions: 105mm*30*7.7mm
Weight: 50g
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: RG-174
