GSA.8827R.A.101111 Antenna External Low-Profile Ultra-Wideband 4G/LTE, GNSS adhesive Phoenix I-Bar SMA-M 100cm RG-174 for Automotive, Aftermarket, Telematics

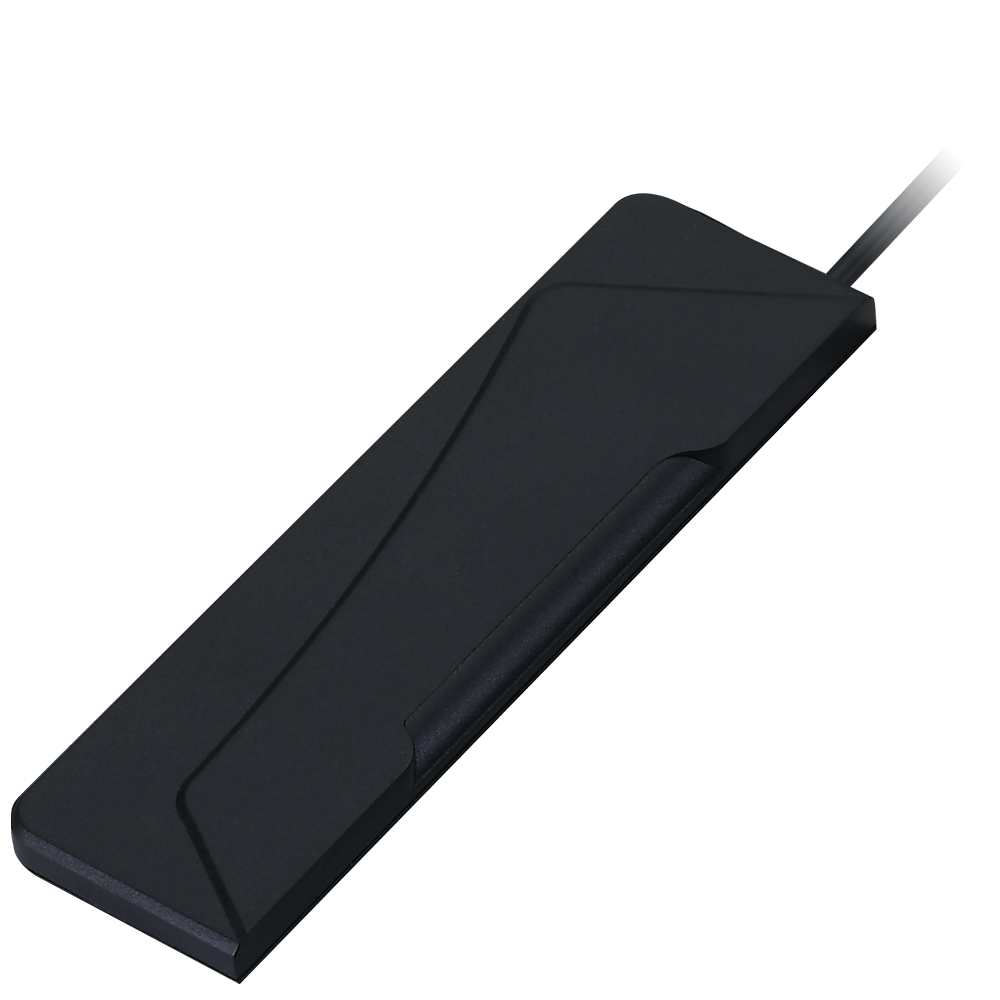

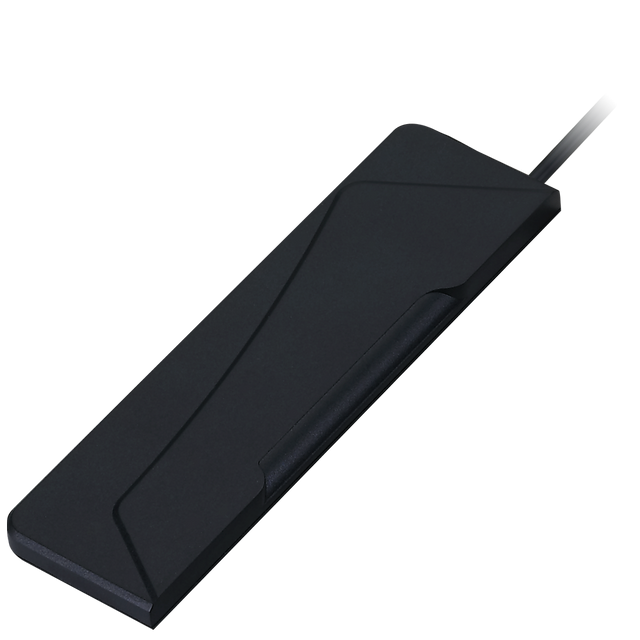

Phoenix 2G/3G/4G Wideband I–Bar Antenna

This ultra-wideband, high-efficiency I-bar antenna is designed to provide reliable cellular connectivity across global 4G/3G/2G networks, with a slim-line, low-profile form factor suited to covert in-vehicle installation. Its omni-directional performance helps maintain consistent reception and transmission across supported bands.

Designed for installation on glass or plastic (not metal), the antenna uses a strong double-sided adhesive for a secure, permanent interior fit. It also supports AntD antenna diagnostic technology, enabling compatible cellular modules and reference circuits to detect common antenna fault conditions such as open or short connections.

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 100cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Cellular Technologies: 4G/LTE
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: 105mm*30mm*7.7mm
Weight: 36g

4G/3G/2G Cellular + GPS

Frequency: 698-960 MHz, 1575.42 MHz, 1710-2700 MHz, 3400-3600 MHz
Standards: LTE / GSM / CDMA / DCS / PCS / WCDMA / UMTS / HSDPA / GPRS / EDGE / GPS
Impedance: 50Ω
Polarization: Linear
VSWR: 2:1
Gain (Max): 3.25 dBi
Input Power: 50 W
Integrated Resistor: Shunt 15K Ohm to Ground
Connector Type: SMA-M
Cable Length: 100cm
Cable Type: RG-174
