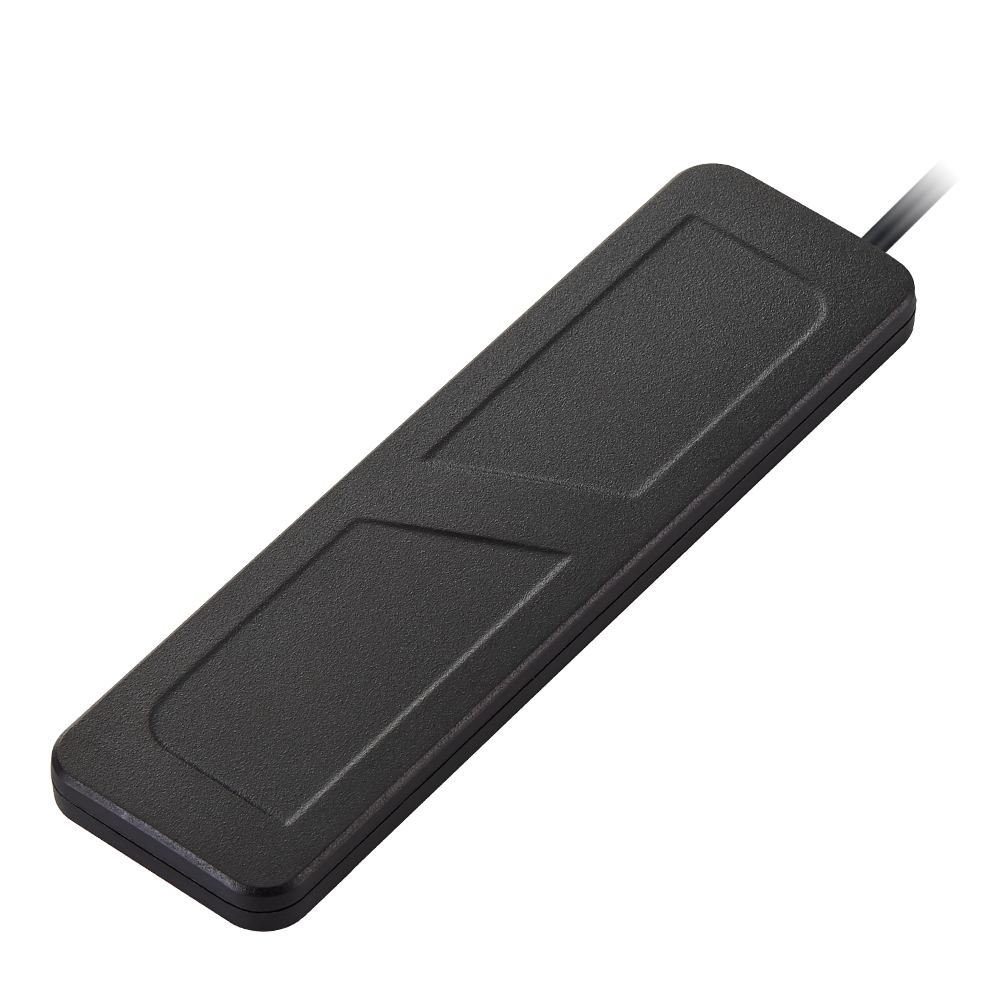

GSA.8835.A.101111 Antenna External 5G, 4G/LTE adhesive mount Phoenix II SMA-M 100cm IP68 for Transportation, Agriculture, Autonomous Vehicles/Robotics, Devices operating on Non-Terrestrial Networks (NTN)

Phoenix II is a fully waterproof external adhesive-mount antenna engineered for wideband cellular coverage in demanding environments. Its low-profile design is ideal where installation space is limited, while still delivering strong efficiency and gain across global cellular bands.

• Wideband coverage: 600–6000MHz operation for broad 5G/4G support with 3G/2G fallback
• NTN-ready: supports bands n255, n256 and B23 for Non-Terrestrial Network use cases
• Rugged enclosure: IP68-rated for harsh outdoor/industrial conditions (test: submerged at 1m depth for 1 hour)
• Simple mounting: pre-applied high-strength adhesive for mounting on glass or plastic

Typical applications include: Transportation, Agriculture, Autonomous Vehicles/Robotics, and devices operating on Non-Terrestrial Networks (NTN).

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 100cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: External
Mounting: Adhesive Mount
Type: Single
IP Rating: IP68
Dimensions: 105 x 30 x 7.9mm
Weight: 35g

5G/4G (Cellular)

Frequency: 600MHz - 6000MHz
Standards: 5G/4G with 3G/2G fallback; NTN Bands B23, n256 and n255
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
VSWR: <2
Peak Gain (Max): 4.12 dBi
Connector Type: SMA Male Straight
Cable Length: 100cm
Cable Type: RG-174
