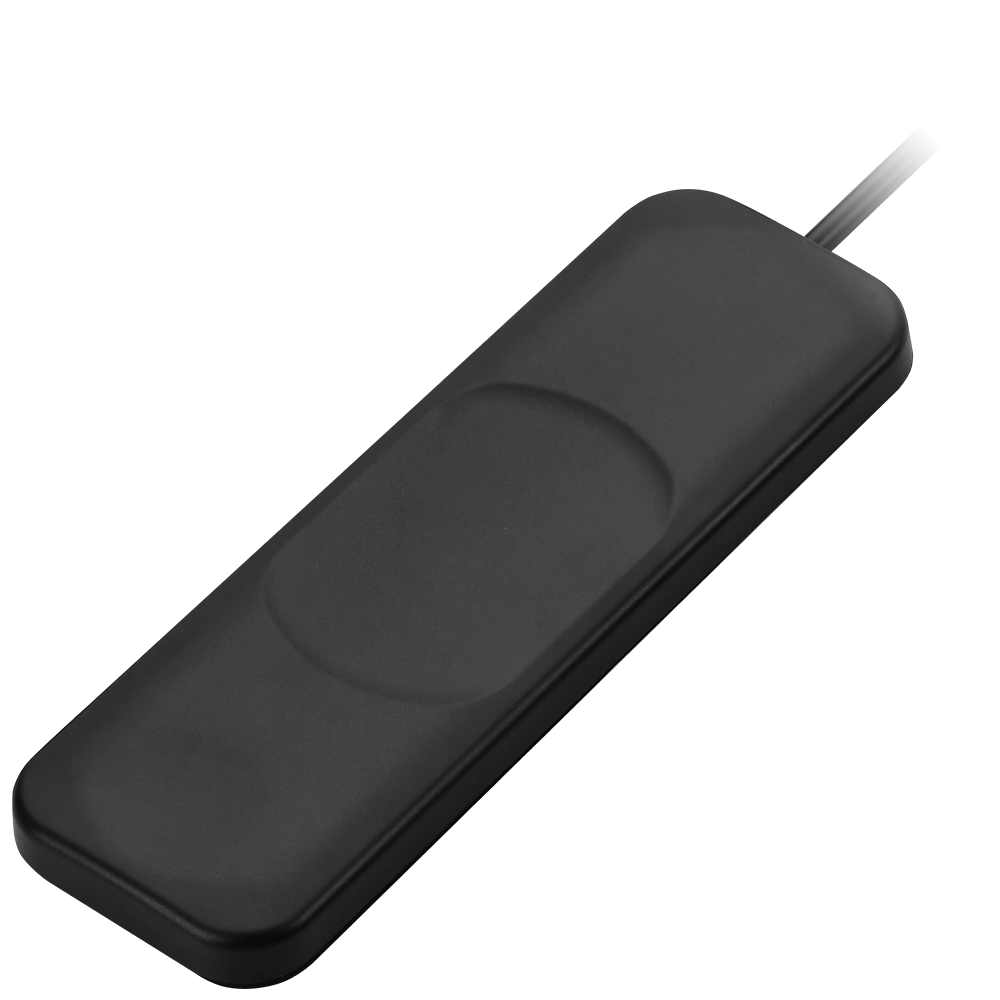

GSA.8841.A.105111 Antenna External Wideband 5G, 4G/LTE, Wi-Fi, GNSS adhesive mount I-Bar SMA-M 100cm for Automotive, Telematics, Public Transportation, E911

Adhesive Mount Antenna for Automotive and Telematics Applications

This low-profile I-Bar adhesive-mount antenna is designed for mounting on glass and plastic, delivering wideband coverage for cellular connectivity while also supporting Wi-Fi and GNSS (GPS/GALILEO) use cases such as E911. It is built to provide reliable, stable omnidirectional performance across its supported spectrum, making it well-suited for vehicle and telematics deployments.

• External adhesive-mount solution for glass and plastic installations
• Wideband support for modern cellular connectivity with backward compatibility
• Supports Wi-Fi and GNSS (GPS/GALILEO) for multi-function connected devices
• Designed for dependable performance in automotive and telematics environments

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 100cm
• Cable Type: TGC-200

Technical Specifications

Operating Temperature: -40 C to 85 C
Cellular Technologies: 5G
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, ISM
Type: Single
Dimensions: 176*59*11.6mm
Weight: 127g

5G/4G, Wi-Fi, GNSS

Frequency: 700MHz - 6000MHz
Standards: LTE/GSM/CDMA/PCS/DCS/UMTS/WCDMA/HSDPA/GPRS/EDGE/GPS/GALILEO/Wi-Fi AE
Impedance: 50 9
VSWR: 2:1
Gain (Max): 2.94
Polarization: Linear
Polarity: RHCP
Radiation Pattern: Omni
Input Power: 5 W
Connector Type: SMA Male
Cable Length: 100cm
Cable Type: TGC-200

Download Datasheet PDF
