Description

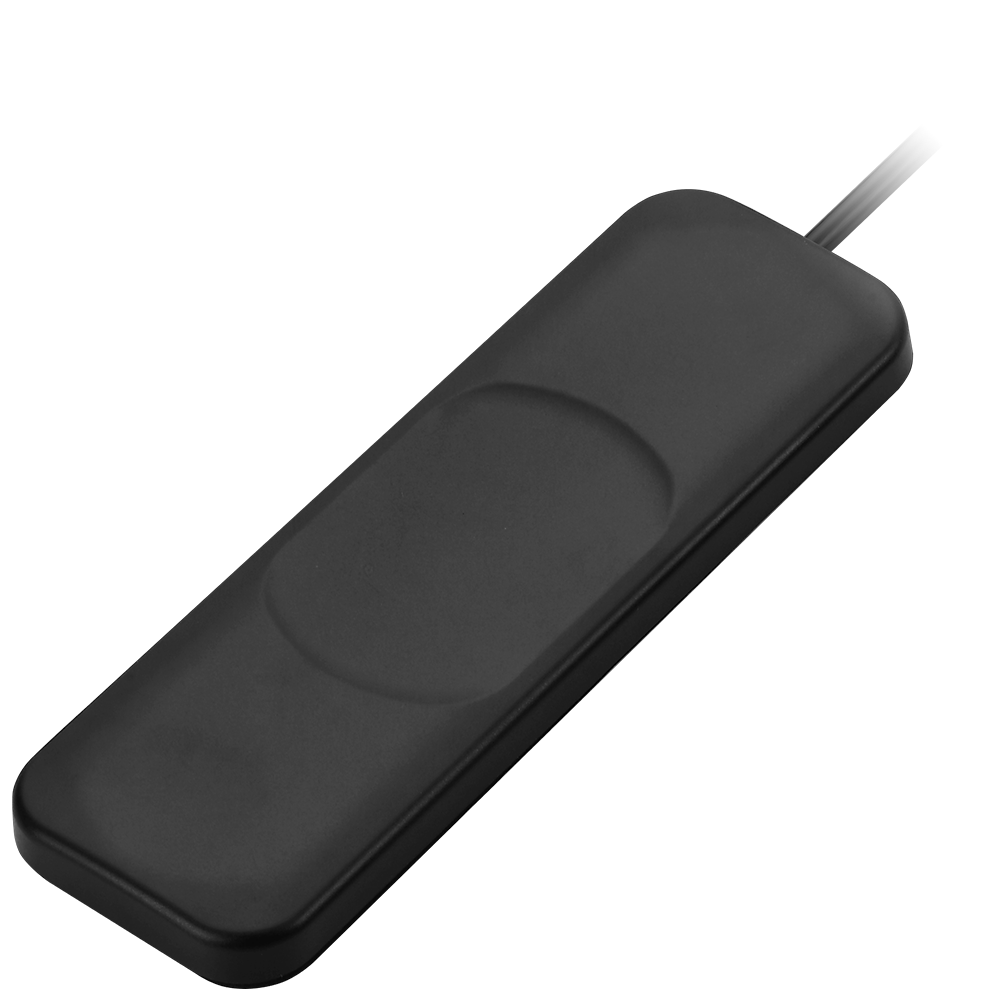

This wideband dipole I-Bar antenna is designed to cover cellular and Wi-Fi/ISM working frequencies across a broad spectrum, helping deliver reliable throughput and stable omnidirectional performance for demanding devices.
- Wideband coverage: supports operation across major cellular and Wi-Fi/ISM bands
- Optimized for high-throughput links: suitable for data-heavy use cases such as streaming and high-capacity networks
- Low-profile adhesive format: compact form factor for easy external placement
- Omnidirectional radiation pattern: stable performance across bands
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 100cm
- Cable Type: TGC-200
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, ISM
Type: Single
Cellular / Wi-Fi / ISM
Frequency: 450-470 MHz, 698-960 MHz, 1710-2700 MHz, 4900-5850 MHz (450-6000 MHz)
Standards: LTE / GSM / CDMA / DCS / PCS / WCDMA / UMTS / HSDPA / GPRS / EDGE / Wi-Fi
Impedance: 50 Ω
VSWR: <2
Polarization: Linear
Radiation Pattern: Omni
Input Power: 5 W
Gain (Max): 4.09 dBi
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: TGC-200
Dimensions: 176*59*14mm
Weight: 127g
