Description

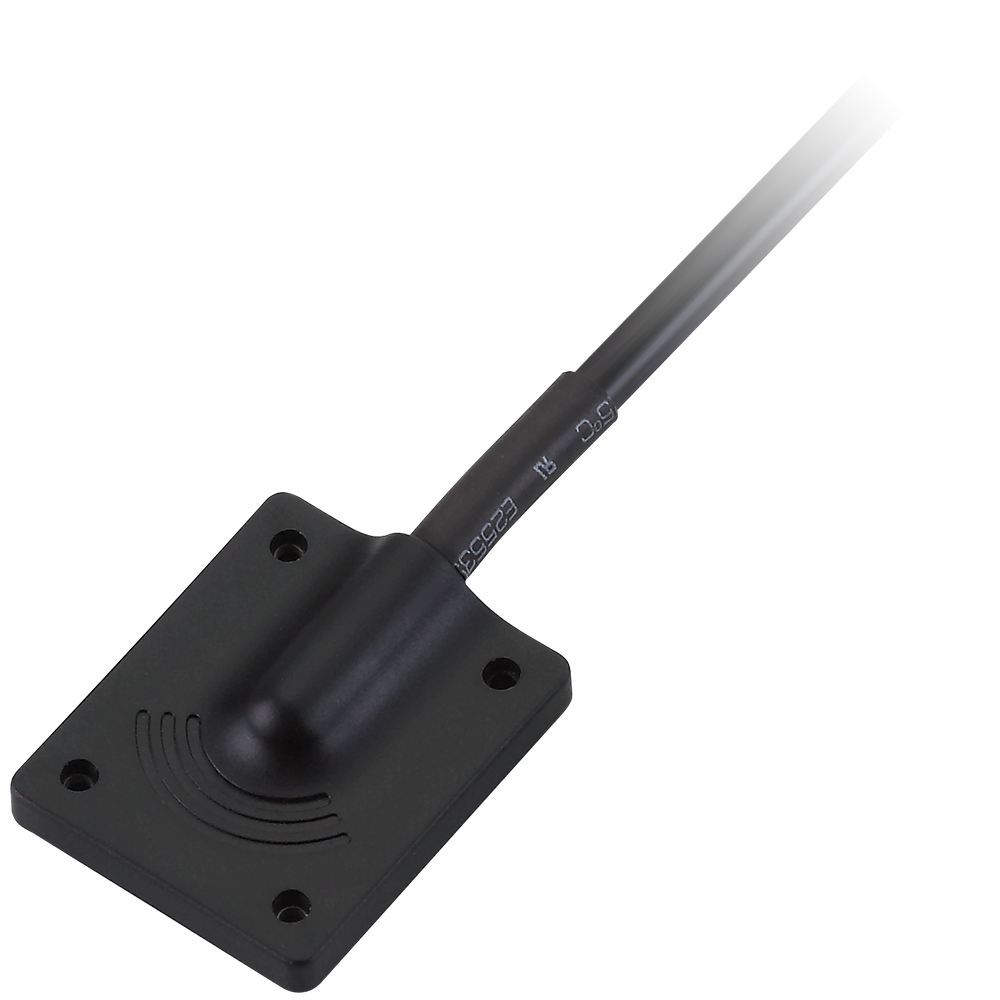

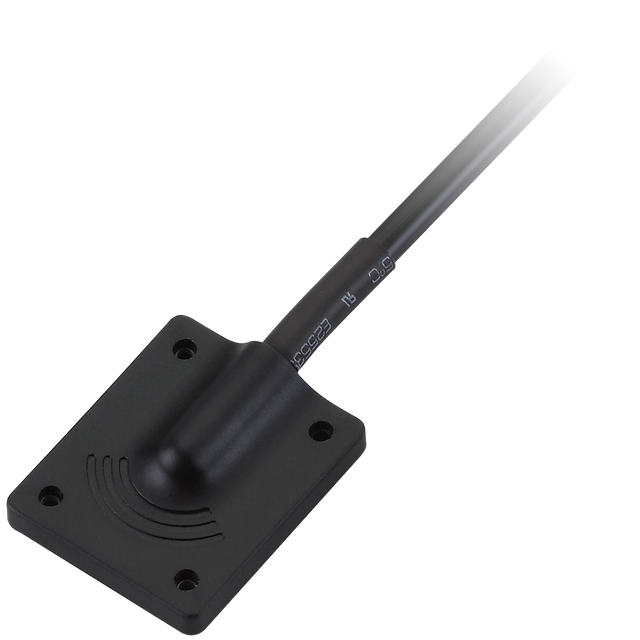

This compact external DSRC antenna is designed for 5.9GHz V2X links where space is limited. Its low-profile enclosure and adhesive mounting make it easy to integrate on plastic or glass surfaces, while the sealed design supports reliable operation in harsh outdoor environments.
- Designed for DSRC / C-V2X: optimized for short-range, low-latency vehicle communication
- Compact form factor: suitable where larger antennas cannot be installed
- Adhesive mounting: simple integration on plastic or glass surfaces
- Rugged for outdoor use: IP67-rated enclosure
Connector & Cable
- Connector Type: SMA(M)
- Cable Length: 100cm
- Cable Type: CFD200
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: External
Mounting: Adhesive Mount
Type: Single
IP Rating: IP67
Dimensions: 36*30*10mm
Weight: 42g
DSRC (C-V2X)
Frequency: 5850MHz to 5925MHz
Impedance: 50
Polarization: Linear
VSWR: <2
Return loss: <-10
Radiation Pattern: Omnidirectional
Input Power: 5W
Gain (Max): 2.64
Peak Gain (dBi): 4.14 dBi on glass, 3.24 dBi on 2mm plastic
Connector Type: SMA(M) Straight
Cable Length: 100cm
Cable Type: TGC-200 / CFD200
