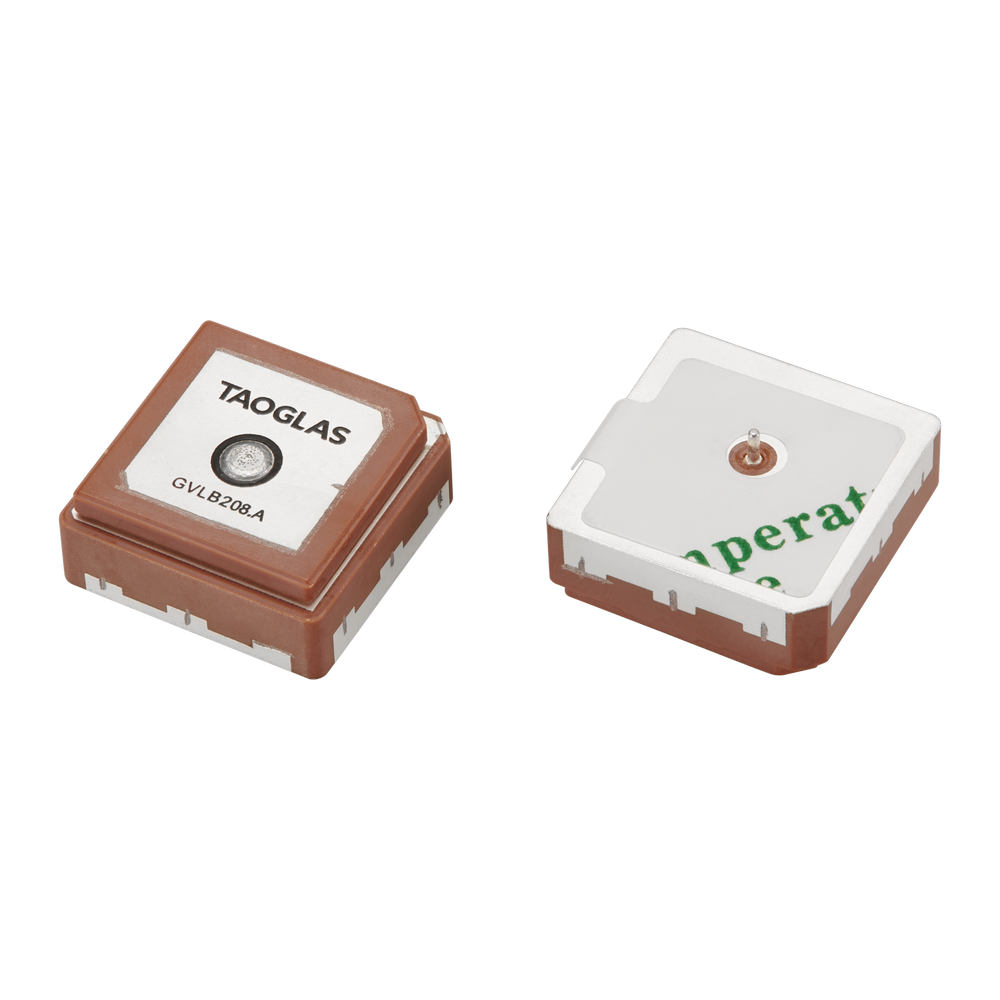

GVLB208.A Antenna GNSS pin mount stacked patch

Super-compact multiband GNSS patch antenna designed for next-generation multi-frequency positioning in a 20 × 20 mm footprint.

• Single-feed stacked patch design for straightforward integration into compact devices
• Covers GNSS L1 & L5 bands to support improved positioning accuracy and multipath performance
• RHCP polarization for robust satellite signal reception
• Pin-mount integration for direct mounting to host PCBs
• RoHS & REACH compliant

Typical applications include:

• Autonomous Vehicles
• Precision Agriculture
• Surveying and Mapping
• UAVs and Drones
• Timing and Synchronization
• Asset Tracking and Security
• Wearables and Personal Navigation Devices

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive
Satellite Navigation: GNSS
Type: Single
Dimensions: 20mm x 20mm x 8.8mm
Weight: 16g
Material: Ceramic

GNSS (Passive)

Frequency: 1176.45MHz - 1575.42MHz
GNSS Bands: L1/L5
Standards: GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, SBAS
Polarization: RHCP
Impedance: 50 Ω
VSWR: 2:01
Efficiency (%): 49.8 (1176.45MHz), 50.2 (1575.42MHz)
Average Gain (dB): -3.4 (1176.45MHz), -3.2 (1575.42MHz)
Peak Gain (dBi): 0.4 (1176.45MHz), 1.5 (1575.42MHz)
Axial Ratio (dB): 4.1 (1176.45MHz), 4.14 (1575.42MHz)
