Description

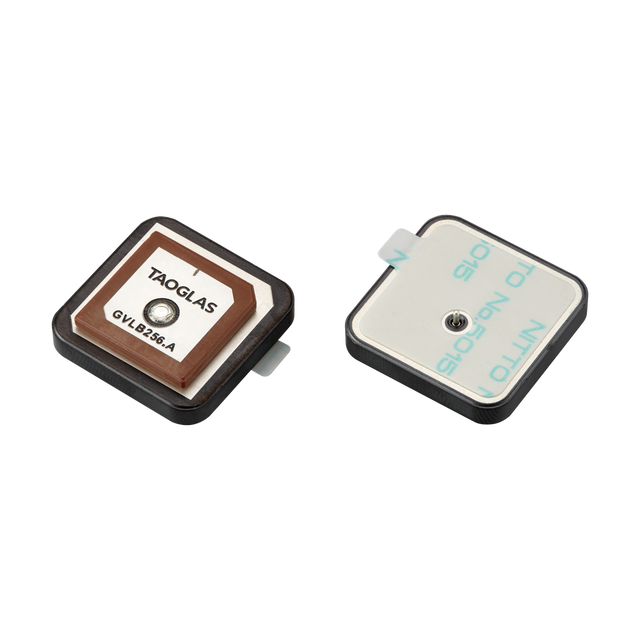

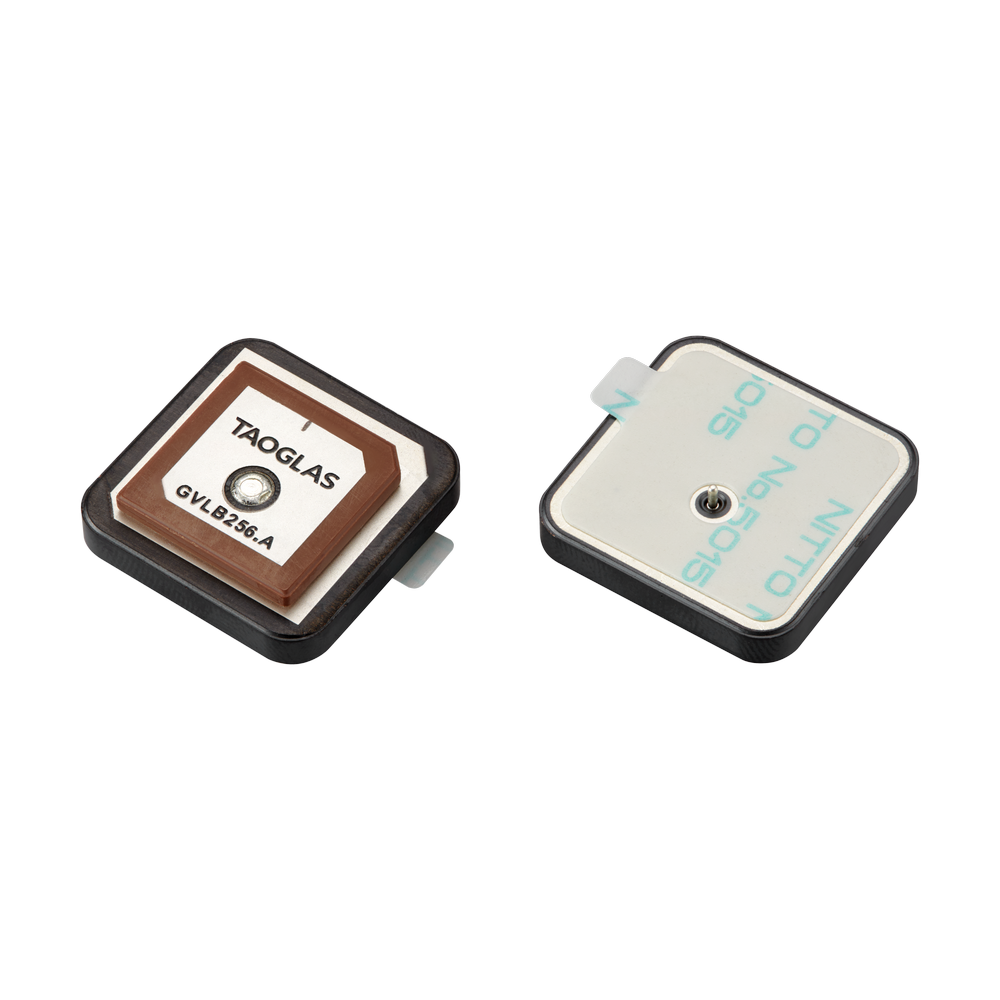

This compact dual-band GNSS stacked patch antenna is designed for high-precision positioning and fast acquisition in space-constrained devices. Its wideband performance supports modern L1/L5 GNSS receivers across multiple satellite constellations, making it well-suited for embedded navigation and timing solutions.
- Dual-band GNSS support: Enables improved accuracy and robustness compared to single-band solutions
- Compact stacked patch design: Helps achieve strong performance in a small footprint
- Multi-constellation coverage: Supports GPS, Galileo, GLONASS, and BeiDou bands listed on the product page
Typical applications include:
- Automotive Navigation Systems
- Transportation
- Drones & UAVs
- Agriculture
- Industrial IoT Devices
- Timing & Synchronization
Installation / Environmental
The following is an example on how to integrate the GVLB256.A into a design. The GVLB256.A has one pin which is used for the RF Feed. A minimum of 70x70mm ground plane is recommended to ensure optimal performance.
Technical Specifications
Operating Temperature: -40 C to 105 C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive, SMD/SMT
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø25 x 6 mm
Weight: 21g
GNSS (Passive)
Frequency: 1176.45MHz - 1603MHz
GNSS Bands: L1/L5
Standards: GPS L1 & L5; BeiDou B1/B2a; Galileo E1 & E5a; GLONASS G1
Impedance: 50
Polarization: RHCP
VSWR (max.): 3:1
Gain (dBi): 1.18 (1176.45), 1.71 (1561), 2.09 (1575.42), 2.61 (1603)
Efficiency (%): 56.01 (1176.45), 50.89 (1561), 53.37 (1575.42), 60.44 (1603)
Mechanical Style: Patch
Antenna Type: Patch & Pin
Ground Plane: 70 x 70mm
