Description

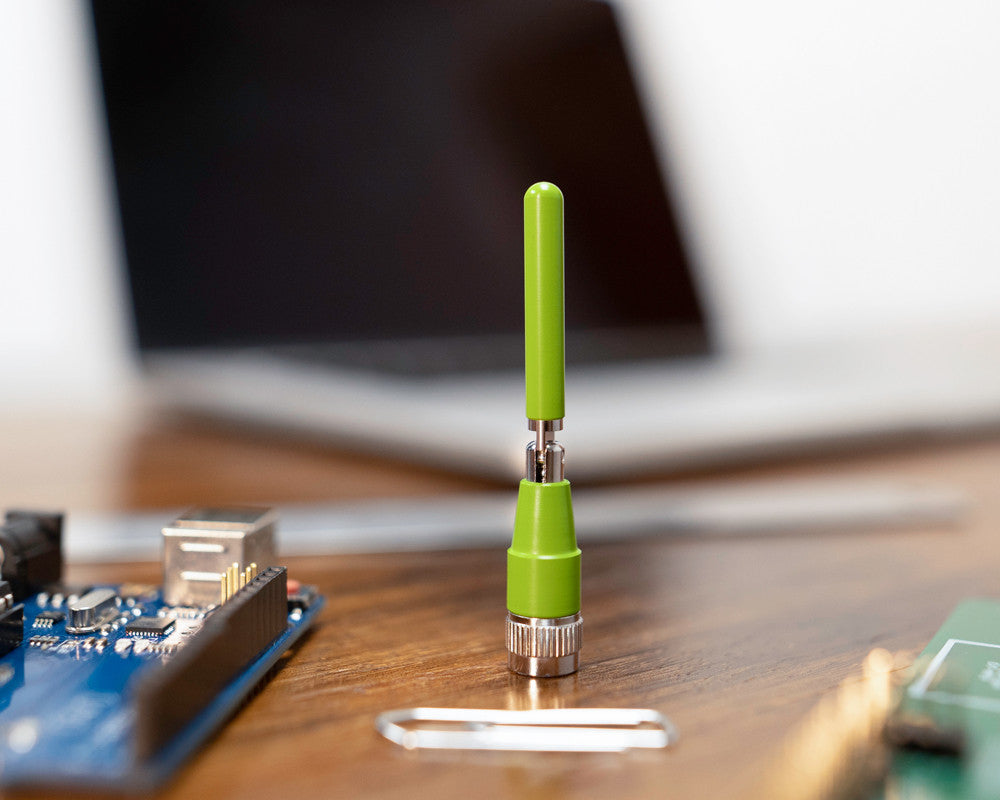

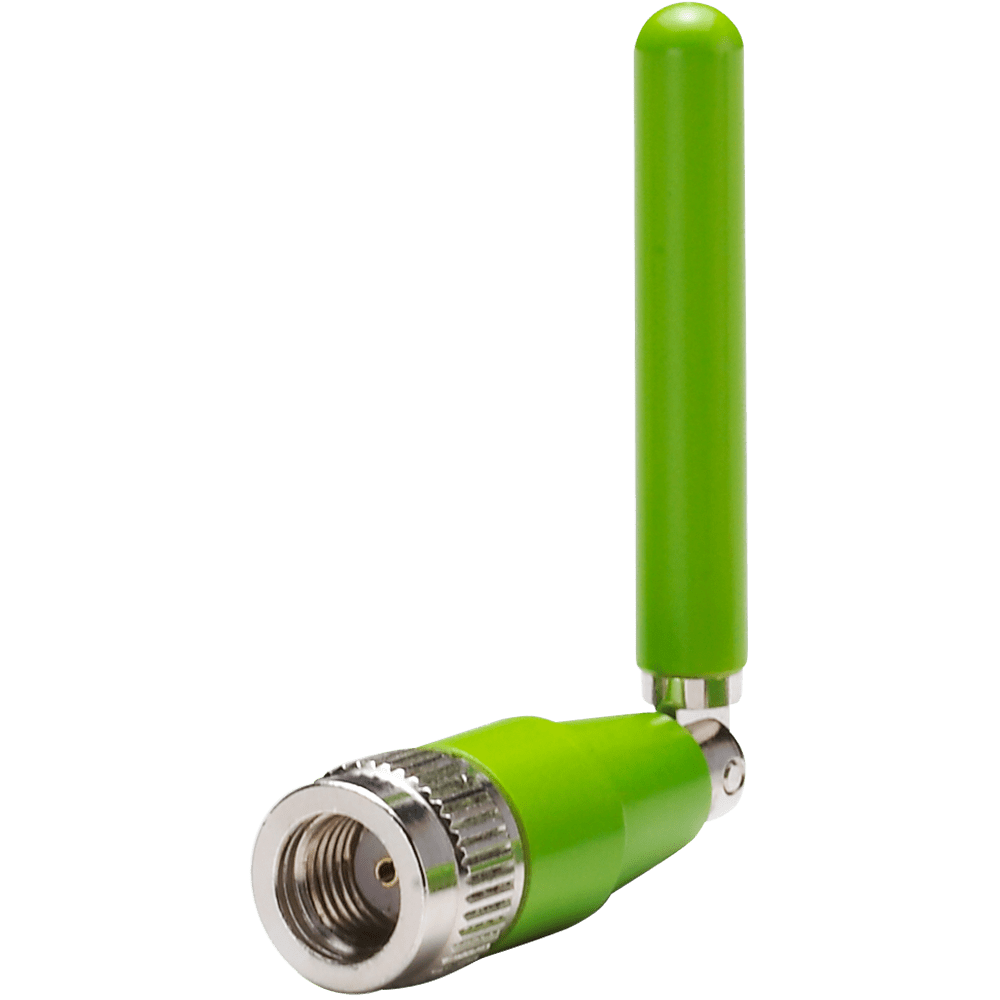

High-efficiency hinged, rotatable terminal antenna for modern Wi-Fi devices. This compact monopole antenna is designed to maintain strong, wide-band performance even when an ideal ground-plane connection is not available. The hinged, rotatable design helps optimize reception by allowing flexible positioning on the host device.
- Wideband Wi-Fi coverage: supports 2.4 GHz and 5 GHz bands and extends up to 7.125 GHz for Wi-Fi 6 frequencies
- Compact form factor: suited to space-constrained access points, devices, and routers
- Adjustable orientation: rotatable hinge for improved real-world placement and reception
Connector & Cable
- Connector Type: RP-SMA(M)
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Location: External
Mounting: Terminal
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
Impedance: 50Ω
VSWR: <2
Polarity: Linear
Connector Polarity: Reverse
Dimensions: 62.3mm Ø10mm
Weight: 6g
Gain (Max): 6.4
Wi-Fi / Bluetooth
Frequency: 2400~2500 MHz; 5150~5850 MHz; 5925~7125 MHz
Wi-Fi Bands: 2.4/5.8/7.125GHz
Polarization: Linear
Radiation Pattern: Omnidirectional
Max Power Input: 10W
Connector Type: RP-SMA(M)
