Description

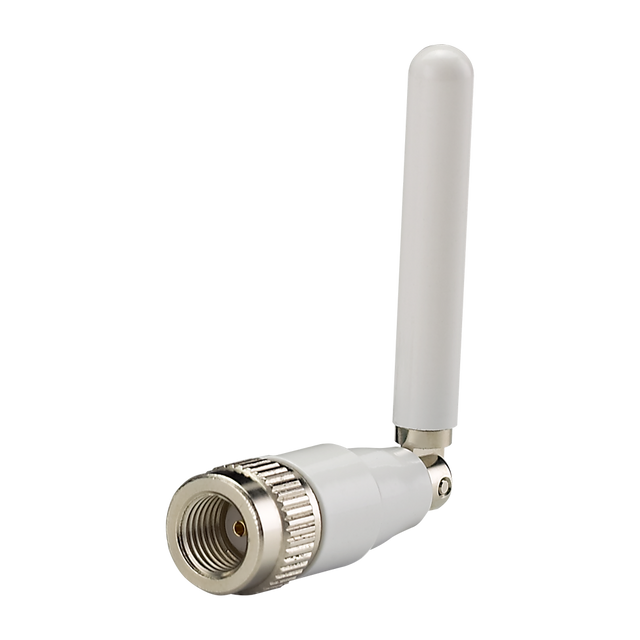

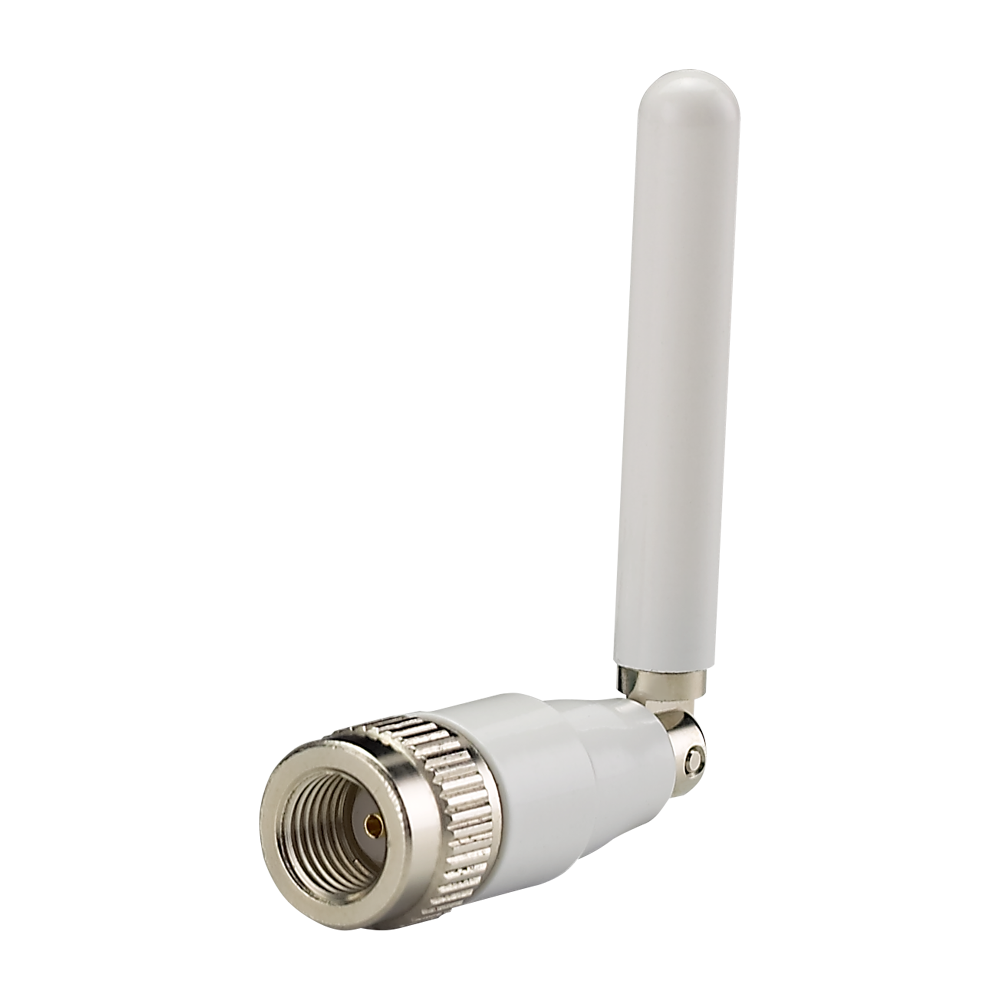

This compact terminal-mount monopole antenna provides wideband coverage across the 2.4GHz and 5GHz/6GHz Wi-Fi bands up to 7.125GHz. Its hinged, rotatable design allows the antenna to be positioned for improved signal reception in space-constrained enclosures.
Designed for direct mounting to the device connector, it performs best when connected to the device ground plane or mounted externally on a metal housing, while still maintaining strong efficiency even in installations without an ideal ground reference.
Typical uses include: routers, modems, Wi-Fi application points, and other WLAN/short-range wireless devices requiring broad Wi-Fi band coverage.
Connector & Cable
- Connector Type: RP-SMA(M)
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Location: External
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
Dimensions: 62.3mm Ø10mm
Weight: 6g
Wi-Fi (2.4/5.8/7.125GHz)
Frequency: 2400~2500 MHz, 5150~5850 MHz, 5925~7125 MHz
Standards: Wi-Fi / WLAN / 802.11a/b/g/n/ac
Impedance: 50Ω
Polarization: Linear
VSWR: <2
Radiation Pattern: Omnidirectional
Max Input Power: 10W
Gain (Max): 6.4 dBi
Connector Type: RP-SMA(M)
Connector Polarity: Reverse
