Description
Monopole antenna for Wi-Fi, WLAN, ZigBee, and Bluetooth

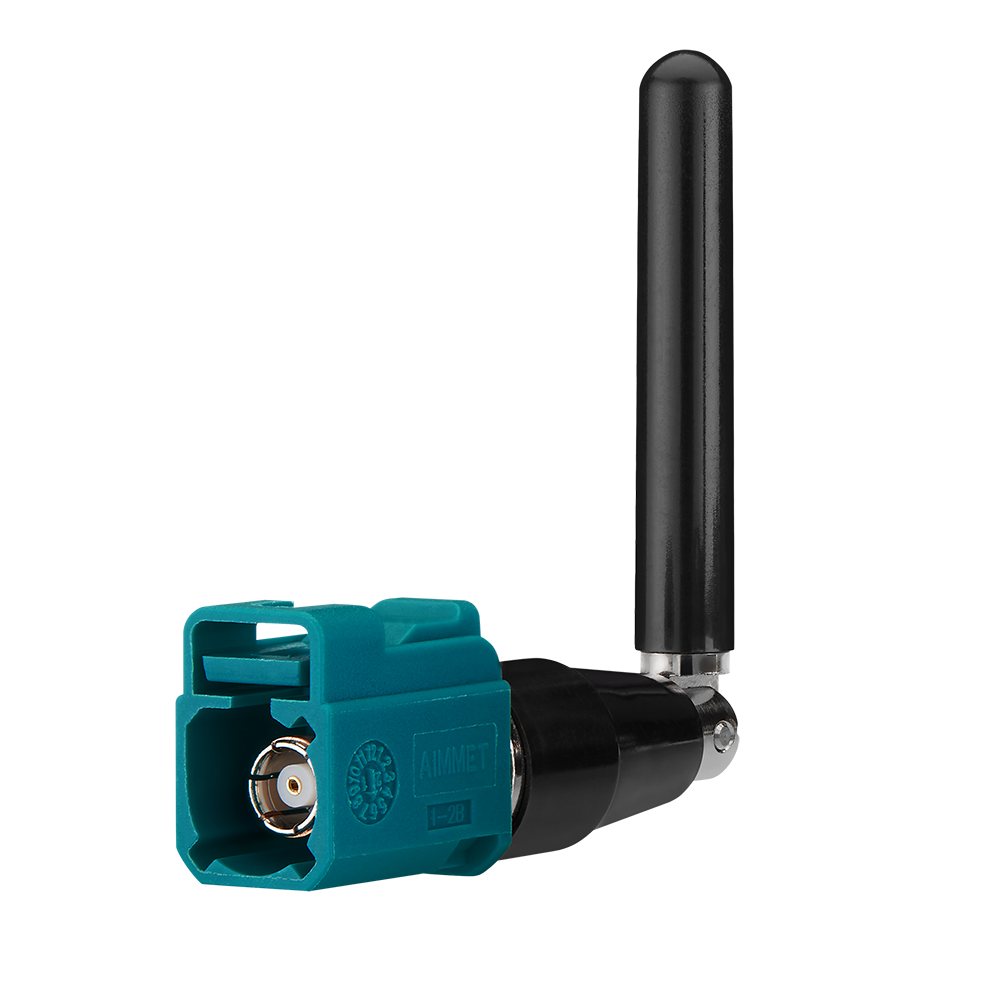

This dual-band hinged, rotatable terminal-mount monopole antenna is designed for compact devices that need reliable short-range wireless connectivity. It is optimized to work best when connected directly to the device ground plane or mounted to the outside of a metal housing, while still maintaining strong performance even without a ground plane.
- Wide Wi-Fi coverage: supports 2.4 GHz and 5 GHz, plus 6 GHz band coverage up to 7.125 GHz
- Compact form factor: suited to space-constrained device designs

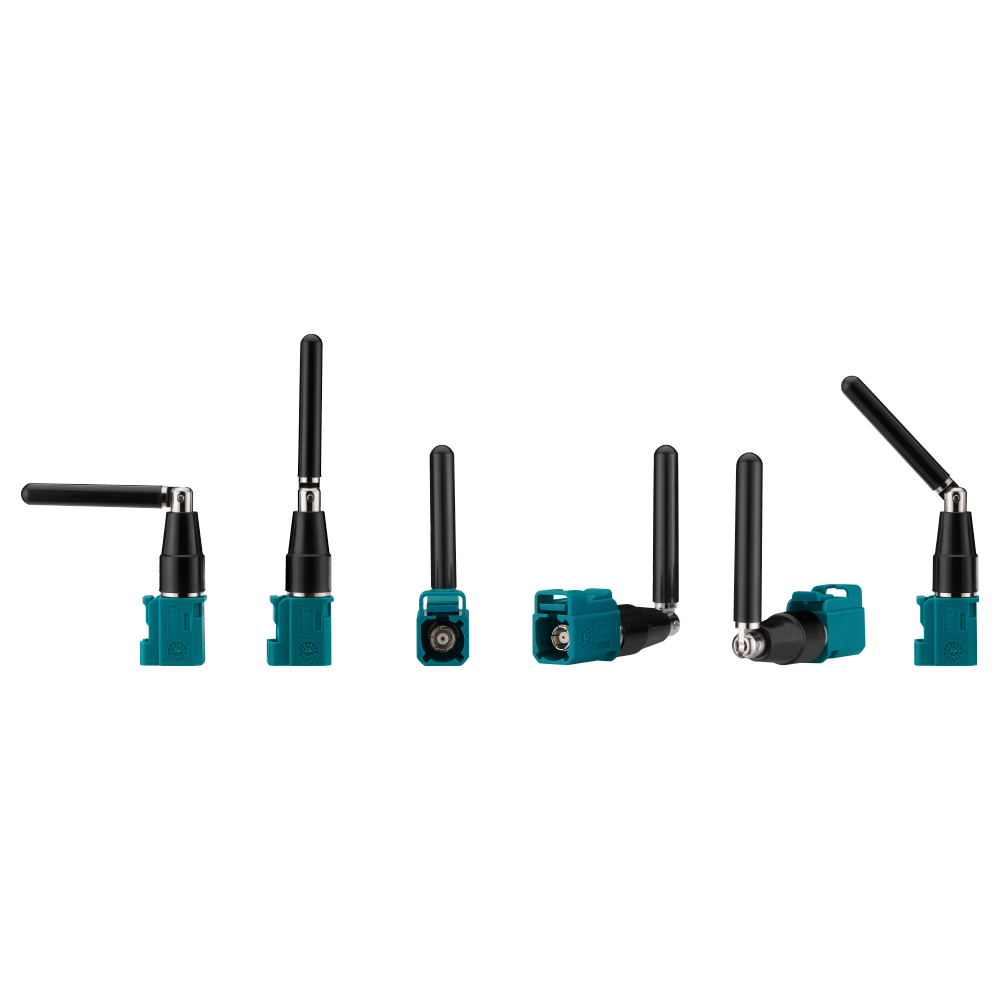

- Mechanical flexibility: can rotate 360 degrees and articulate through 180 degrees for easier positioning
- Regulatory-friendly design: intended to help meet common module peak-gain requirements depending on integration
Also available as a standard SMA(M) version (GW.05).
Connector & Cable
- Connector Type: FAKRA Code Z Water Blue SMB(F) (Jack)
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Location: External
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
Frequency: 2400~2500 MHz, 5150~5850 MHz, 5925~7125 MHz
Wi-Fi Bands: 2.4/5.8/7.125GHz
Impedance: 50Ω
Polarization: Linear
VSWR: <2
Gain (Max): 2.3
Dimensions: 69.6*Ø10mm
Weight: 8g
Connector Type: FAKRA
