Description

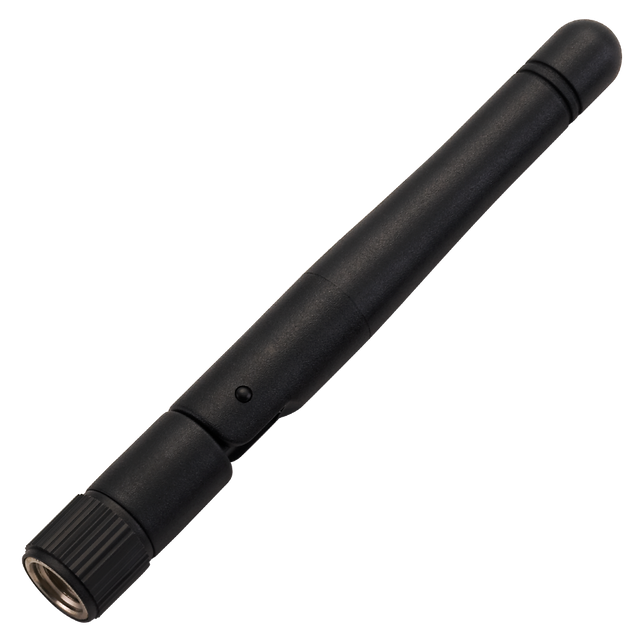

GW.11.A153 is a compact 2.4 GHz terminal-mount dipole antenna designed for reliable short-range wireless connectivity. Its rugged housing is built for robust handling, and the hinged design allows the antenna to be rotated for easier placement and improved orientation within a device setup.
- 2.4 GHz coverage for Bluetooth and Wireless LAN use
- Omni-directional radiation to help maintain stable links in changing device orientations
- Hinged, rotatable design for flexible positioning
- Durable housing for improved environmental reliability
The connector mount is fully customizable. Also available in white.
Connector & Cable
- Connector Type: RP-SMA-Male Connector
Technical Specifications
Operating Temperature: -40 C ~ + 85 C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount, Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
Dimensions: Ø10 x 84.4 mm
Weight: 7g
2.4GHz ISM (Wi-Fi/Bluetooth/ZigBee)
Frequency: 2400-2483.5 MHz
Standards: Bluetooth (2401-2480 MHz), Wi-Fi (2412-2462 MHz), ZigBee (2410-2480 MHz), 2.4GHz ISM (2400-2483.5 MHz)
Peak Gain (dBi): 2.3
Average Gain (dB): -0.88
Efficiency (%): 80%
Return Loss (dB): - 10 dB Maximum
VSWR: <2
Impedance (Ohm): 50 c6
Polarization: Linear Vertical
Radiation: Omni-directional
Power Handling: 1W
Connector Type: RP-SMA(M)
