Description

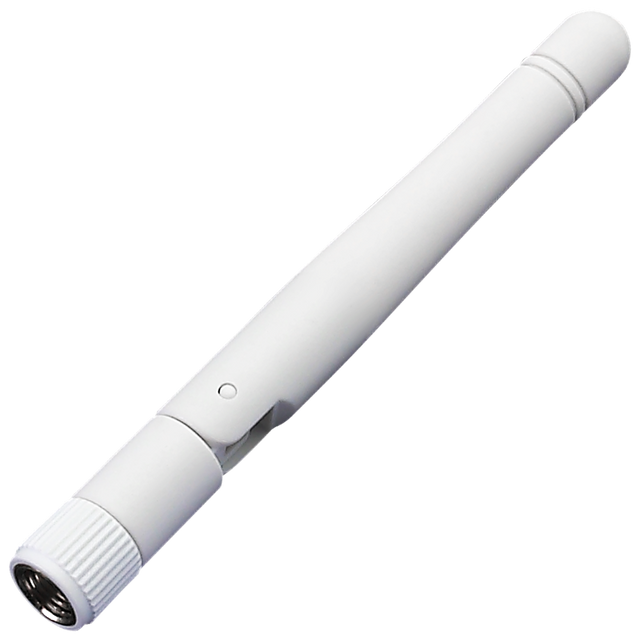

This compact 2.4GHz hinged dipole antenna is designed for reliable short-range wireless connectivity in space-constrained devices. Its omni-directional radiation pattern helps maintain consistent reception and transmission, while the durable TPE housing supports robust everyday handling.
- Optimized for 2.4GHz: Suitable for Wi-Fi and Bluetooth/ISM-band devices
- Hinged design: 90-degree articulation helps with positioning and clearance
- Durable enclosure: TPE housing for dependable long-term use
- Omni-directional performance: Designed to support consistent link quality
Connector & Cable
- Connector Type: RP-SMA Male (Reverse Polarity)
Technical Specifications
Operating Temperature: -40 C to +85 C
Antenna Technologies: Dipole
Location: External
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
Straight Length: 84mm
Weight: 7g
Wi-Fi/Bluetooth/ZigBee (2.4GHz ISM)
Frequency: 2400-2483.5 MHz
Standards: Wi-Fi, Bluetooth, ZigBee
Impedance: 50
9
VSWR: <2
Polarization: Linear Vertical
Radiation: Omni-directional
Peak Gain (dBi): 2.3
Average Gain (dBi): -0.88
Efficiency (%): 80%
Return Loss (dB): -10 dB Maximum
Power Handling: 1W
Connector Type: RP-SMA(M)
Cable Type: RG-178 Coaxial Cable
