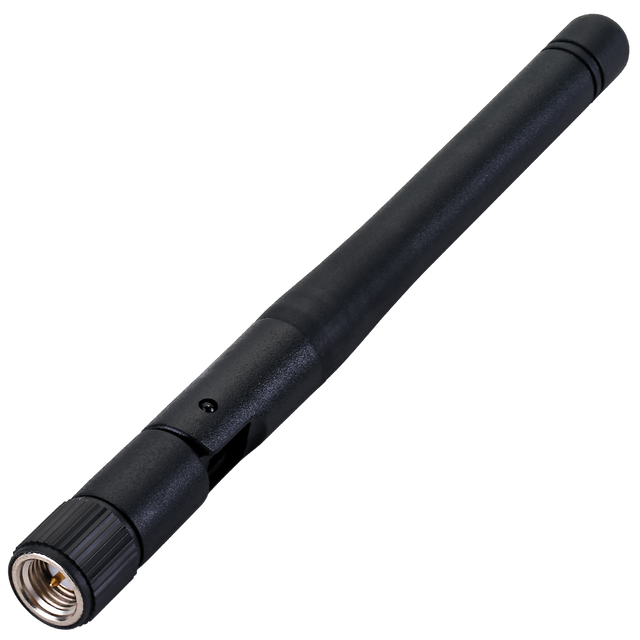

GW.15.2113 Antenna External Wi-Fi, ISM hinged terminal mount dipole SMA-M

This 2.4GHz external dipole antenna is designed for reliable short-range wireless performance in compact devices. The hinged design supports straight or 90° positioning to help optimize placement and maintain stable, omnidirectional coverage.

• Ideal for: 2.4GHz wireless applications such as Bluetooth and WLAN
• Durable housing: Robust TPU construction for dependable handling and environmental reliability
• Placement flexibility: Hinged design for easier device integration

Connector & Cable

• Connector Type: SMA-Male Connector

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Location: External
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
Antenna Length: 108.5 mm (Straight) / 87.5mm (Hinged)
Weight: 9g

Wi-Fi / Bluetooth (2.4 GHz)

Frequency: 2.4~2.5 GHz
Standards: Wi-Fi, Bluetooth
Peak Gain (Max): 2 dBi
VSWR: ≤ 1.8
Return Loss: ≥12dB
Polarization: Vertical
Impedance: 50 Ω
Radiation Pattern: Omni-directional
Power Handling: 10W
Connector Type: SMA (M)
