Description

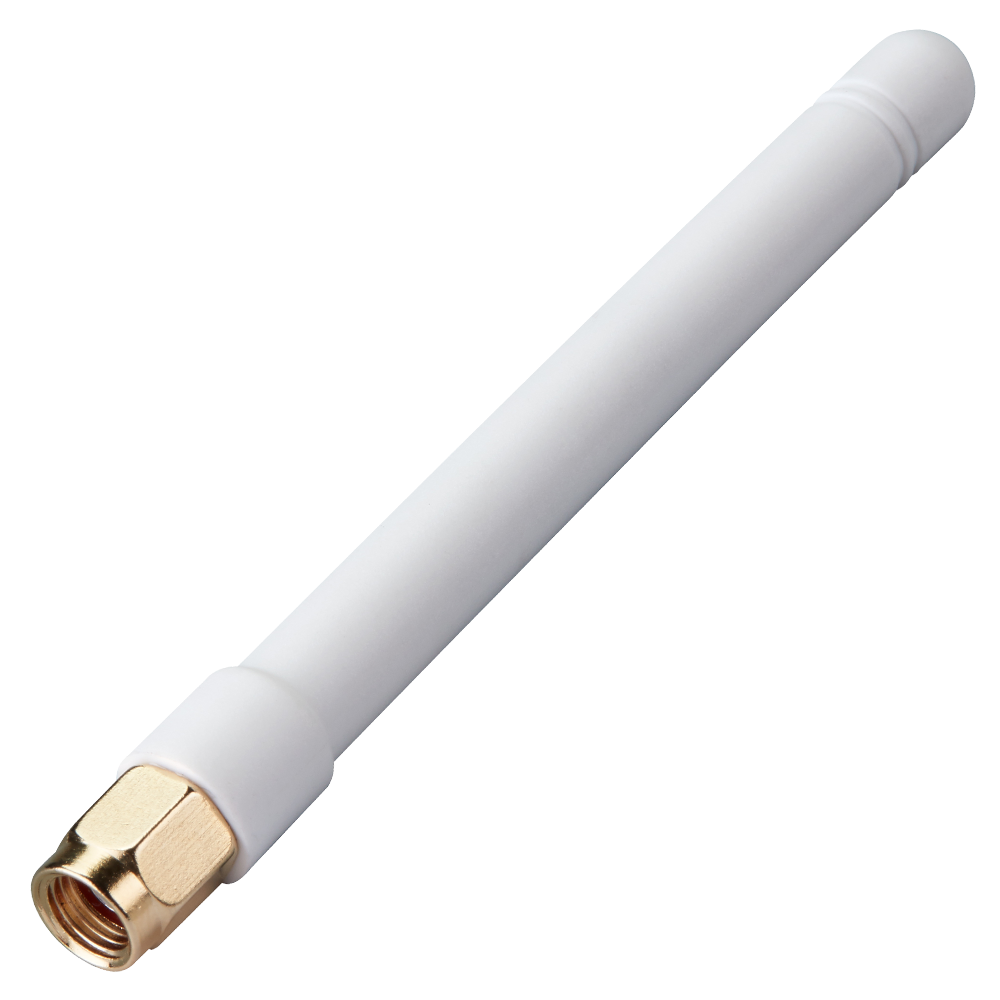

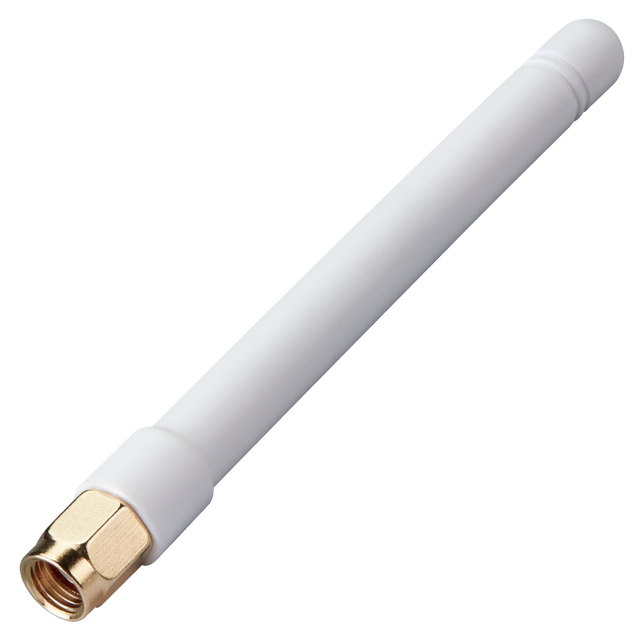

This flexible “Rubber Duck” dipole antenna is designed for reliable 2.4GHz connectivity in compact devices and gateways. Its robust TPE over-molded housing supports durable handling and improved environmental reliability for demanding deployments.
- Optimized for 2.4GHz wireless: suited to Bluetooth and Wireless LAN use
- Rugged construction: flexible dipole structure for robust handling
- Outdoor-ready housing: UV resistant and waterproof design for added durability
When installed in real devices, antenna peak gain can decrease compared with free-space testing. Selecting an antenna with some gain margin can help maintain practical in-device performance while staying within module peak-gain limits.
Connector & Cable
- Connector Type: RP-SMA Male
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Location: External
Mounting: Terminal Mount, Connector Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
IP Rating: IP65
Dimensions: 89.5mm*9.6mm RoHS Compliant
Weight: 7g
Wi-Fi/Bluetooth (2.4GHz)
Frequency: 2400-2500 MHz
Radiation: Omni-directional
Polarization: Linear
Impedance: 50 Ω
Return Loss: <-10
Input Power: 10W
Peak Gain (dBi): 0.65 (2400), 1.26 (2450), 1.68 (2500)
Connector Type: RP-SMA(M)
