Description

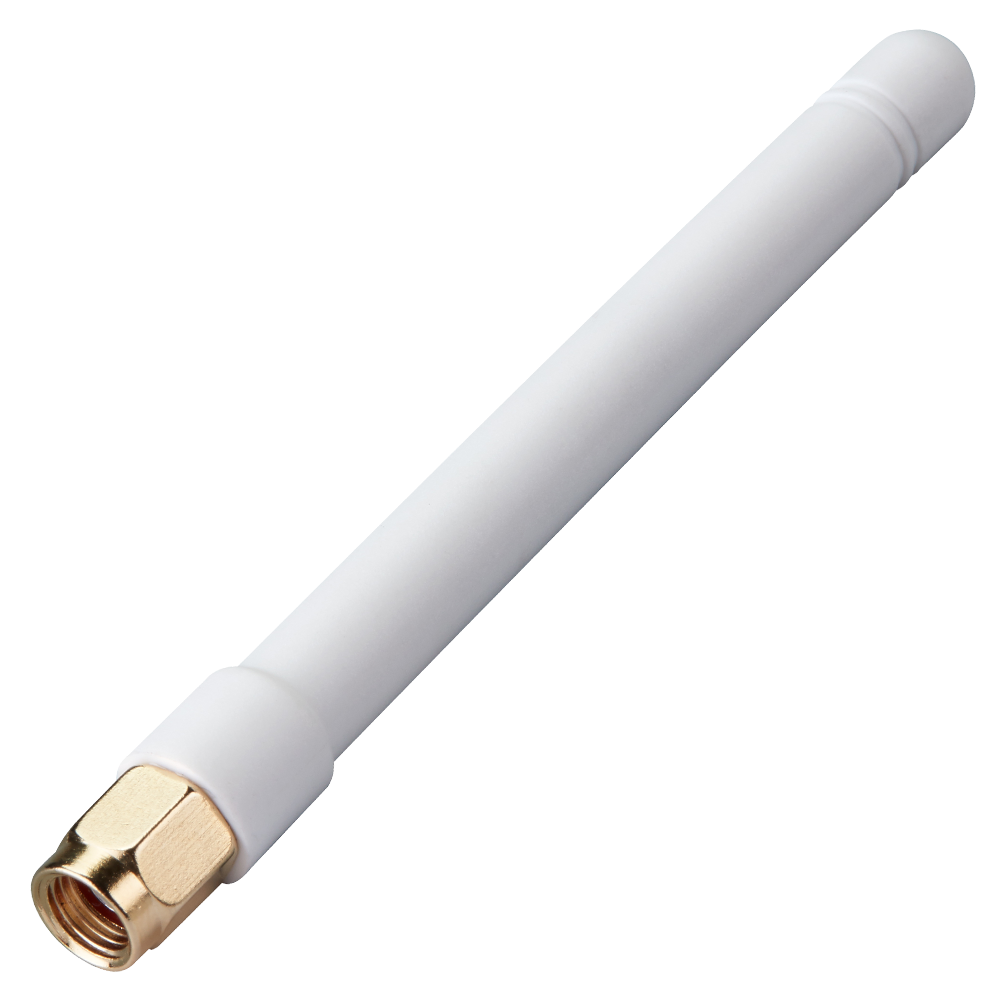

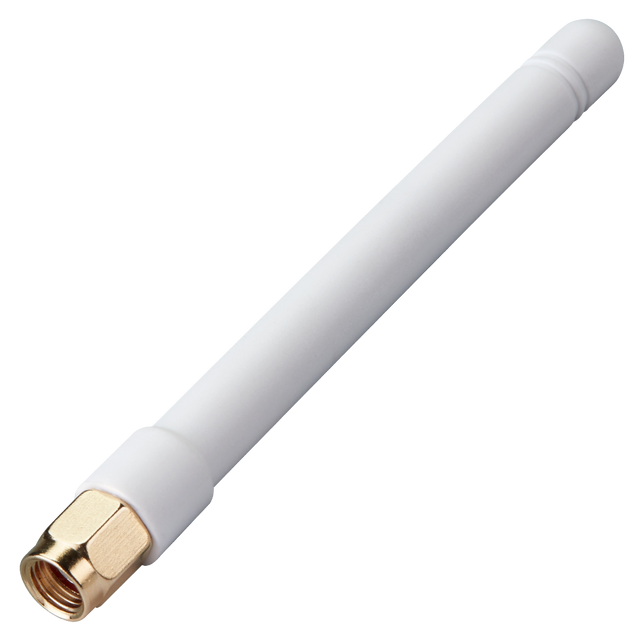

This flexible “rubber duck” terminal antenna is designed for reliable 2.4–2.5GHz wireless connectivity in devices that use Wi-Fi and Bluetooth. The robust over-molded housing is UV resistant and built for dependable performance in harsh environments.
- Optimized for 2.4–2.5GHz: Supports common Wi-Fi and Bluetooth use cases
- Flexible, robust construction: Designed for durable handling
- Weather-resistant housing: UV resistant and waterproof design
Connector & Cable
- Connector Type: RP-SMA Male (RPSMA-M)
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
IP Rating: IP65
Dimensions: 89.5mm*9.6mm RoHS Compliant
Weight: 7g
Wi-Fi/Bluetooth (2.4GHz)
Frequency: 2400-2500 MHz
Standards: Wi-Fi, Bluetooth
Peak Gain (Max): 1.68 dBi
VSWR: <2
Impedance: 50 Ω
Polarization: Linear
Radiation: Omni-directional
Max Input Power: 10W
Connector Type: RP-SMA Male (RPSMA-M)
