Description

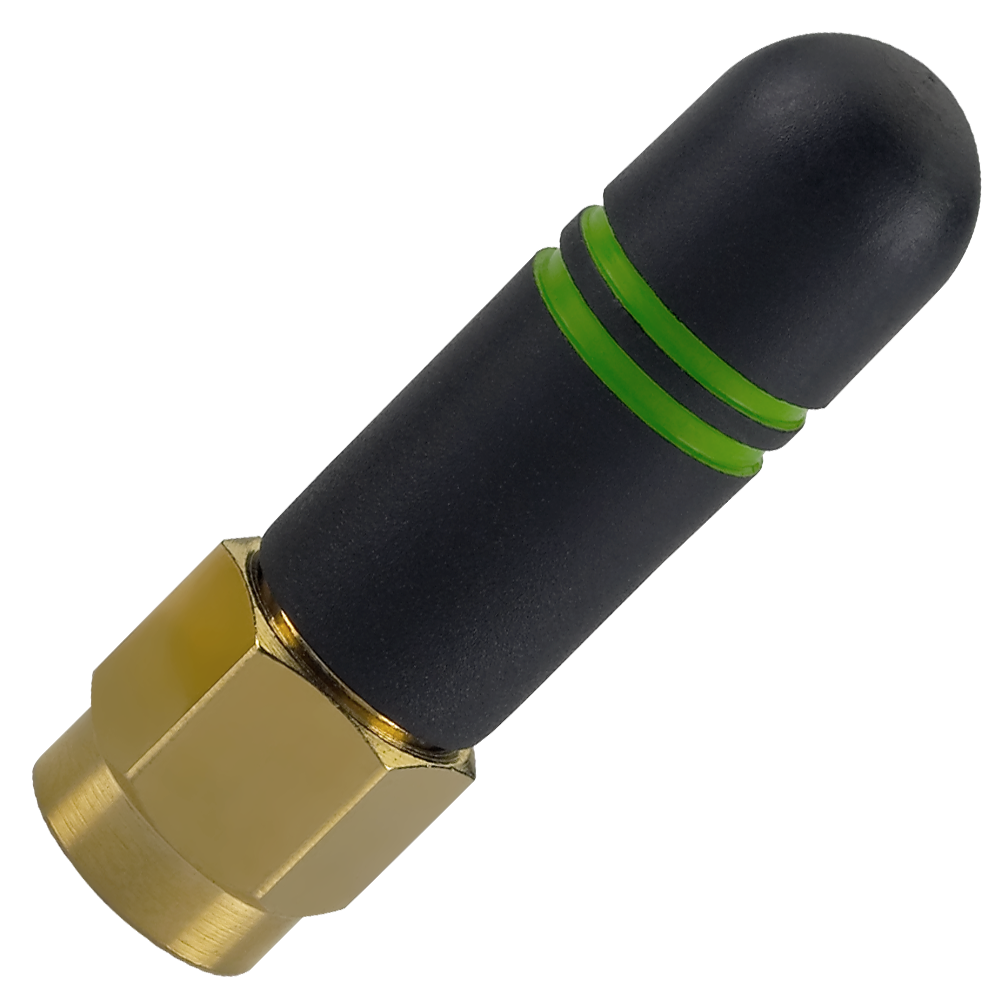

The GW.26 is a compact 2.4 GHz monopole designed for reliable short-range wireless connectivity in products using Wi‑Fi and Bluetooth. Its terminal-mount form factor makes it well-suited to devices that need a simple, robust external antenna solution.
- Optimized for 2.4 GHz wireless: Supports common Wi‑Fi and Bluetooth use cases.
- Compact external form factor: Suitable for space-constrained device enclosures.
- Rugged housing: Designed for dependable operation in demanding environments.
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C ~ +85°C
Antenna Technologies: Monopole
Location: External
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
IP Rating: IP65
Dimensions: Ø7.9 x 30 mm
Weight: 4g
Wi-Fi / Bluetooth (2.4GHz)
Frequency: 2400-2500 MHz
Standards: Wi-Fi - 2.4 GHz, Bluetooth
Average Gain (dB): -3.12
Efficiency (%): 48.7
Peak Gain (dBi): 2.24
VSWR: <2
Impedance: 50 Ω
Polarization: Vertical
Radiation Pattern: Omni directional
Max. Input Power (W): 10W
Connector Type: SMA(M)
