Description

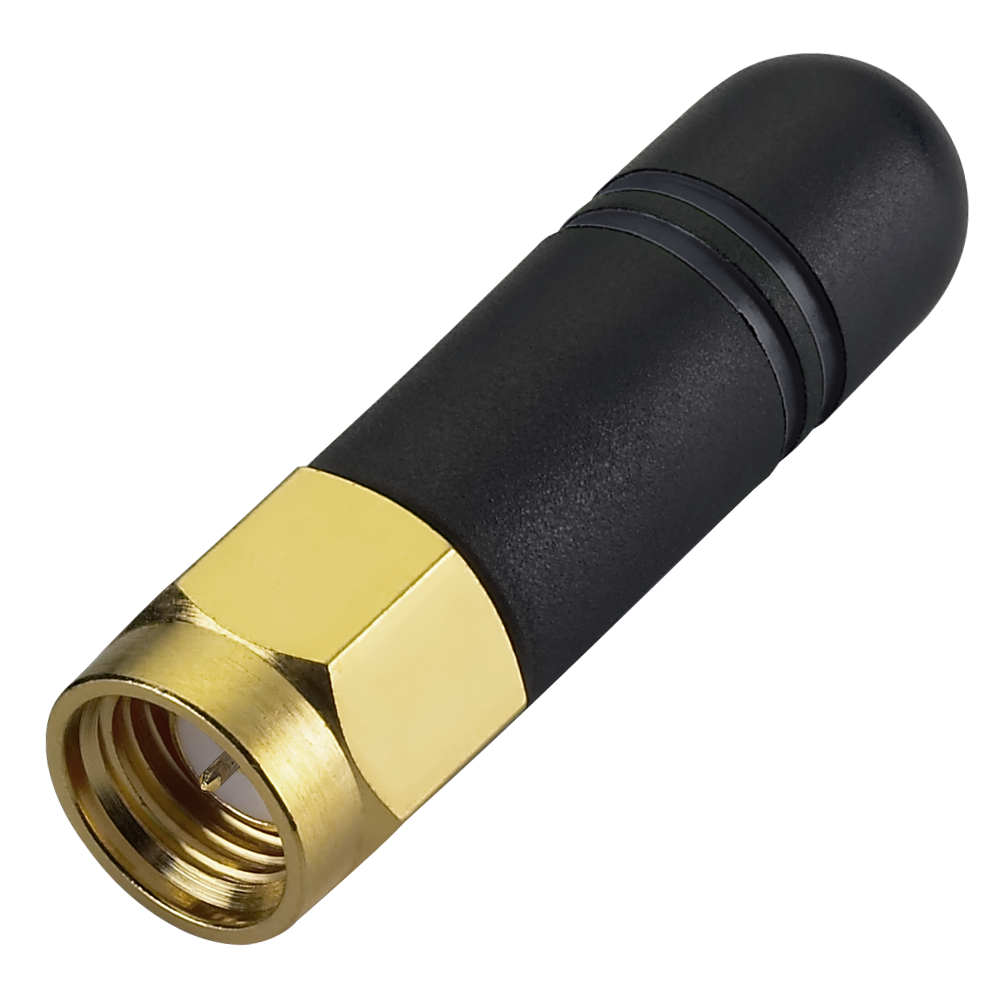

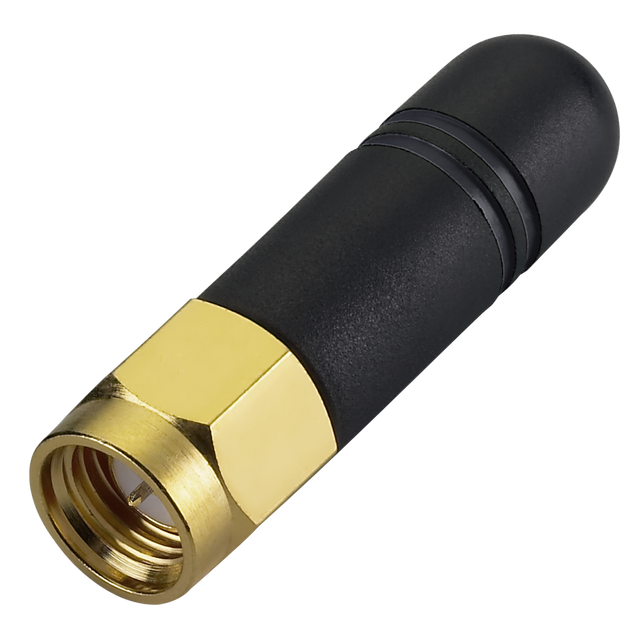

The GW.26 HT series is a compact 2.4GHz monopole antenna designed for reliable short-range wireless connectivity in harsh, high-temperature environments. Its rugged TPEE housing is suitable for installations near heat-generating components and helps support stable performance in demanding industrial and automotive use cases.
This antenna is well-suited for 2.4GHz wireless applications such as Wi-Fi, Bluetooth and ZigBee. It is also a good choice when you need a robust, waterproof enclosure for M2M devices operating in challenging conditions.
For devices with strict regulatory peak-gain limits, it is common for free-space antenna performance to change once integrated into an end product due to the effects of ground plane, housing, and nearby components. Selecting an antenna with appropriate margin and validating performance in the final device helps ensure compliance while maintaining good link quality.
Connector & Cable
- Connector Type: SMA(M)
Technical Specifications
Operating Temperature: -40°C ~ +85°C
Antenna Technologies: Monopole
Location: External
Mounting: Screw Mount, Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
Type: Single
IP Rating: IP65
Dimensions: 30mm x Ø7.9mm
Weight: 4g
Wi-Fi / Bluetooth / ZigBee (2.4 GHz)
Frequency: 2400-2500 MHz
Standards: Wi-Fi (2.4 GHz), Bluetooth, ZigBee
Impedance: 50 Ω
Polarization: Vertical
VSWR: <2
Efficiency (%): 48.7
Average Gain (dB): -3.12
Peak Gain (dBi): 2.24
Max Input Power: 10W
Radiation Pattern: Omni directional
Connector Type: SMA(M)
Connector Body Style: Straight
