Description

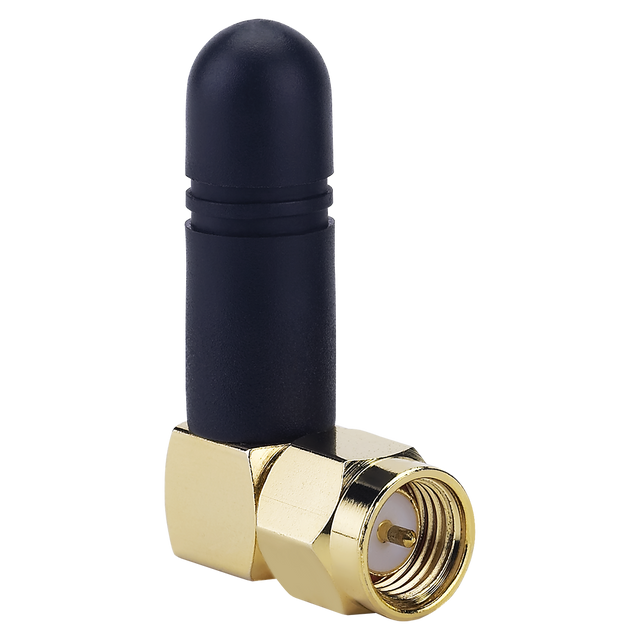

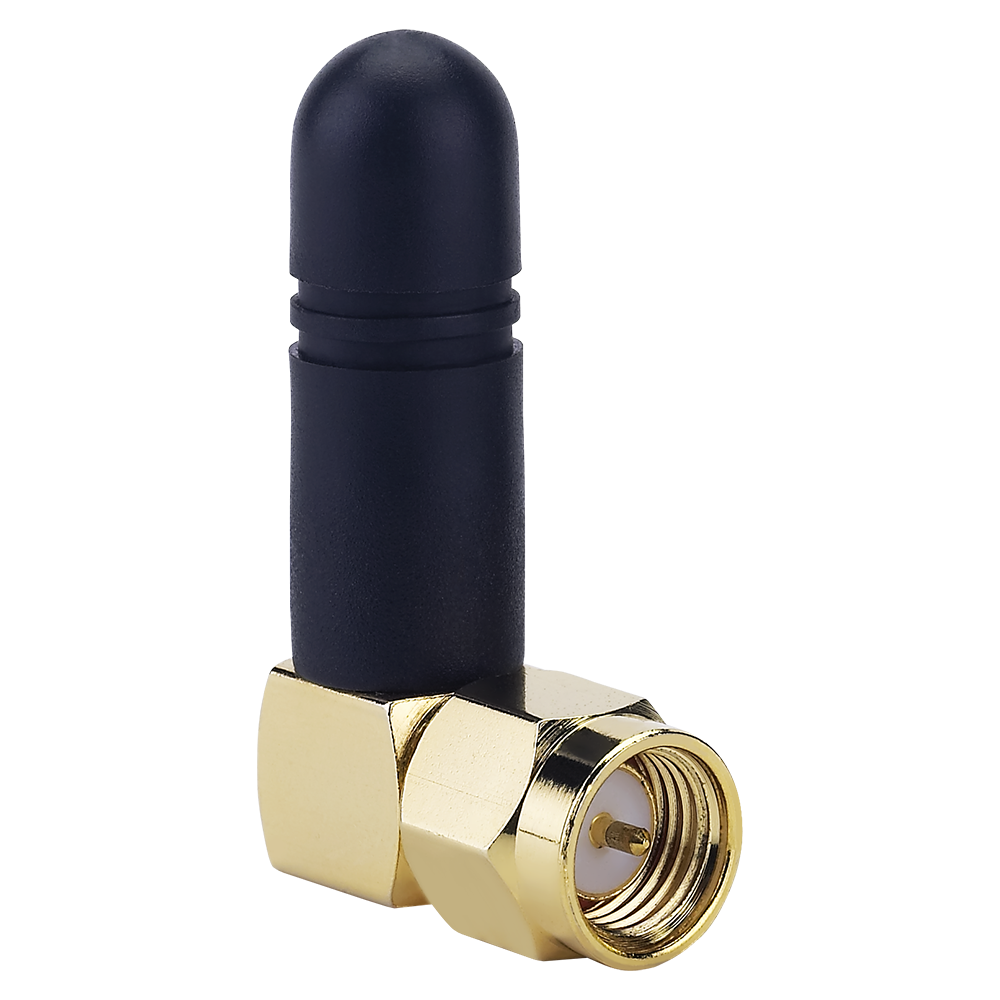

This miniature 2.4GHz terminal-mount monopole antenna is designed for reliable short-range wireless connectivity in harsh, high-temperature environments. Its durable high-temperature resistant housing makes it well-suited for installations near heat-generating components in industrial and automotive equipment.
- 2.4GHz coverage for common wireless device connectivity
- High-temperature capable housing for demanding environments
- IP65-rated enclosure to help protect against dust and water ingress
- Compact form factor for space-constrained installations
Ideal for designs using Wi-Fi, Bluetooth, and ZigBee in M2M and industrial systems.
Connector & Cable
- Connector Type: SMA-Male Right Angle
Technical Specifications
Operating Temperature: -40°C ~ +150°C
Antenna Technologies: Monopole
Location: External
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
IP Rating: IP65
Dimensions: Ø28.5 x 17.2 mm
Weight: 4g
Wi-Fi 2.4GHz
Frequency: 2400-2500 MHz
Standards: Wi-Fi 2.4GHz, Bluetooth, ZigBee
Average Gain (dB): -4.49
Efficiency (%): 35.6
Peak Gain (dBi): 0.99
Impedance: 50 Ω
Polarization: Vertical
Radiation Pattern: Omni directional
Max. Input Power: 10W
Connector Type: SMA(M)R/A
