Description

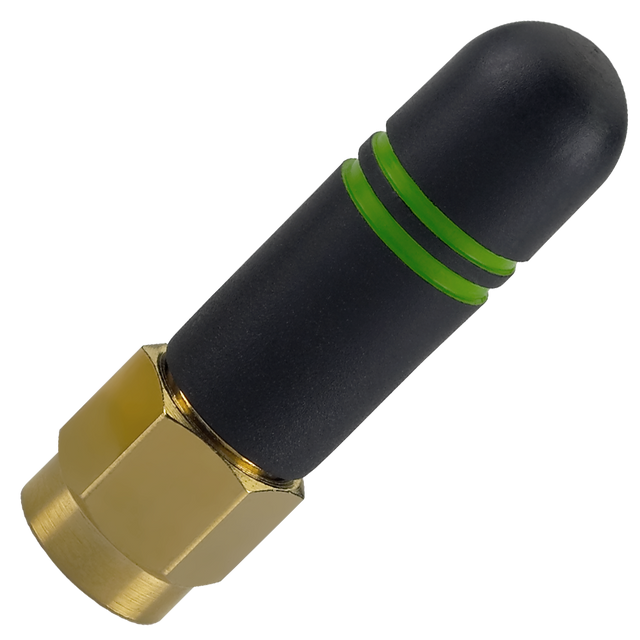

This miniature 2.4GHz monopole antenna is designed for external device integration where compact size and robust performance are required. It supports 2.4GHz wireless operation for Wi-Fi and Bluetooth, and features a durable waterproof housing suited to harsh environments.
- 2.4GHz support: Optimized for Wi-Fi and Bluetooth operation
- Compact form factor: Small footprint for space-constrained designs
- Rugged enclosure: Waterproof housing to improve long-term reliability
Connector & Cable
- Connector Type: RP-SMA(M)
Technical Specifications
Operating Temperature: -40°C ~ +85°C
Antenna Technologies: Monopole
Location: External
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
IP Rating: IP65
Dimensions: 30mm x ⌀7.9mm
Weight: 4g
Wi-Fi/Bluetooth (2.4GHz)
Frequency: 2400-2500 MHz
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Efficiency (%): 48.7
Average Gain (dB): -3.12
Peak Gain (dBi): 2.24
VSWR: <2
Max Input Power: 10W
Connector Type: RP-SMA(M)
