Description

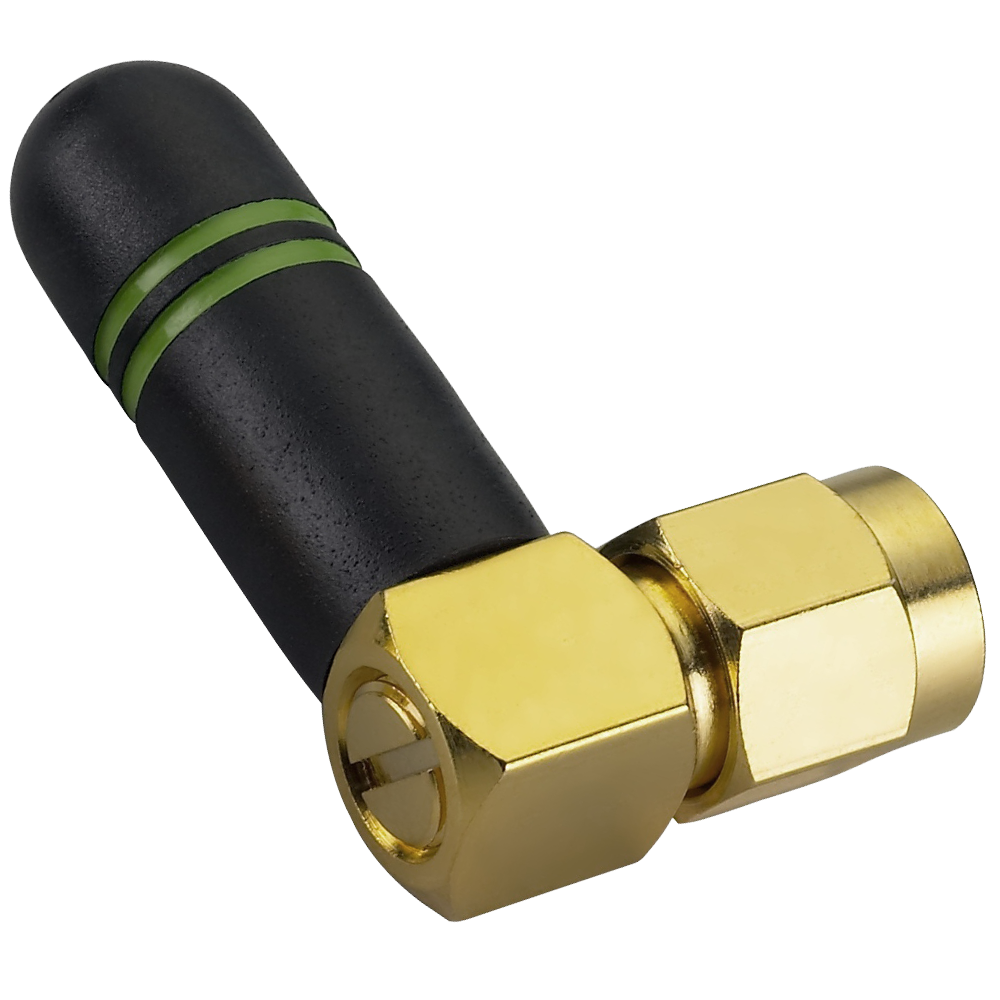

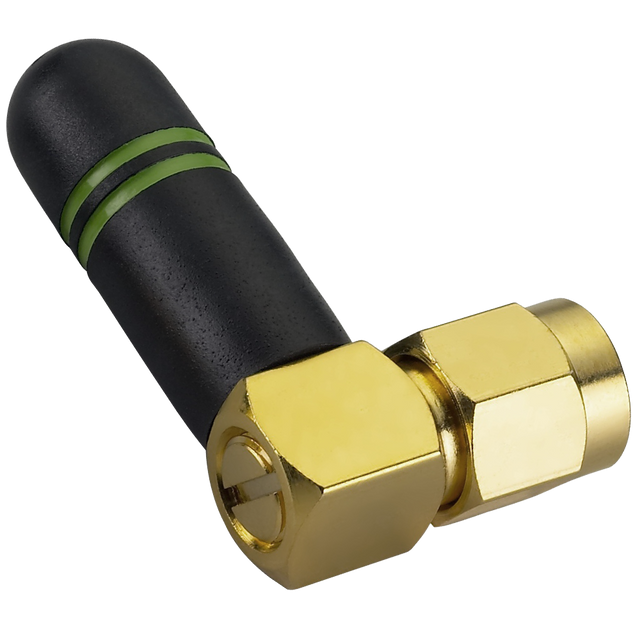

This compact 2.4GHz monopole antenna is designed for reliable short-range wireless connectivity in devices using Wi‑Fi and Bluetooth. Its terminal-mount format and rugged housing make it a strong choice for applications that need a durable external antenna solution.
- Designed for 2.4GHz wireless: Suitable for Wi‑Fi and Bluetooth devices.
- Rugged housing: Built for dependable performance in demanding environments.
- Integration-friendly: Helps designers meet module antenna gain limits when integrated into real devices, where performance can change due to ground plane and enclosure effects.
Connector & Cable
- Connector Type: RP-SMA(M) Right Angle
Technical Specifications
Operating Temperature: -40°C ~ +85°C
Antenna Technologies: Monopole
Location: External
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
IP Rating: IP65
Dimensions: Ø28.5 x 17.2 mm
Weight: 4g
Material: TPEE
Wi-Fi / Bluetooth 2.4GHz
Frequency: 2400-2500 MHz
Standards: Wi-Fi 2.4GHz, Bluetooth
Radiation Pattern: Omni directional
Polarization: Vertical
Impedance: 50 Ω
VSWR: <2
Efficiency (%): 35.6
Average Gain (dB): -4.49
Peak Gain (dBi): 0.99
Max. Input Power (W): 10W
Connector Type: RP-SMA(M)
