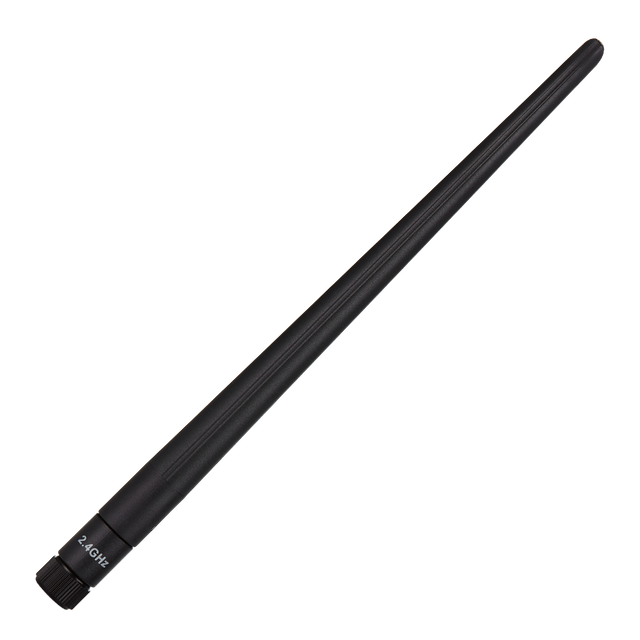

GW.34.5153 Antenna External Router Wi-Fi, Bluetooth hinged terminal mount dipole RPSMA-M for Smart Home, Gateways/Routers, Connected Agriculture, Connected Enterprise

This terminal-mount dipole antenna is designed for reliable 2.4GHz connectivity with an omnidirectional radiation pattern and high efficiency. Its hinged design allows the antenna to be positioned straight or at a right angle to suit different device layouts.

• Designed for 2.4GHz operation for Wi-Fi and other 2.4GHz ISM applications
• Omnidirectional pattern for broad coverage
• Hinged terminal-mount design to optimize placement and clearance
• Ideal use cases: Smart Home devices, gateways/routers, and connected enterprise deployments

Connector & Cable

• Connector Type: RP-SMA Male (Reverse Polarity)

Technical Specifications

Operating Temperature: -40 C to 85 C
Antenna Technologies: Dipole
Location: External
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, BLE, ZigBee, ISM
Type: Single
Dimensions: 198* d813 mm
Weight: 22.5 g

Wi-Fi / Bluetooth (2.4GHz)

Frequency: 2400~2500 MHz
Standards: Wi-Fi, Bluetooth, BLE, ZigBee, Wireless LAN
Impedance: 50a9
Polarization: Linear
Radiation Pattern: Omni
VSWR: <2
Max. Input Power: 1W
Efficiency (%): Straight 78.56, Bent 83.20
Average Gain (dB): Straight -1.05, Bent -0.80
Peak Gain (dBi): Straight 4.22, Bent 5.89
Connector Type: RP-SMA(M)
