Description

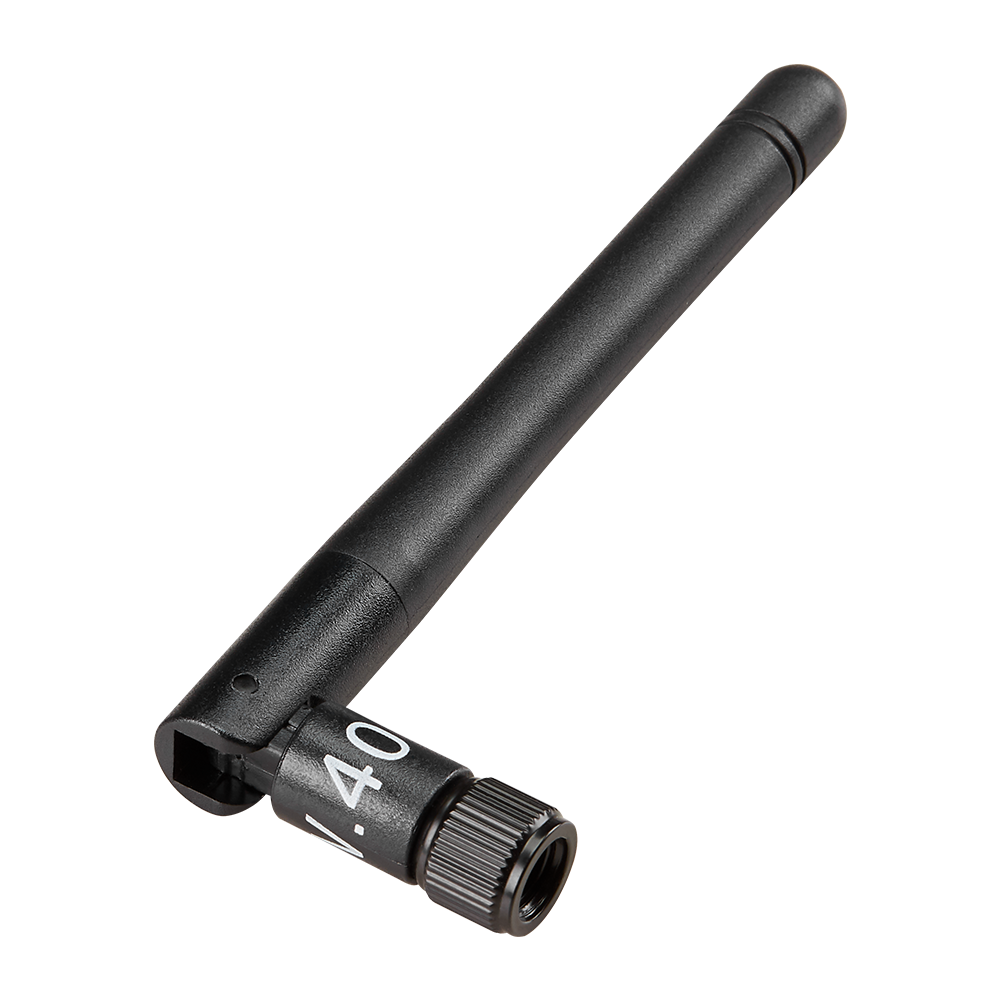

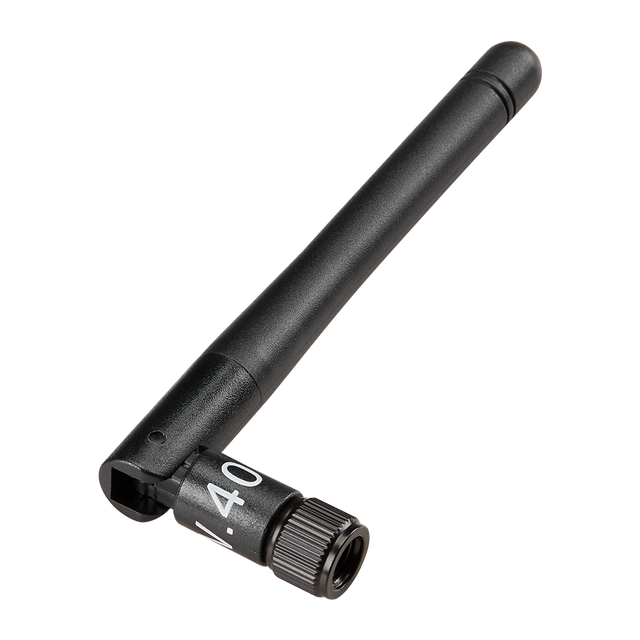

GW.40.2153 is a tri-band Wi‑Fi terminal-mount dipole antenna designed for reliable wireless connectivity in compact devices. Its hinge-rotatable design supports flexible positioning, and the omnidirectional radiation pattern helps provide consistent coverage in typical installations.
- Tri-band coverage for 2.4 GHz, 5 GHz, and 6 GHz Wi‑Fi deployments
- Dipole design suitable for Wi‑Fi and Bluetooth/ISM-band applications
- 90° rotatable hinge for easier placement and improved orientation options
- Suitable for use in MIMO configurations when antennas are oriented for improved isolation
Connector & Cable
- Connector Type: RP-SMA(M)
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Location: External
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
Dimensions: Ø10 x 109 mm
Weight: 10g
Materials: TPU (cover), Nylon (antenna base)
Storage Temperature: -40°C ~ +85°C
Relative Humidity: Non-condensing 65°C 95% RH
Wi-Fi/Bluetooth (Tri-Band)
Frequency: 2400-2500 MHz, 5150-5850 MHz, 5925-7125 MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: <2
Radiation Pattern: Omni directional
Max Input Power: 2W
Gain (Max): 4.39 dBi
Connector Type: RP-SMA(M)
