Description

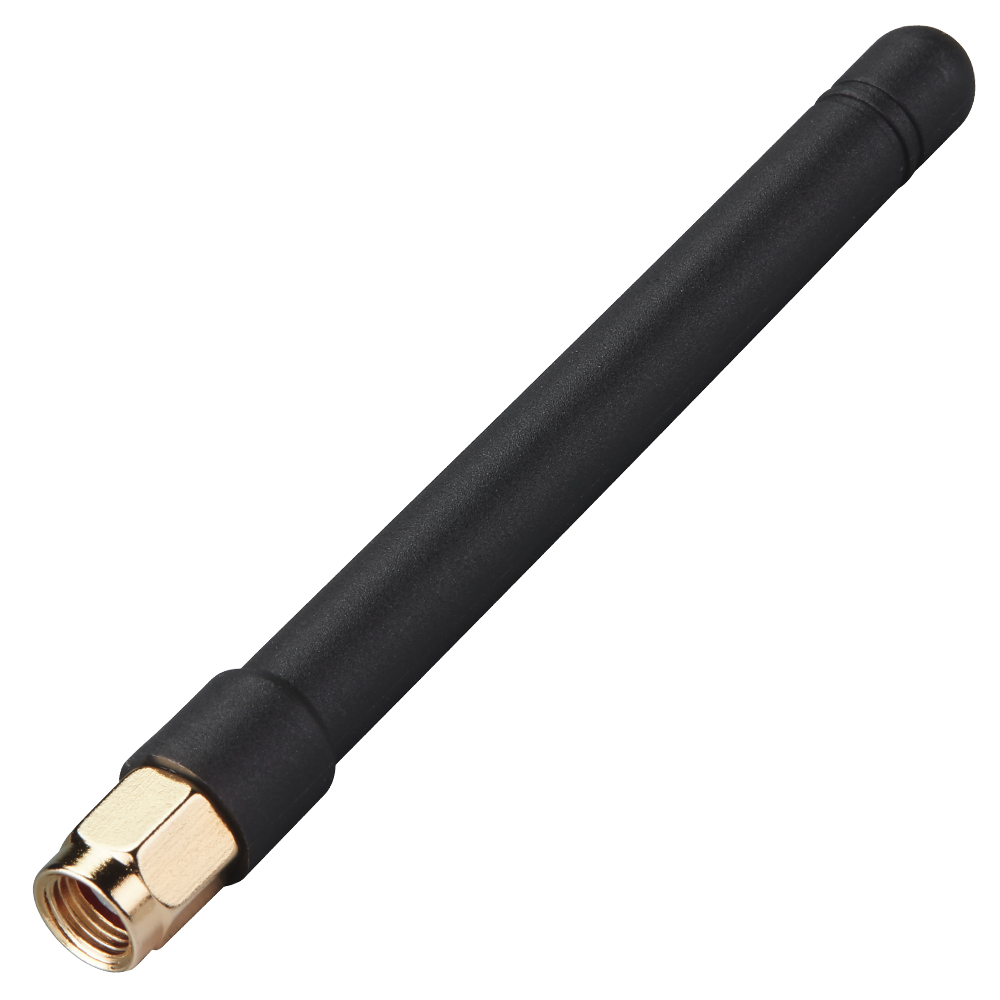

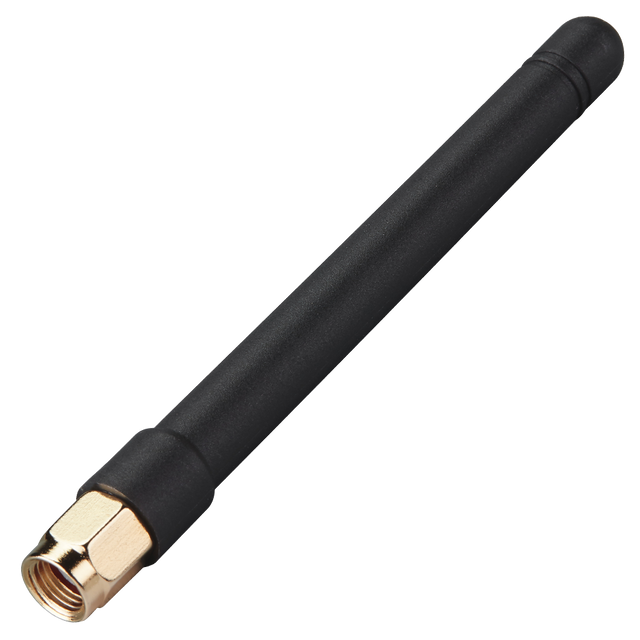

This compact rubber duck dipole antenna is designed for reliable short-range wireless connectivity with an omnidirectional radiation pattern for consistent coverage.
Its robust, UV-resistant housing and waterproof, impact-rated enclosure make it well-suited to demanding indoor and outdoor deployments where durability matters.
- Use cases: Bluetooth and Wireless LAN networks
- Design: Compact form factor with durable outdoor-ready construction
Connector & Cable
- Connector Type: RP-SMA Male (Reverse Polarity)
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth
Type: Single
IP Rating: IP67
Waterproof: IP65
Pendulum Hammer Test [IEC62262]: IK05
Dimensions: 89.5mm x 7.5mm Diameter RoHS and REACH compliant
Weight: 9.5g
Antenna Body Material: TPEE
Wi-Fi / Bluetooth
Frequency: 2400-2500 MHz, 5150-5850 MHz, 5925-7125 MHz
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
Efficiency (%): 80.6, 70.9, 62.1
Average Gain (dB): -0.93, -1.49, -2.07
Peak Gain (dBi): 1.82, 3.28, 4.23
VSWR: <2
Connector Type: RP-SMA(M)
