Description

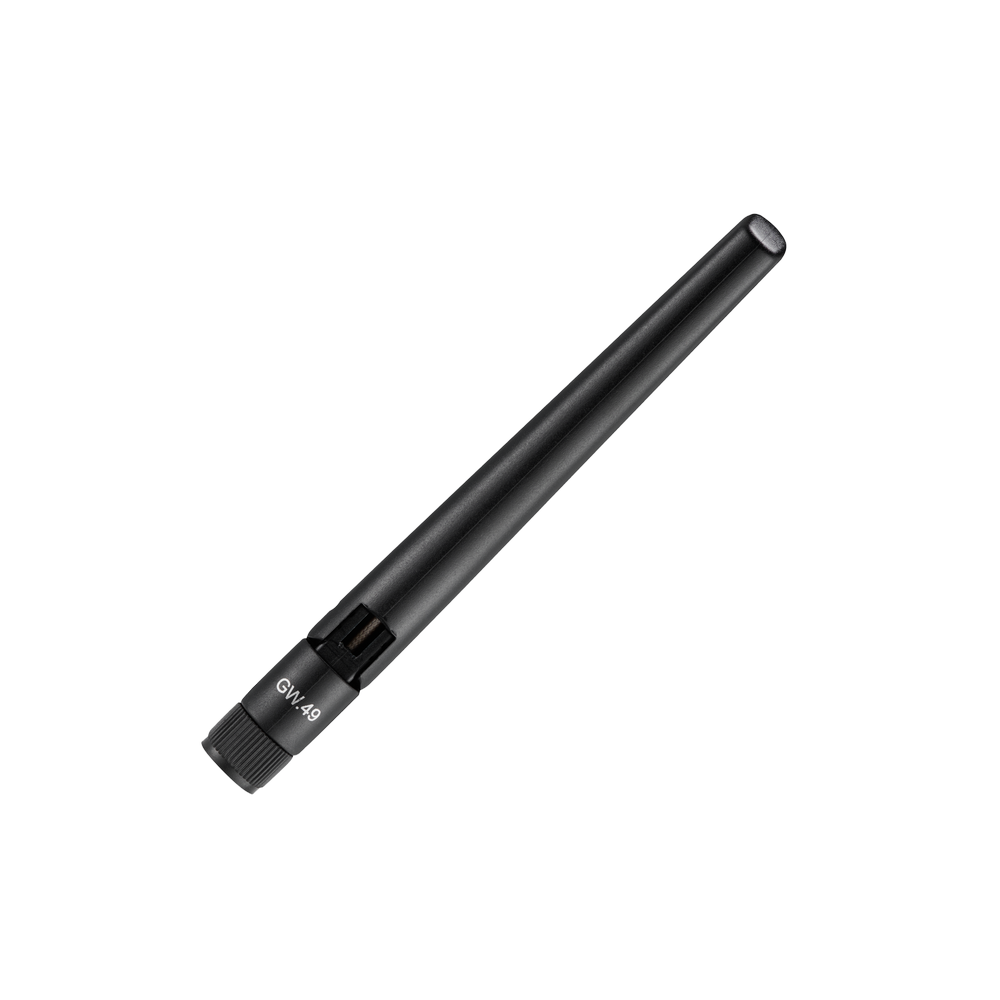

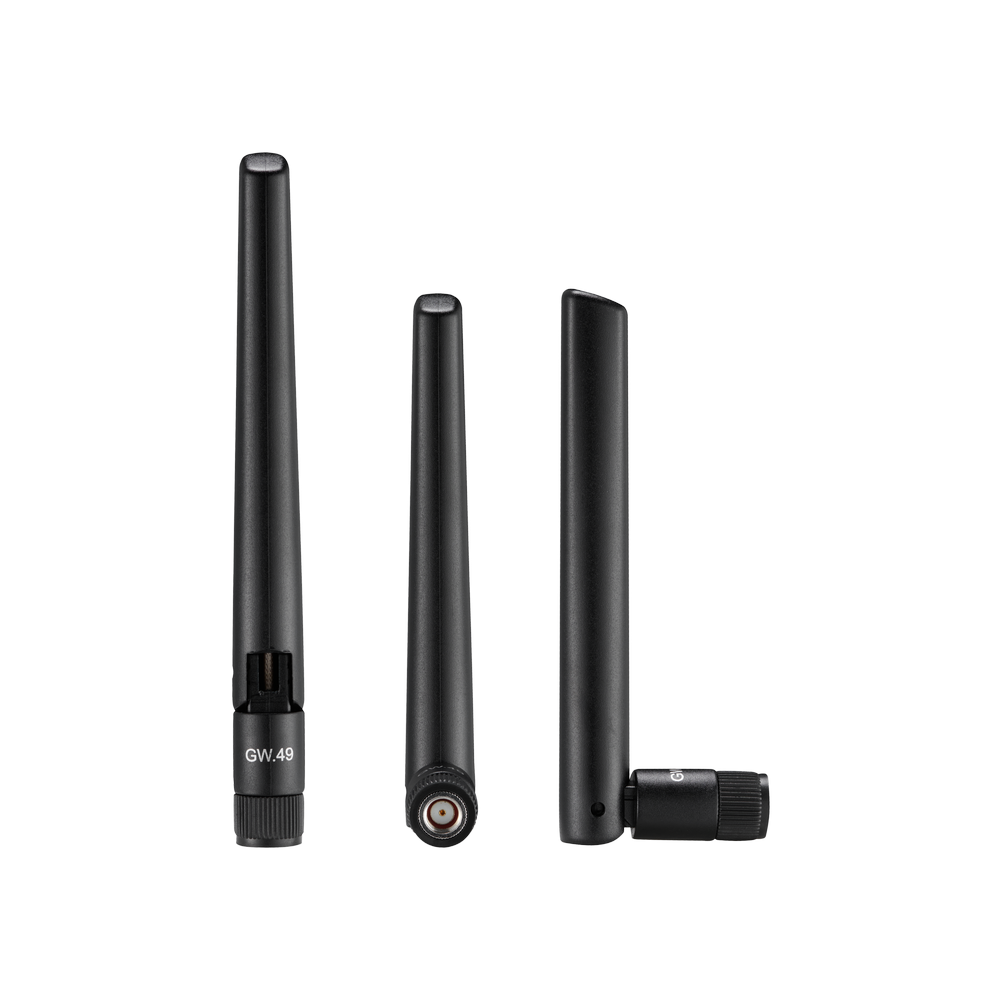

This rugged terminal-mount dipole antenna is designed for reliable multi-band Wi-Fi performance in demanding environments. Its slim, waterproof enclosure supports flexible positioning for straightforward integration on devices used indoors or outdoors.
- Tri-band operation: Covers 2.4GHz, 5.8GHz, and 7.125GHz bands to support modern Wi-Fi deployments.
- Wi-Fi 6/7 compatible: Suitable for high-throughput wireless LAN equipment.
- Outdoor-ready durability: IP67-rated enclosure helps protect against water ingress.
- Omnidirectional pattern: Built for broad coverage around the device.
Typical applications include: Smart Home, Gateways/Routers, Connected Agriculture.
Connector & Cable
- Connector Type: RP-SMA(M)
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Location: External
Mounting: Terminal Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
IP Rating: IP67
Dimensions: Ø13 x 123.7 mm
Weight: 15g
Casing: PC+PBT
Wi-Fi®/Bluetooth® (Tri-Band)
Frequency: 2400~2500 MHz, 4900~5850 MHz, 5925~7125 MHz
Standards: Wi-Fi 6, Wi-Fi 7, Wireless LAN, Bluetooth, BLE, ZigBee
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni
VSWR: <2
Peak Gain (dBi) (Free space): 2.58, 3.80, 1.54
Efficiency (%) (Free space): 93.0, 72.1, 58.2
Connector Type: RP-SMA(M)
