Description

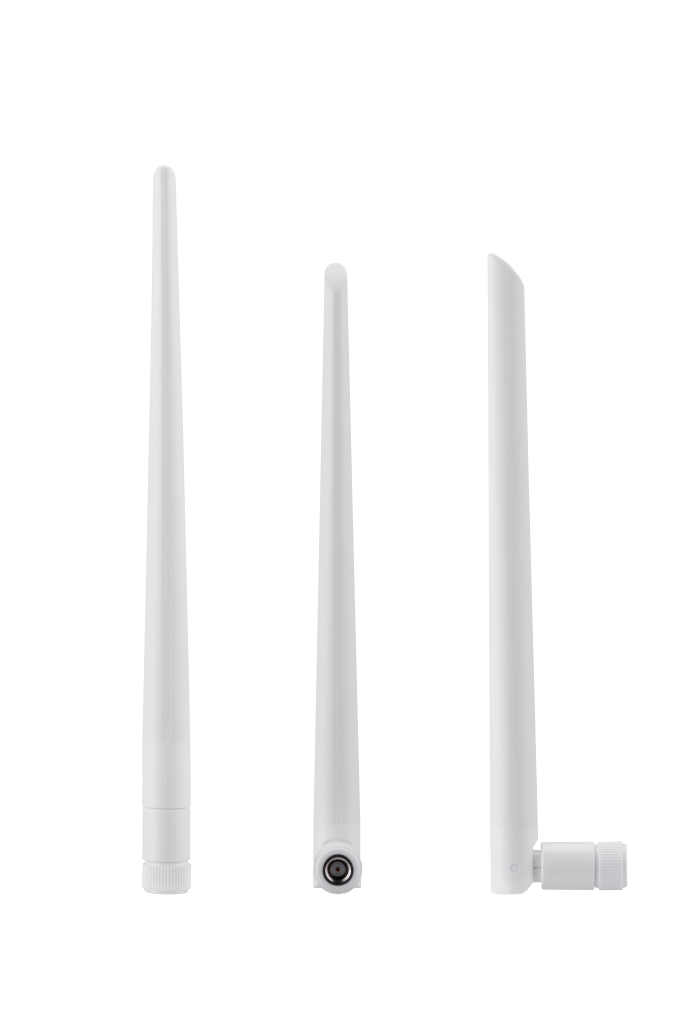

This white full-band terminal-mount dipole antenna is designed for reliable short-range wireless connectivity across 2.4GHz, 5.8GHz, and 6GHz Wi-Fi bands. Its hinged, rotatable design allows the antenna to be positioned straight or at a right angle to the device to help optimize real-world performance.
- Wideband Wi-Fi coverage: supports 2.4/5.8/7.1GHz operation and is compatible with Wi-Fi 6/7 devices.
- Flexible positioning: hinged design enables easy orientation adjustments for improved signal performance.
- Omnidirectional pattern: suited to general-purpose indoor or outdoor deployments where coverage in all directions is needed.
- Ideal for: Smart Home, Gateways/Routers, and Connected Agriculture.
Connector & Cable
- Connector Type: RP-SMA(M)
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Location: External
Mounting: Terminal
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
Dimensions: 198*Ø13 mm
Weight: 22.5 g
Wi-Fi®/Bluetooth®
Frequency: 2400~2500, 4900~5850, 5925~7125 MHz
Standards: Wi-Fi® 6/7, Bluetooth®, BLE, ZigBee®, Wireless LAN
Impedance: 50Ω
VSWR: <2
Polarization: Linear
Radiation Pattern: Omni
Max. input power: 1W
Efficiency (%) (Free space): 63, 61, 60
Average Gain (dB) (Free space): -1.99, -2.14, -2.23
Peak Gain (dBi) (Free space): 5.23, 5.54, 6.57
Connector Type: RP-SMA(M)
Casing: TPEE
Humidity: Non-condensing 65°C 95% RH
