Description

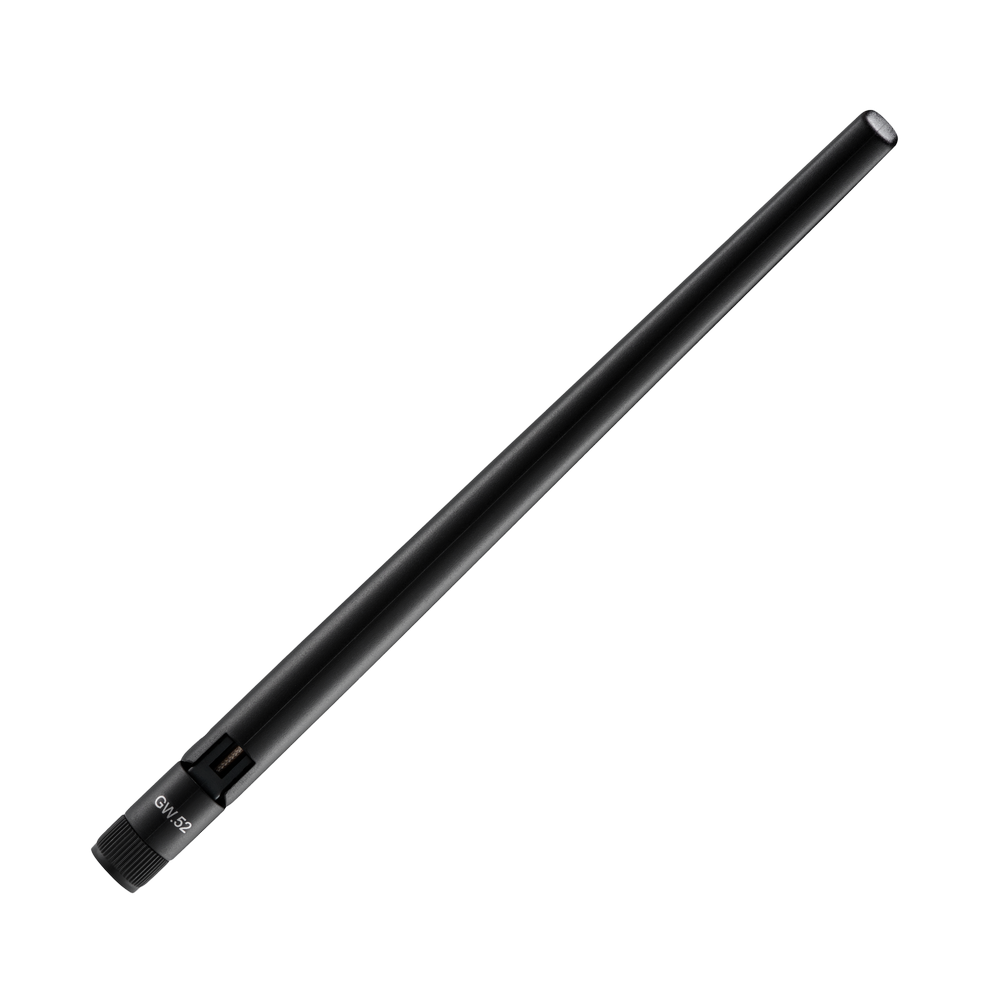

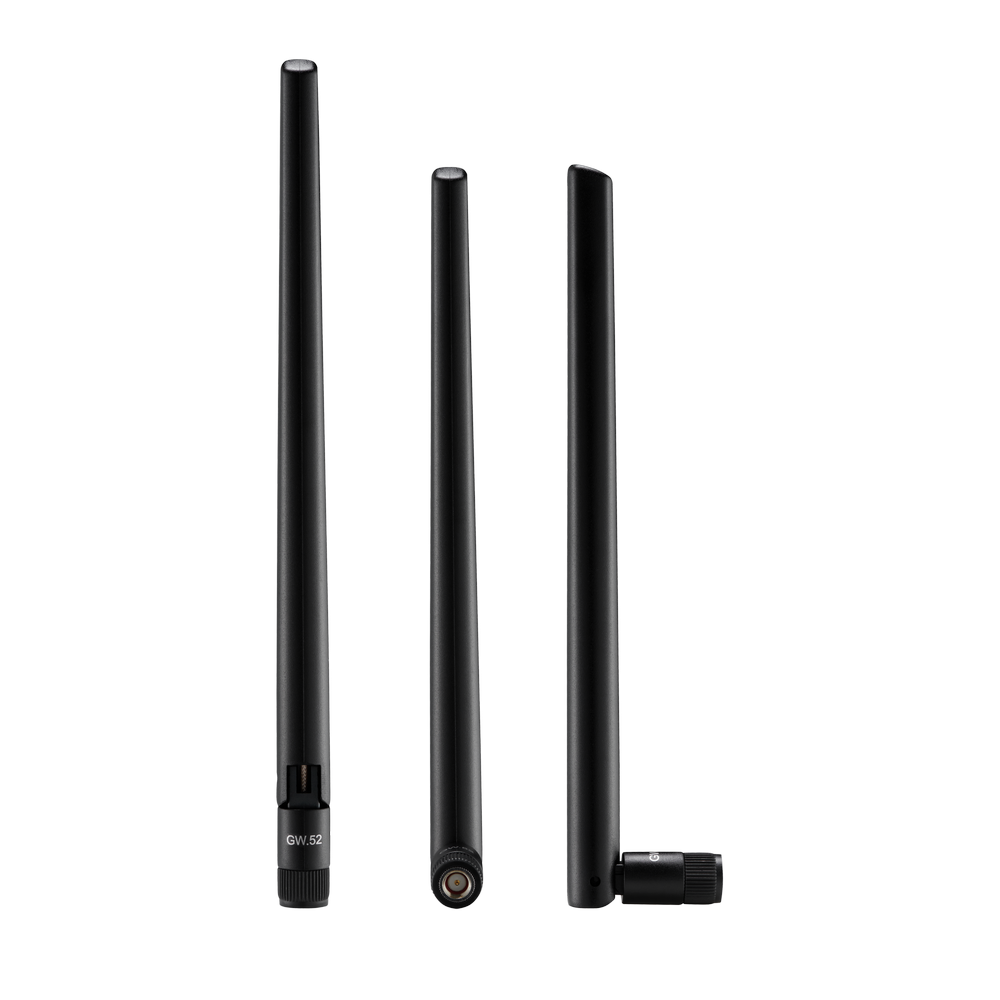

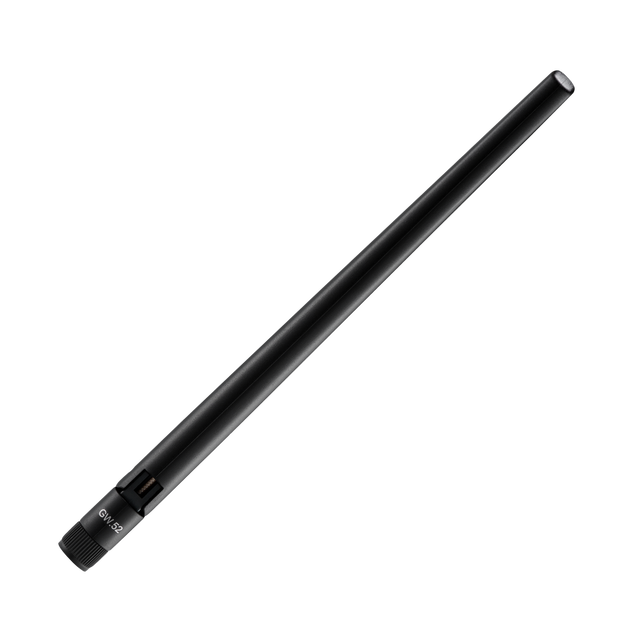

This IP67-rated terminal antenna is designed for reliable short-range wireless connectivity in demanding indoor or outdoor environments. Its hinged design allows flexible positioning straight or at right angles to the device, helping optimize placement where space or clearance is limited.
- Tri-band operation: Covers 2.4 GHz, 5.8 GHz, and 7.125 GHz bands for Wi-Fi 6/7 use cases
- Outdoor-ready durability: IP67 sealing helps protect against water ingress
- Versatile for ISM applications: Suitable for Wi-Fi, Bluetooth, and ZigBee deployments
Typical applications include: Smart Home, Gateways/Routers, Connected Agriculture
Connector & Cable
- Connector Type: RP-SMA Male
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Location: External
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
IP Rating: IP67
Dimensions: Ø13 x 203 mm
Weight: 15 g
Wi-Fi / Bluetooth / ZigBee (Tri-Band)
Frequency: 2400~2500, 4900~5850, 5925~7125 MHz
Standards: Wi-Fi 6/7, Bluetooth, ZigBee, Wireless LAN
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni
VSWR: <2
Gain (Max): 4.53 dBi
Connector Type: RP-SMA(M)
