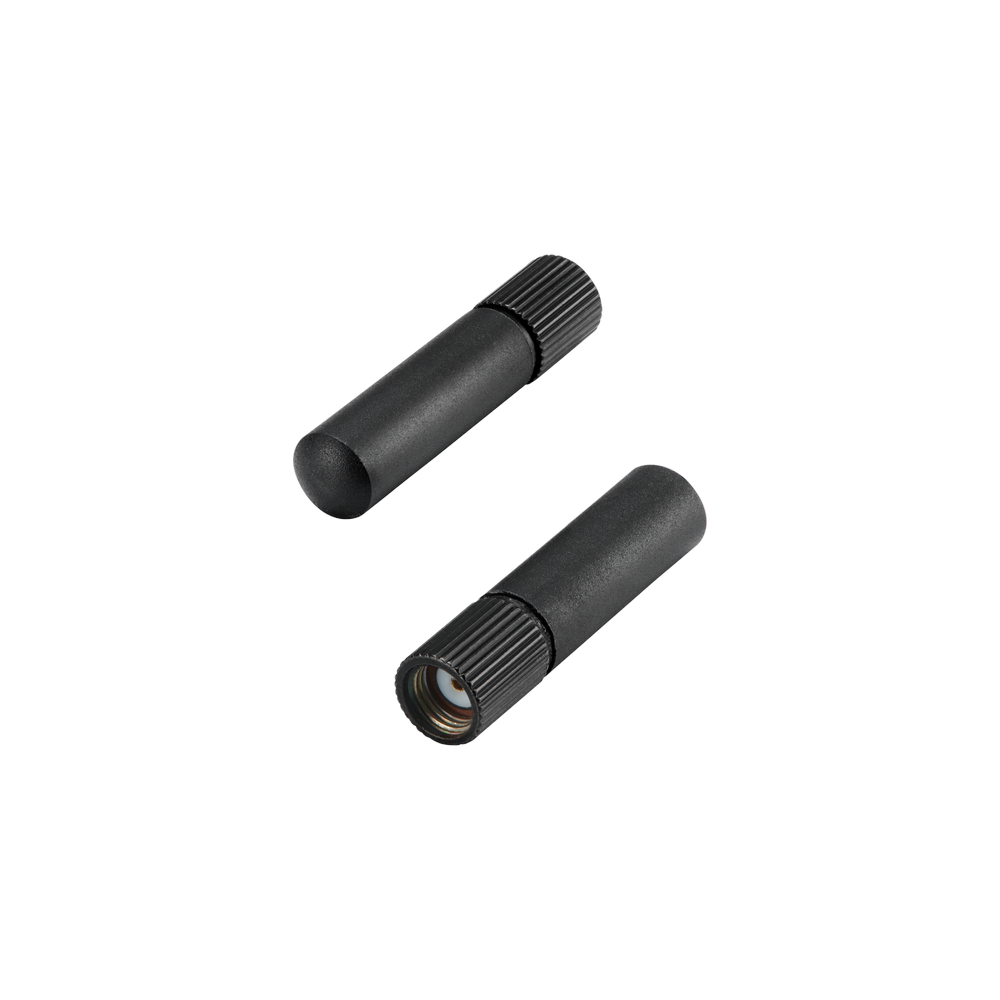

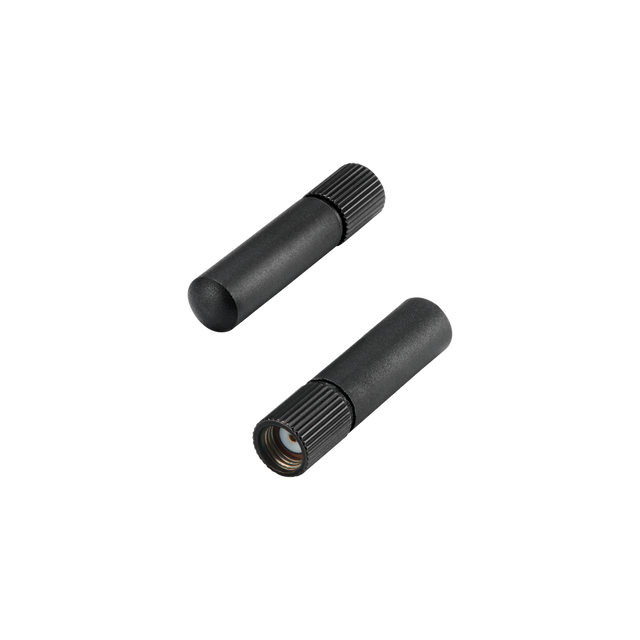

GW.53.A151 Antenna Outdoor External Wi-Fi, Bluetooth terminal mount RPSMA-M IP67 for smart grid, smart monitoring, remote agricultural, industrial settings

The GW.53 is a super-small, lightweight terminal-mount antenna designed for reliable 2.4/5.8GHz wireless connectivity in harsh outdoor environments. Its rugged silicone enclosure and IP67 sealing help protect against dust, dirt, and water immersion—ideal for durable IoT deployments.

It supports Wireless LAN and Bluetooth-band operation, making it well-suited for compact devices that need dependable short-range connectivity outdoors.

• Dual-band operation: Supports 2.4GHz and 5.8GHz wireless bands
• Rugged for outdoor use: IP67-rated sealed enclosure
• Compact form factor: Designed for space-constrained devices
• Use cases: smart grid, smart monitoring, remote agricultural deployments, industrial environments, smart city infrastructure

Connector & Cable

• Connector Type: RP-SMA(M)

Technical Specifications

Operating Temperature: -40 C to +85 C
Location: External
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
IP Rating: IP67
Dimensions: 8.5mm x 35.8mm
Weight: 5.5g

Wi-Fi / Bluetooth

Frequency: 2.4~2.5GHz, 5.1~5.85GHz
Impedance: 50
Polarization: Linear
VSWR: <2
Gain (Max): 6.51 dBi
Radiation Pattern: Omni
Connector Type: RP-SMA(M)
