Description

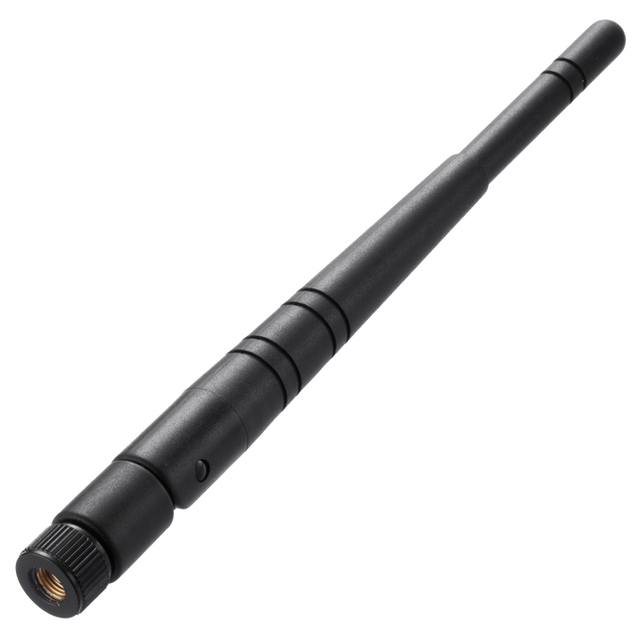

This hinged terminal-mount dipole antenna is designed for reliable short-range wireless connectivity, supporting Wi-Fi bands up to 7.125GHz for future-ready deployments. Its omnidirectional pattern helps maintain stable links, while the durable housing and adjustable 90° hinge make positioning straightforward on access points, gateways, and industrial equipment.
- Supports modern Wi-Fi bands: covers 2.4GHz, 5GHz, and 6GHz ranges (up to 7.125GHz)
- Multi-protocol ready: suitable for Wi-Fi and Bluetooth/ISM-band applications
- Adjustable positioning: hinged design rotates 90° for easier alignment
- Rugged construction: durable housing intended for robust day-to-day use
Connector & Cable
- Connector Type: RP-SMA Male Connector
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Location: External
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
Dimensions: 156 * Ø13 mm RoHS & REACH Compliant
Weight: 17.5g
Wi-Fi / Bluetooth (Terminal Mount)
Frequency: 2400-2500 MHz, 5150-5850 MHz, 5925-7125 MHz
Impedance (Ohm): 50Ω
Polarization: Linear
Radiation Pattern: Omnidirectional
VSWR: 2:1
Max Input Power (W): 1W
Peak Gain (dBi): 3.8 (2.4GHz, straight), 5.3 (5.8GHz, straight), 5.6 (7.1GHz, 90° bent)
Connector Type: RP-SMA(M)
