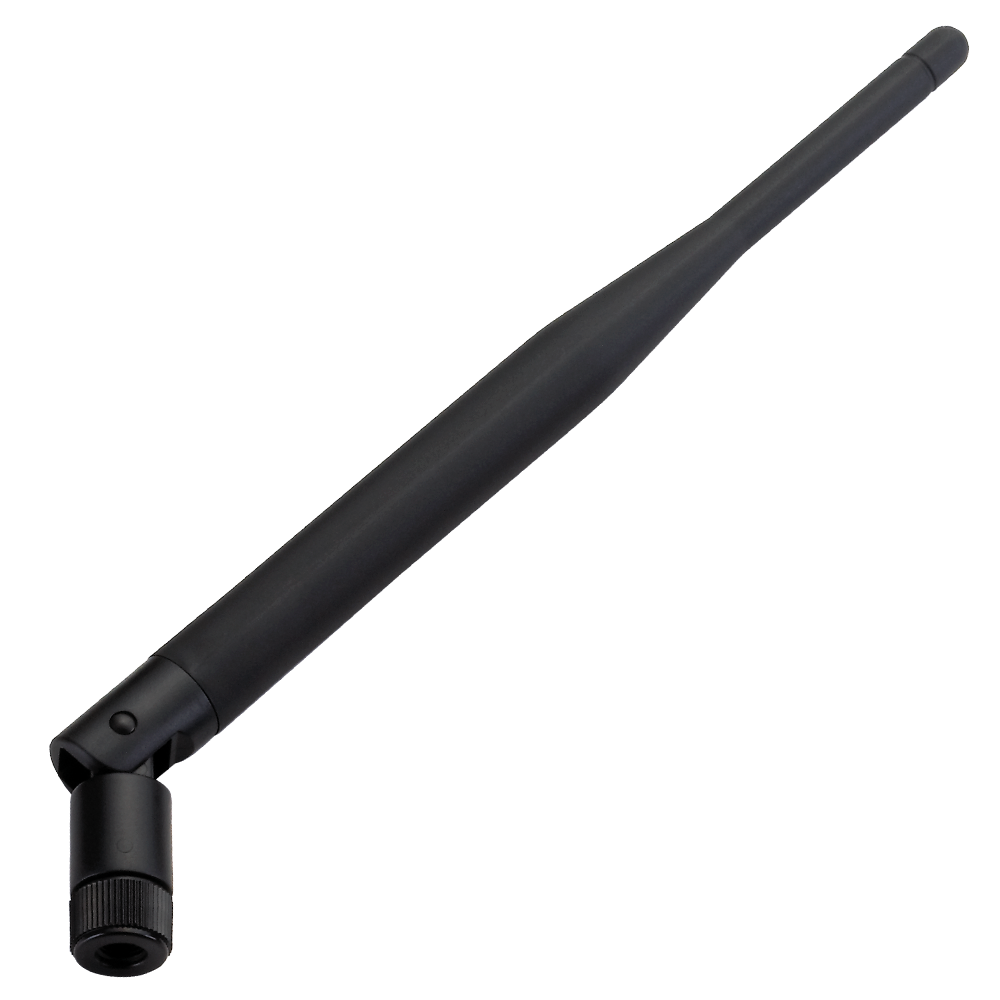

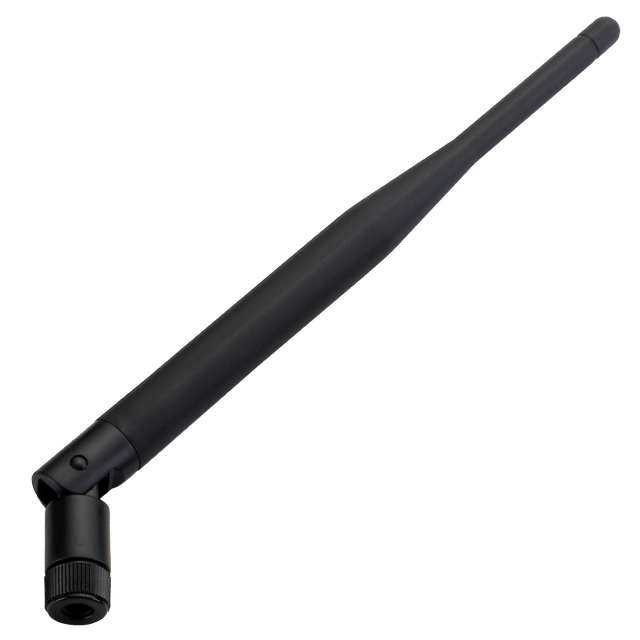

GW.71.5153 Antenna External Wi-Fi, ISM hinged terminal mount dipole RP-SMA(M)

This dual-band dipole antenna is designed for reliable 2.4GHz and 5.8GHz operation for WLAN/ISM applications. Its hinged design supports flexible positioning to help optimize in-device performance where real-world conditions can reduce free-space gain.

• Dual-band coverage: Supports 2.4GHz and 5GHz Wi-Fi bands
• Hinged form factor: Adjustable angle for better placement and signal performance
• Durable housing: Built for robust terminal-mounted installations

Connector & Cable

• Connector Type: RP-SMA(M)

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Location: External
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
Dimensions: Ø12.8 x 194 mm
Weight: 24.6g
Material: TPU

Wi-Fi / ISM Dual-Band

Frequency: 2400-2500 MHz; 5150-5850 MHz
Standards: IEEE 802.11a/b/g/h
Impedance: 50 Ω
Polarization: Linear
VSWR: 2:1
Radiation Pattern: Omni directional
Max. Input Power: 2W
Gain (Max): 5.5 dBi
Connector Type: RP-SMA (M)
