Description

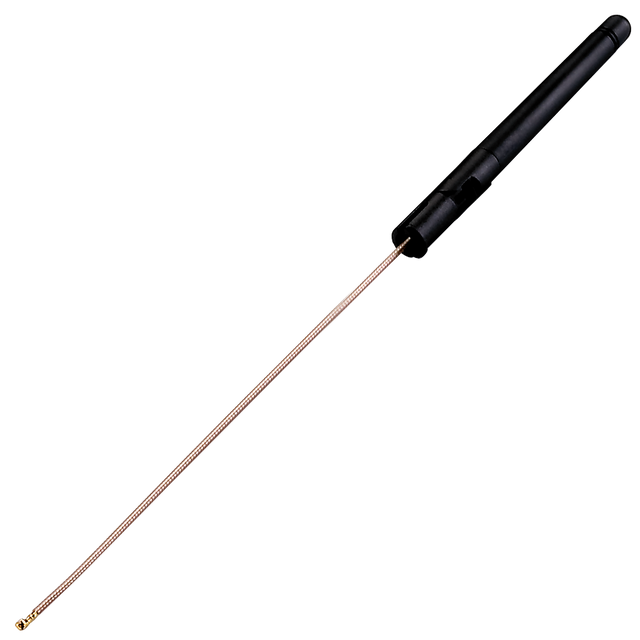

High-performance, robust 2.4GHz click-in terminal antenna designed for fast, repeatable assembly onto finished products. The click-in head helps reduce assembly time and cost versus typical terminal antennas using separate connectorized cable assemblies.
This dipole antenna is built to maintain stable radiation performance across different mounting environments and ground-planes, and supports use in a straight position or hinged to 90 degrees.
- Quick click-in mechanical integration for finished devices
- Stable efficiency, gain, and radiation patterns across mounting conditions
- Hinged design supports straight or 90° bent positioning
- Suitable for 2.4GHz Wi-Fi and Bluetooth/ISM applications
Connector & Cable
- Connector Type: I-PEX MHF I (U.FL compatible)
- Cable Length: 25cm
- Cable Type: RG-178
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Location: External
Mounting: Click Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
Dimensions: 9.3mm x 9.3mm x 112.6mm
Weight: 9g
Wi-Fi/Bluetooth (2.4GHz)
Frequency: 2.4-2.5 GHz
Standards: Wi-Fi/Bluetooth
Impedance: 50 Ohms
Polarization: Linear
VSWR: 2:1
Radiation Pattern: Omni
Peak Gain (straight): 2.7dBi
Peak Gain (bend): 1.6dBi
Efficiency (straight): 74%
Efficiency (bend): 74%
Input Power: 2W max.
Connector Type: I-PEX MHF I (U.FL compatible)
Cable Length: 25cm
Cable Type: RG-178
