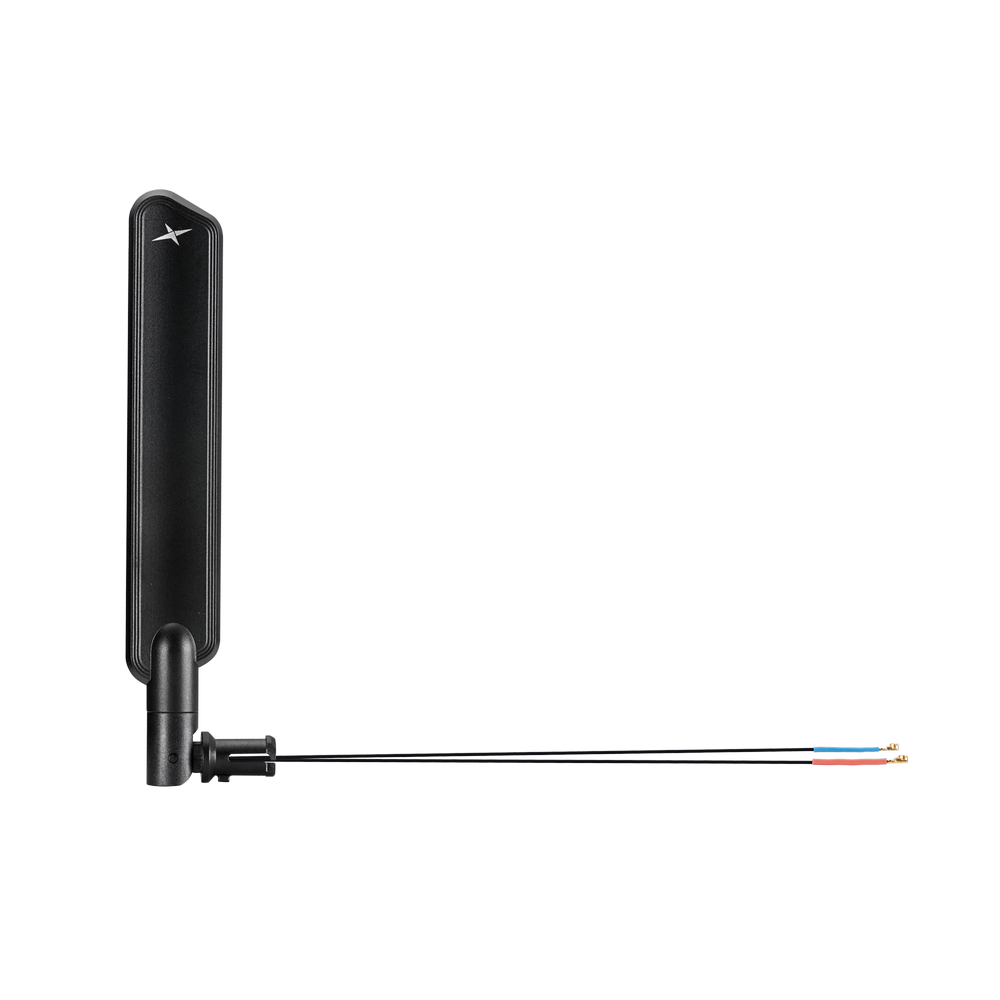

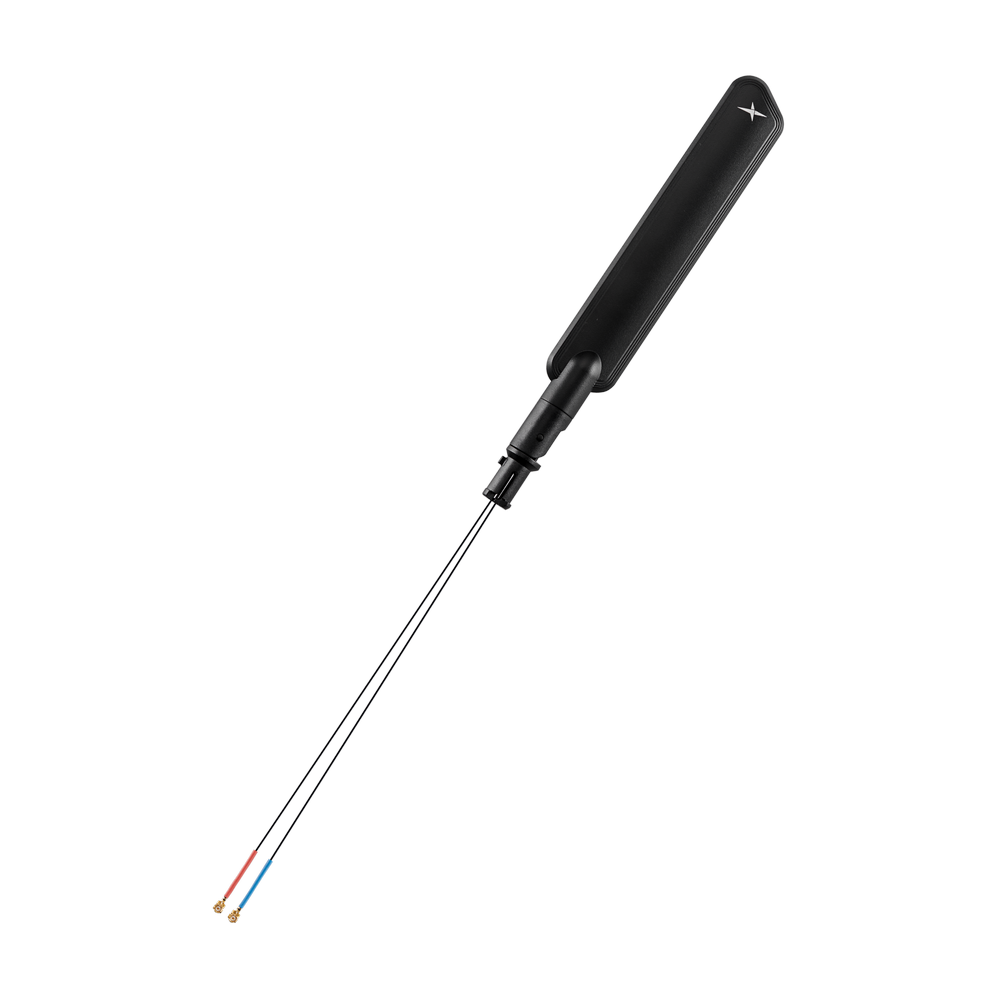

GW55.A.07.B.001 Antenna External MIMO Wi-Fi 6E/7, Bluetooth swivel mount for Gateways and Routers, Point of Sale Kiosks, Smart Home, Office and Building Networking

This compact swivel-mount antenna integrates two internal antenna elements to support Wi-Fi MIMO performance in a single enclosure, helping save device edge space and simplify router/gateway designs.

• 2-feed MIMO design: supports two separate RF feeds inside one housing for improved MIMO operation.
• Wide Wi-Fi band coverage: designed for 2.4 GHz, 5.8 GHz and 7.1 GHz Wi-Fi operation (including Wi-Fi 6).
• Optimized for gateway/router hardware: intended for through-hole style mounting where an on-device connector is not feasible.

Connections

2x Wi-Fi MIMO 2.4/5.8/7.125GHz

Technical Specifications

Operating Temperature: -40°C to 85°C
Storage Temperature: -40°C to 90°C
Antenna Technologies: MIMO
Location: External
Mounting: Swivel Mount, Click Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth
Type: Combination
Dimensions: 167 * 23 * 13 mm RoHS & Reach Compliant
Weight: 24g

Wi-Fi MIMO (2x)

Frequency: 2400~2500 MHz, 5150~5850 MHz, 5925~7125 MHz
Standards: Wi-Fi (including Wi-Fi 6)
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni-Directional
Max. Input Power: 10W
VSWR: <2
Gain (Max): 4.2 dBi
Connector Type: 2x I-PEX MHF®I (U.FL)
Cable Length: 15cm (each)
Cable Type: 0.81mm coax
