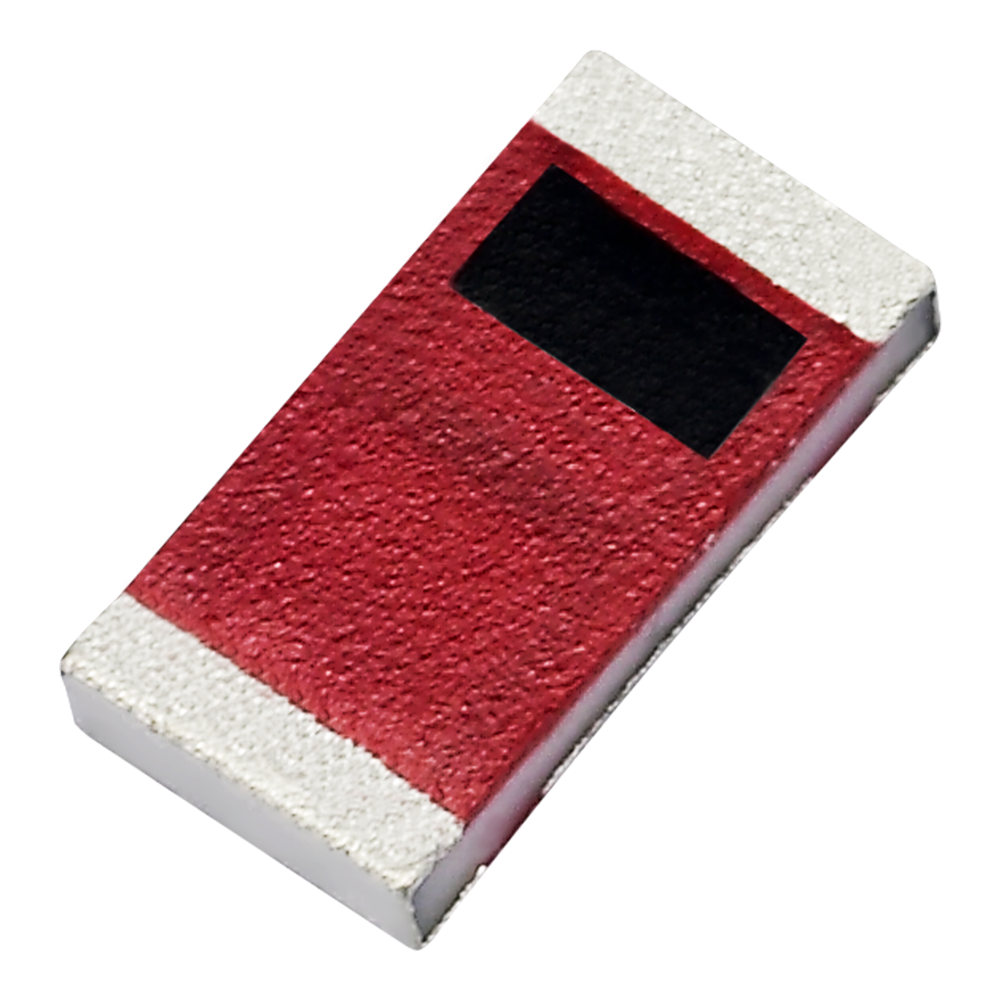

GWLA.01 Antenna Router GNSS, Wi-Fi, ISM embedded ceramic loop chip for Navigation or Position Tracking Systems, Handheld Devices, Tablet PCs, OBD Devices

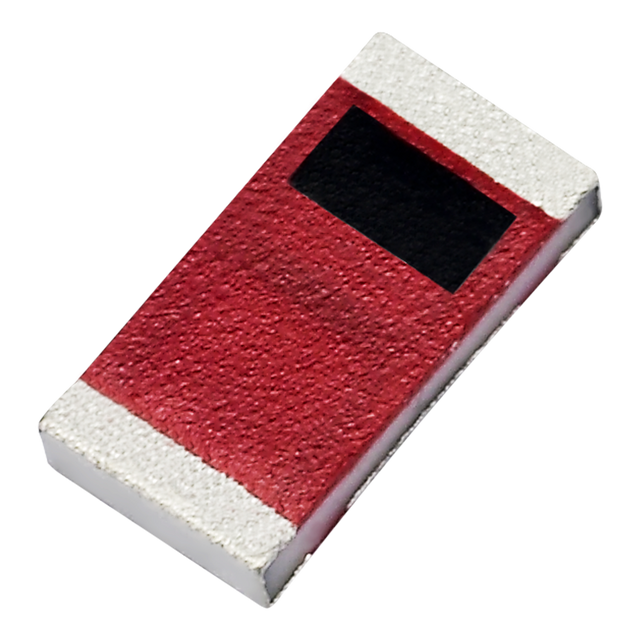

GWLA.01 is a compact embedded ceramic loop antenna that combines GNSS (GPS L1/GALILEO) and 2.4GHz wireless support in a single low-profile component. With two separate antenna feeds (one per band), it helps reduce PCB space versus using two separate antennas and simplifies RF integration in size-constrained devices.

• 2-in-1 design: separate feeds for GNSS and 2.4GHz wireless
• Embedded SMD/SMT format: miniature, edge-mounted ceramic antenna
• Tunable integration: can be optimized for different PCB sizes/environments by adjusting the matching circuit
• Designed to use the main PCB as the ground plane to maintain good efficiency in compact devices

Typical use cases include navigation/position tracking devices, handheld products, tablets, OBD devices, gateways/routers, mobile cameras, and UAV communication systems.

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: Loop
Location: Internal
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination
Impedance: 50Ω
VSWR: 2:1
Dimensions: 3.2*1.6*0.5mm
Weight: 0.02g
Ground Plane: 80*40mm (Standard Evaluation Board)

GPS L1/GALILEO Feed

Frequency: 1575.42 MHz
Bandwidth: 32 MHz (RL<-10dB)
Peak Gain (dBi): 1.52
Efficiency (%): 58.94
Return Loss (dB): < -10
Isolation (dB): >20
Polarization: Linear
Impedance: 50Ω
Input Power: 10W

Wi-Fi/Bluetooth 2.4GHz Feed

Frequency: 2400-2500 MHz
Bandwidth: 100 MHz (RL<-10dB)
Peak Gain (dBi): 1.43
Efficiency (%): 67.63
Return Loss (dB): < -10
Isolation (dB): >6
Polarization: Linear
Impedance: 50Ω
Input Power: 10W
