Description

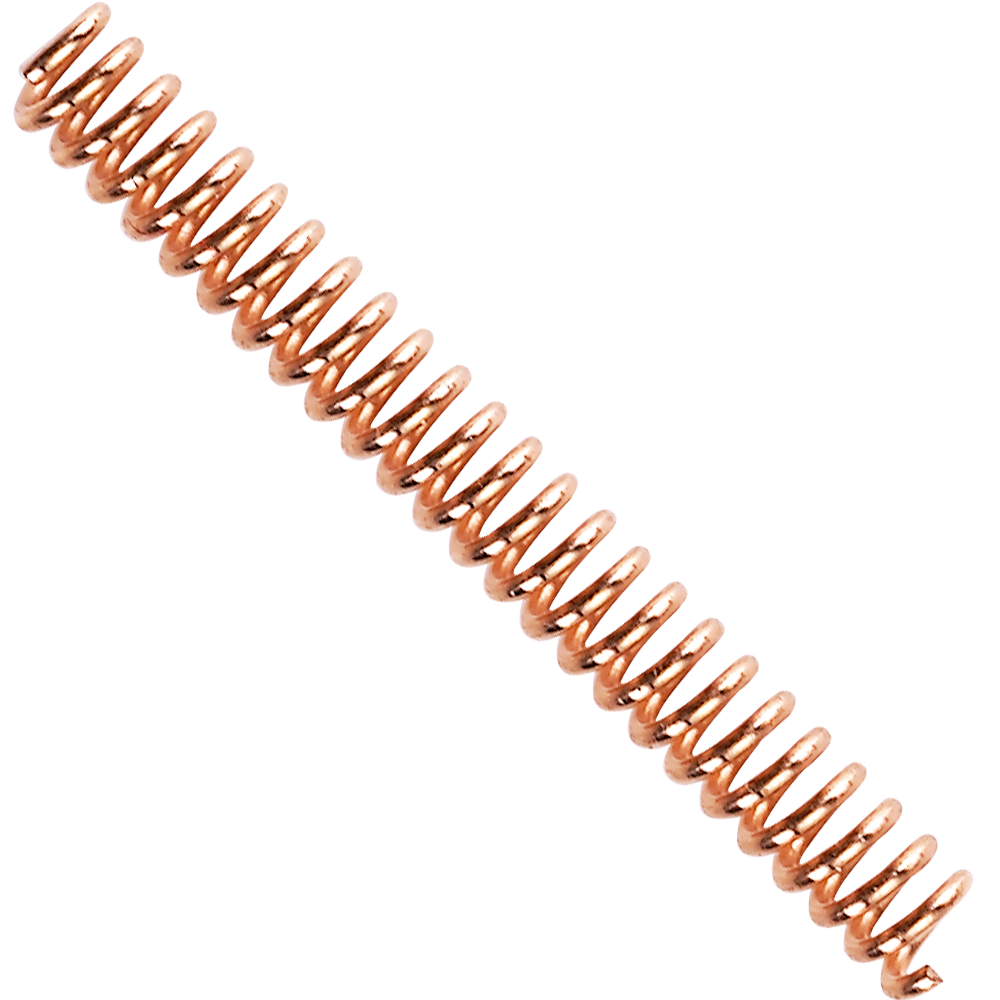

HA.10.A is a compact, low-profile 169MHz ISM-band quarter wavelength helical monopole antenna designed for direct PCB integration where space is limited.
- Compact embedded design: ideal for small enclosures and dense PCB layouts
- 169MHz ISM-band operation: suited to sub-GHz systems requiring reliable omnidirectional coverage
- Board-mount implementation: designed to be directly mounted on the PCB
Typical applications include:
- Wireless M-Bus metering
- Remote asset monitoring
- Alarms
- Paging systems
- Private mobile radio systems
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Helix, Monopole
Location: Internal
LPWAN & IoT Communication: LoRa
Mounting: SMD/SMT Mount
Type: Single
Frequency: 169 MHz
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni
Return Loss: <-10
VSWR: 2:1
Gain (Max): 2
Dimensions: it is ideal for typical 169 MHz applications such as
Weight: 4g
RoHS Compliant: Yes
