Description

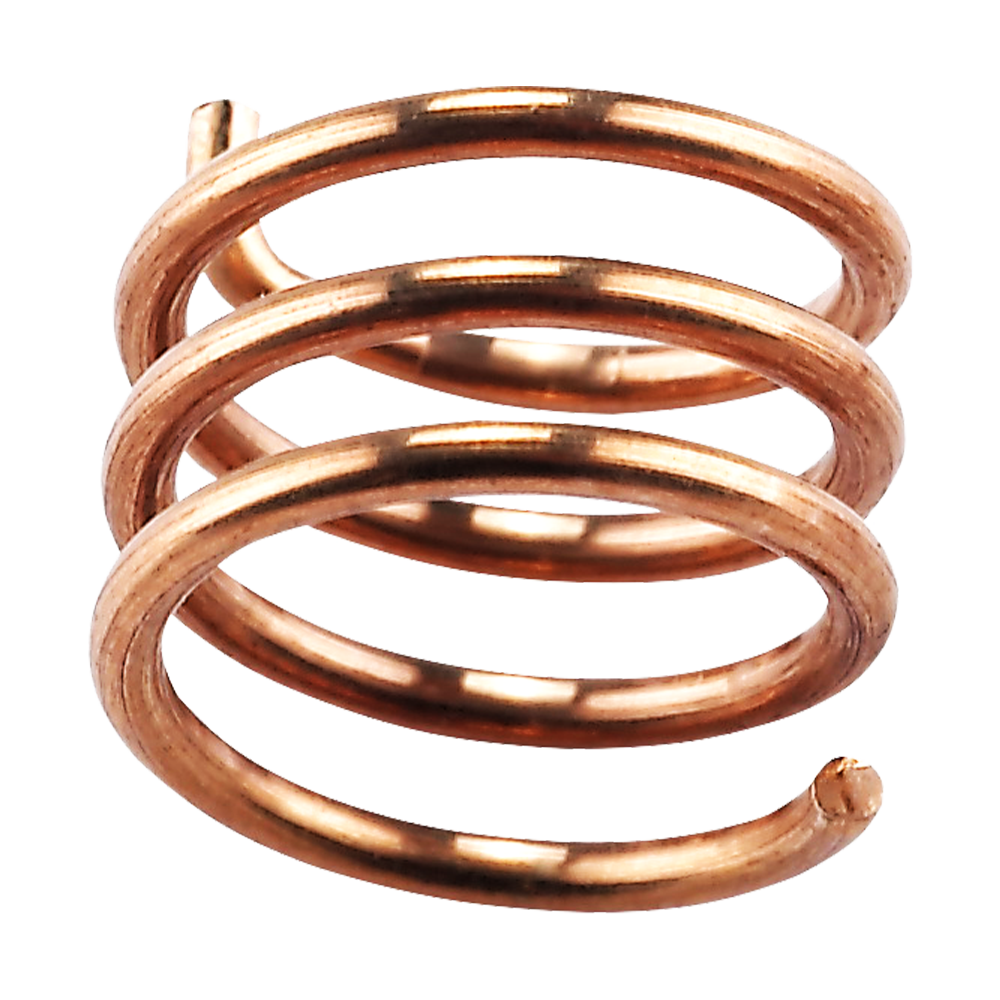

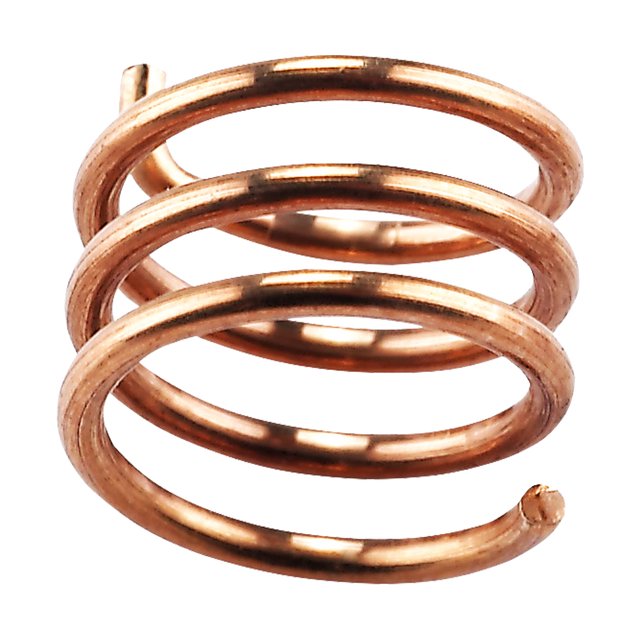

The HA.21.A is a compact 868MHz quarter-wave helical monopole designed for embedded devices operating in the ISM band. Its mechanically sturdy helical coil structure is built for stable performance in space-constrained IoT hardware.
It is suited to applications such as smart metering, smart security systems, and remote asset monitoring where reliable sub-GHz connectivity is required.
- Compact embedded form factor: Easy to integrate into small devices
- Designed for sub-GHz ISM/LoRa use: Optimized for 868MHz operation
- Integration-friendly design: Intended for PCB implementation with appropriate ground reference
It can be easily mounted on the surface by soldering. Since it is a monopole design, it must be connected to the main-board device ground-plane to radiate efficiently.
Two models of evaluation boards are available to show performance when the antenna is parallel mounted or orthogonally mounted to the ground plane: HAD.A.21 and HAD.B.21.
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Helix, Monopole
Location: Internal
LPWAN & IoT Communication: LoRa
Mounting: SMD/SMT Mount
Short-Range Wireless Standards: ISM
Type: Single
Humidity: Non-condensing 65°C 95% RH
Dimensions: L: 11mm, Ø10.25mm
Weight: 0.7g
ISM / LoRa (868MHz)
Frequency: 850MHz - 880MHz
Peak Gain (Max): 2 dBi
VSWR: 1.2
Impedance: 50Ω
Polarization: Linear
