Description

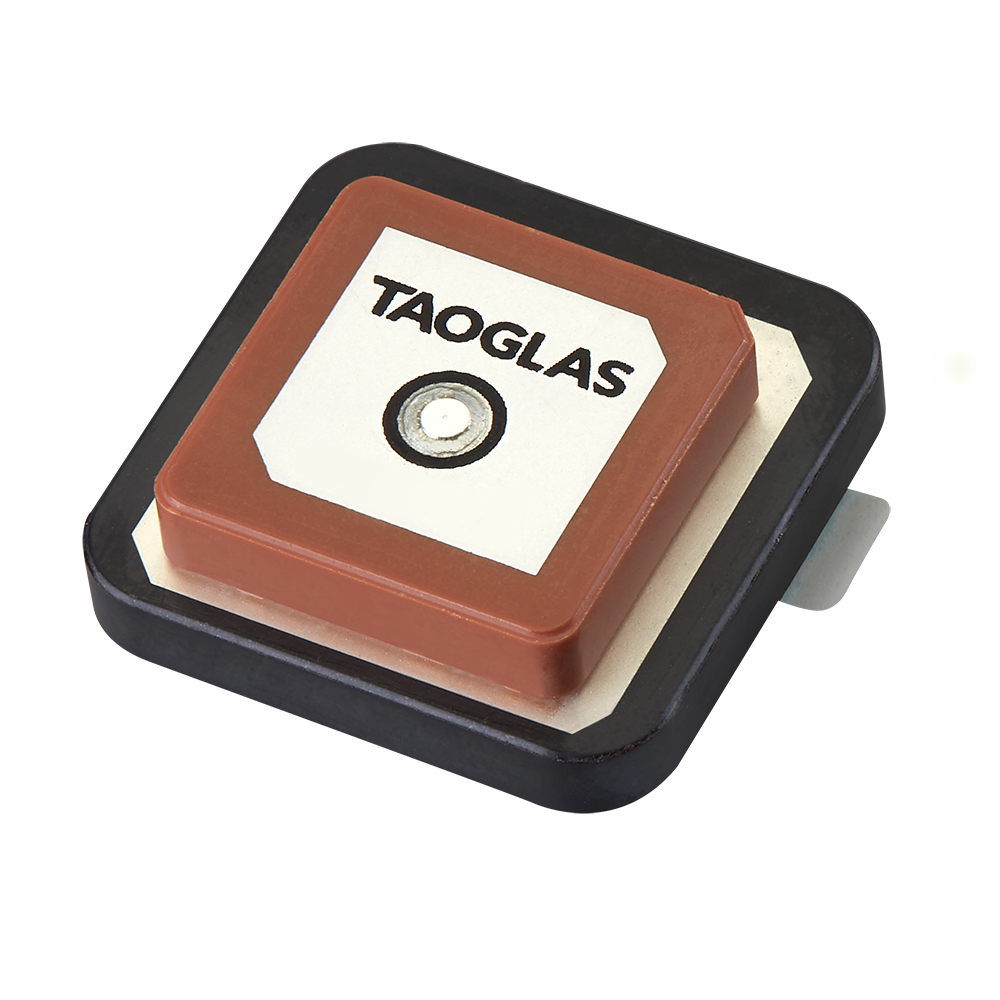

This compact, passive GNSS patch antenna is designed for high-precision L1/L2 positioning in space-constrained devices. Its stacked ceramic patch construction helps deliver strong directional performance for fast positioning and reliable navigation across key GNSS constellations.
- Multi-constellation support: GPS, GLONASS, Galileo and BeiDou coverage
- Compact form factor: suited to small navigation and tracking devices
- Optimized integration: tuned and tested on a 70 x 70mm ground plane for excellent radiation patterns
Typical applications include: Wearables, Transportation, Precision Agriculture, Navigation, Security, Autonomous Vehicles.
Installation / Environmental
The following is an example on how to integrate the HP2258.A into a design. The HP2258.A has one pin which is used for the RF Feed. The manufacturer recommends using a minimum of 70x70mm ground plane to ensure optimal performance.
Top view of an example 70x70mm PCB Reference Design.
Please find the Integration files in Altium, 2D formats and the 3D model for the HP2258.A here:
https://www.taoglas.com/product/compact-multi-band-l1-l2-gnss-patch-antenna-25x25mm/
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount, SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: 25 x 25 x 8mm Pin and Adhesive Mount RoHS & Reach Compliant
Weight: 18g
GNSS (Passive)
Frequency: 1220-1610 MHz
GNSS Bands: L1/L2
Standards: GPS L1/L2, GLONASS G1/G2, BeiDou B1, Galileo E1
Impedance: 50 Ω
VSWR: <2
Polarization: RHCP
Radiation Pattern: Directional
Gain (Max): 3.44 dBi
Test Ground Plane: 70 x 70 mm
