Description

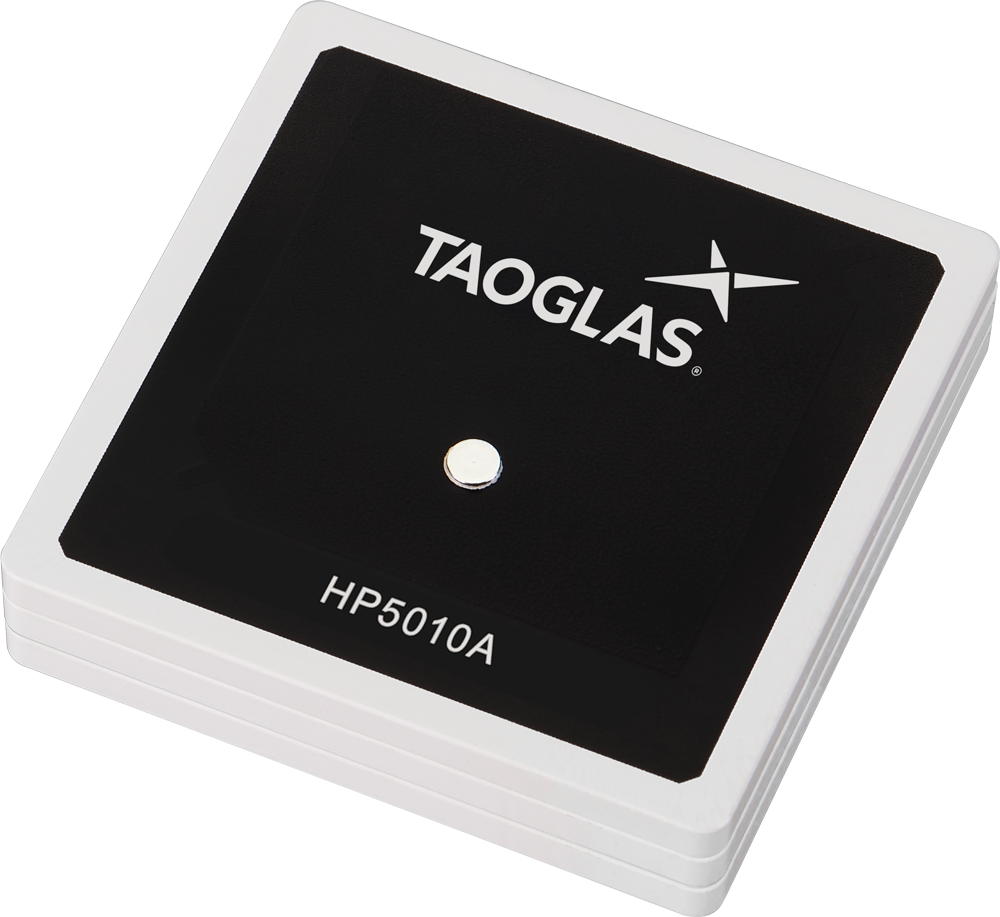

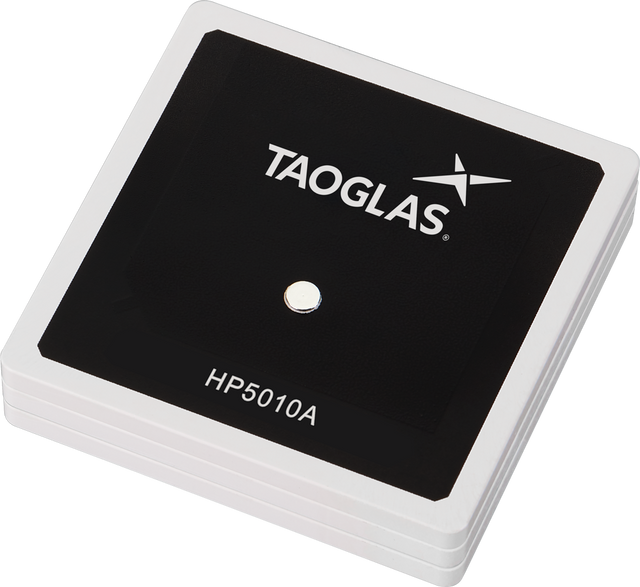

The HP5010A is a stacked, embedded passive GNSS patch antenna designed for multi-constellation positioning applications requiring a robust, impact-resistant antenna solution.
- Multi-constellation support: GPS (L1/L2/L5), GLONASS, Galileo and BeiDou
- RHCP patch design with single-feed patch assembly
- Rugged construction: ultra-impact resistant Terrablast material
- Embedded integration for compact navigation devices and platforms
Typical applications include:
- Transportation
- Defence
- Marine
- Agriculture
- UAV navigation
Installation / Environmental
The antenna has been tuned and tested on a 70*70mm ground plane.
The HP5010A is mounted via a pin and double-sided adhesive. This antenna works well without modifications in most environment but can be tuned and further optimized to different ground planes and enclosures if this is required. Custom antenna modifications are subject to possible NRE and minimum order quantity.
Terrablast antennas are not suitable for SMD reflow. The correct method is manual soldering at a soldering temperature of 380°C +/- 20°C for a duration of 3 to 5 seconds. All Terrablast antennas undergo rigorous temperature, vibration and impact tests and exceed the highest ISO16750 standards.
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Satellite Navigation: GNSS
Type: Single
GNSS Type: Passive GNSS
GNSS Bands: L1/L2/L5
Termination Style: Pin
Dimensions: 50*50*10mm Tuned for Centre Positioning on a 70*70mm Ground-plane Patent Pending
Height: 10.5 ±2 mm
Weight: 59.5 g
Tuned Ground Plane: 70*70mm
Impedance: 50Ω
Polarity: RHCP
VSWR: <2
GNSS (Passive)
Frequency: 1189MHz - 1605MHz
Standards: GPS/QZSS, GLONASS, Galileo, BeiDou
GNSS Bands: L1/L2/L5
Polarization: RHCP
Impedance: 50Ω
VSWR (max.): 2.0:1
Passive Antenna Efficiency (%): 58.4 - 78.5
Passive Antenna Gain at Zenith (dBi): 3.0 - 4.0
Average Gain (dB): 4.98 - 17.1
Gain (Max): 17.1
