Description

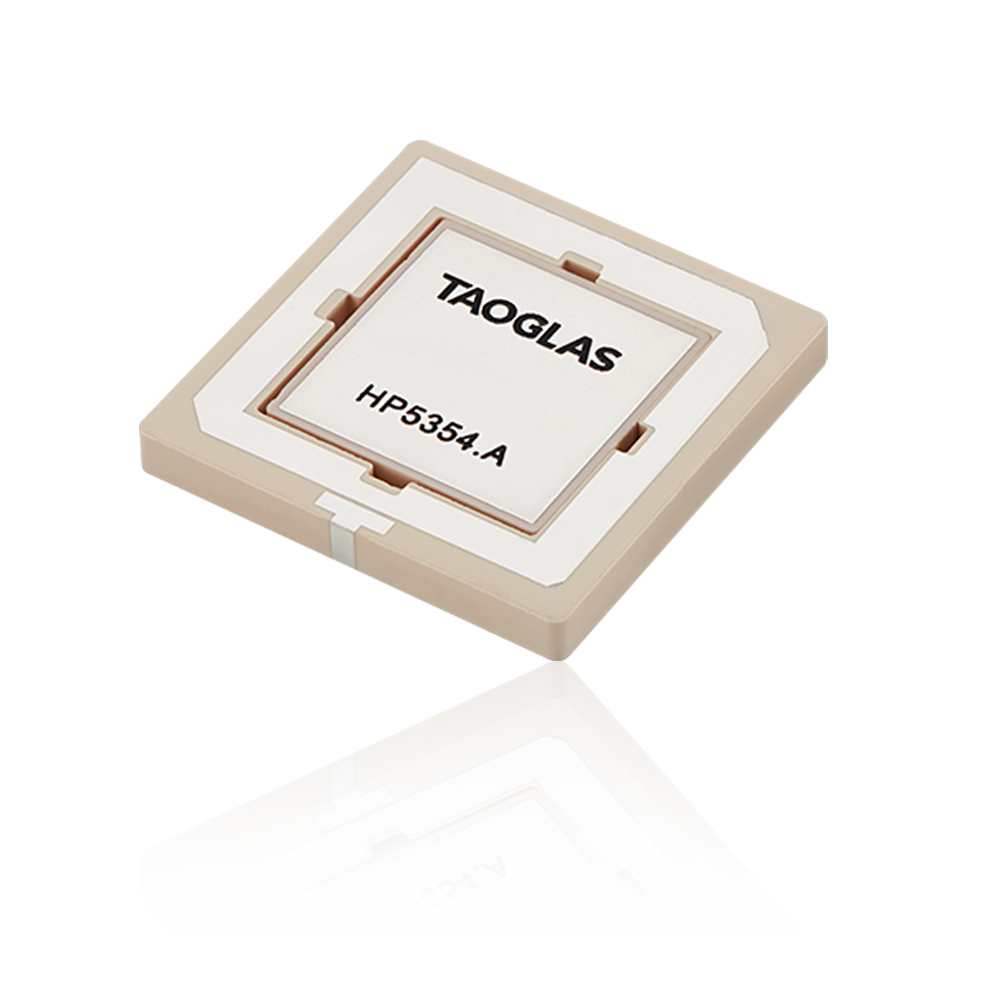

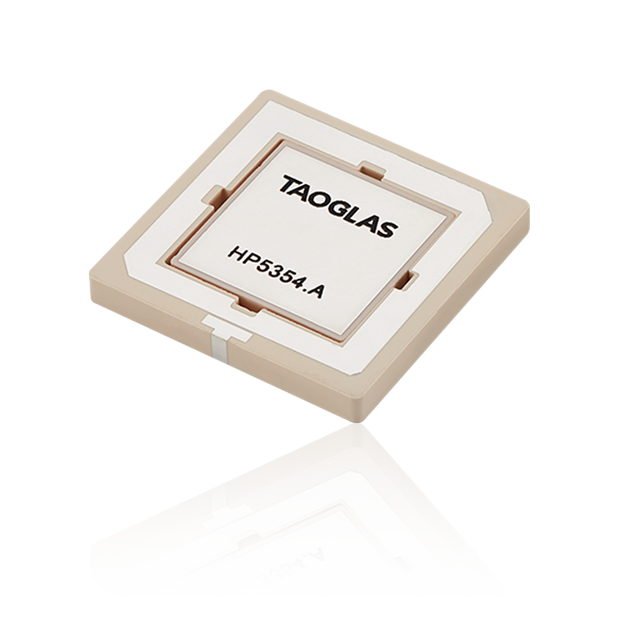

This compact, low-profile multi-band GNSS patch antenna is designed to help deliver accurate positioning in space-constrained devices. Its patent-pending “patch within a patch†ceramic design supports modern L1/L5 receivers while maintaining a very low profile for easier integration.
- Multi-constellation support: BeiDou, GPS/QZSS, GLONASS, and Galileo bands
- Low-profile form factor: suited to compact product designs where stacked patch antennas are too tall
- Designed for integration: suitable for device-level GNSS designs requiring a passive patch solution
Typical use cases include: Wearables, Compact Asset Trackers, Precision Agriculture, Navigation, Industrial Tracking, and Autonomous Vehicles & Robotics.
If an active front-end is required, a companion SMT GNSS front-end module such as TFM.100B can be integrated on the device PCB alongside the antenna.
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: SMD/SMT Mount
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø35 x 4 mm
Weight: 16g
GNSS (Passive)
Frequency: 1160MHz - 1610MHz
GNSS Bands: L1/L5
Standards: BeiDou (B1/B2a); GPS/QZSS (L1/L5); GLONASS (G1); Galileo (E1/E5a)
Polarization: RHCP
Impedance: 50
VSWR: <2
Gain (Max): 2.61
Mechanical Style: Patch
Mounting Style: SMD/SMT
Termination Style: SMD/SMT
