Description

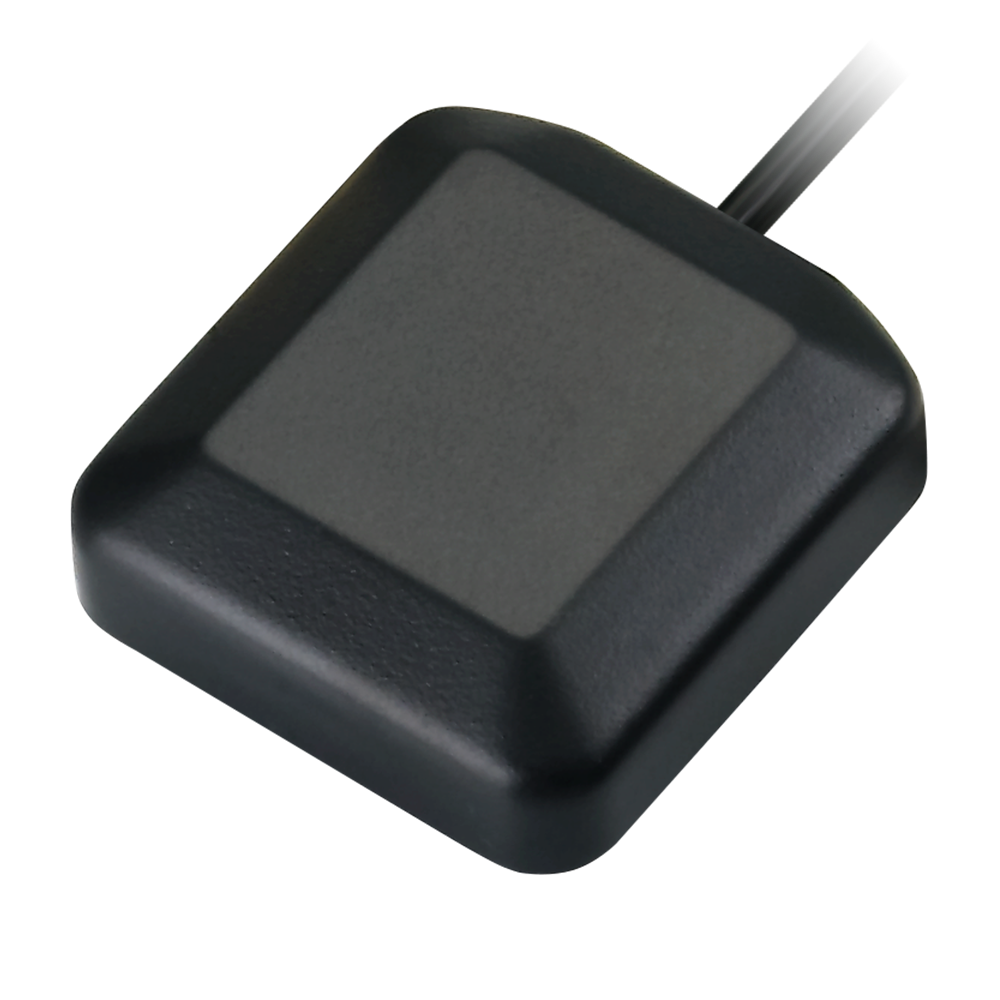

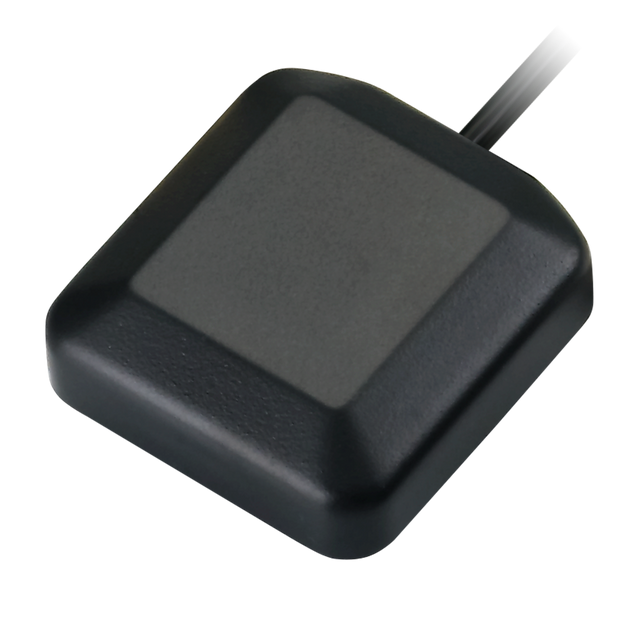

The IAA.01 is a high-performance magnetic mount antenna designed to communicate efficiently with the Iridium Satellite Communication system. It is engineered for stable performance when used with a 30 x 30cm ground plane and is suitable for harsh, exposed installations thanks to its waterproof, corrosion-resistant housing.
- Iridium certified for commercial use with the Iridium Communications System
- Magnetic mount for quick installation and easy removal between vehicles or assets
- Ceramic patch design tuned for improved stability in the target antenna environment
- IP67-rated enclosure for robust outdoor/external durability
The cable and connector are fully customizable; custom cables and connectors are available.
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 120cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: External
Mounting: Magnetic Mount
Type: Single
IP Rating: IP67
Dimensions: 45*45*15mm Custom cables and connectors available Iridium has certified the IAA
Weight: 43.5g
Iridium (SatCom)
Frequency: 1616-1626.5 MHz
Standards: Iridium
Polarization: RHCP
Impedance: 50Ω
VSWR: <2
Gain (Max): 3.7 dBi
Ground Plane: Designed to work in conjunction with a 30 x 30cm ground plane
Connector Type: SMA(M) Straight
Cable Length: 120cm
Cable Type: RG-174
