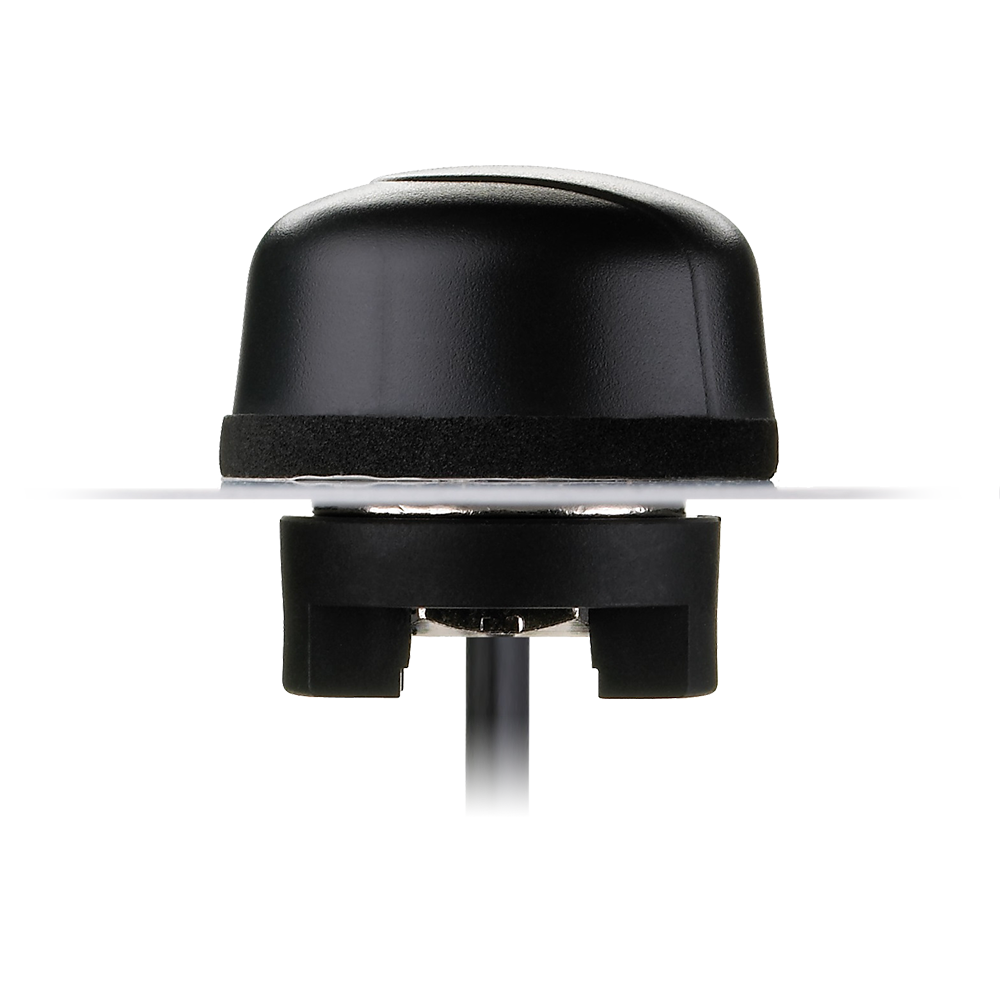

IS.01.B.305111 Antenna Outdoor External ISM, LoRa screw mount Hercules SMA-M 300cm IP65 for Mesh Networks, Smart Metering, Vehicles, Outdoor and Indoor Assets

Hercules is a high-performance 433MHz antenna designed for demanding, heavy-duty deployments where a robust permanent installation is required. Built with extra-thick threads and a durable UV-resistant housing, it is well-suited for mesh networks, smart metering, and vehicle or asset installations in challenging environments.

• Rugged heavy-duty mechanical design for permanent installations
• Designed for external use on mesh networks, vehicles, and assets
• Durable UV-resistant enclosure designed to withstand harsh handling
• Cable and connector options can be customized to suit your integration needs

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: TGC-200

Technical Specifications

Operating Temperature: -40°C to +85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Screw Mount
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP65
Dimensions: Height: 29mm * Diameter: 49mm No Ground Plane Required IP65 Rated Enclosure RoHS
Weight: 214g

ISM / LoRa (433 MHz)

Frequency: 400MHz - 450MHz
Standards: ISM/LoRa
Gain (Max): 5.12 dBi
VSWR: 2:1
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 5W
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: TGC-200

Download Datasheet PDF
