Description

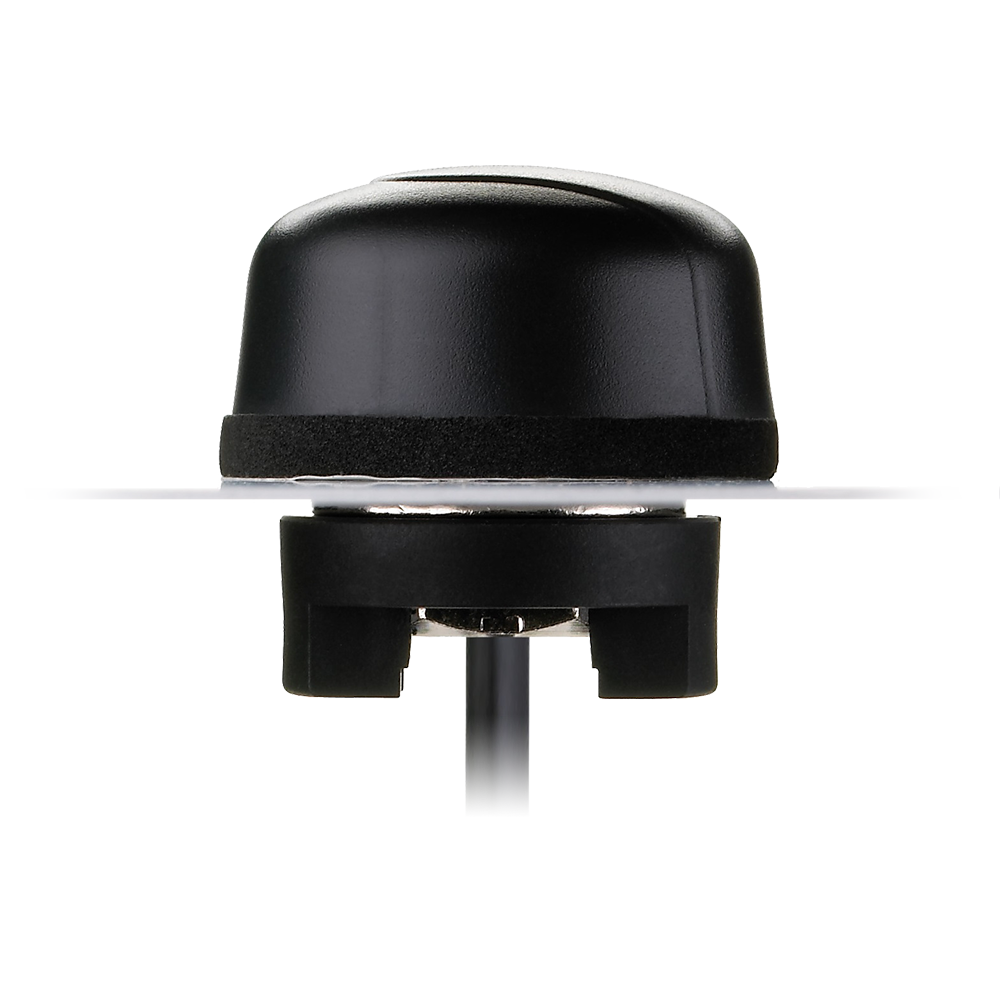

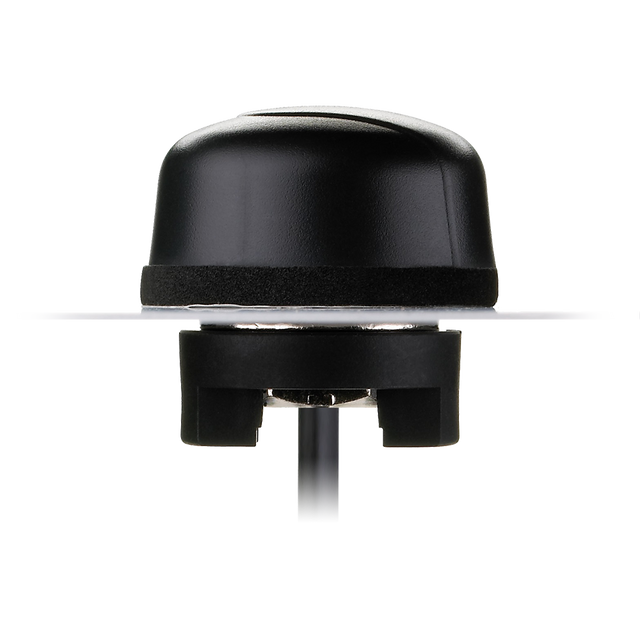

The Hercules IS.04 is a high-performance 868MHz ISM antenna designed for external use on vehicles and outdoor assets. Its durable, UV-resistant housing and heavy-duty permanent mounting design help it withstand harsh environments and vandalism. The low-profile form factor is designed to reduce snagging on obstacles while maintaining consistent, omni-directional performance.
- Designed for external installations: suited to vehicles and outdoor deployments
- Omni-directional performance: supports reliable reception and transmission across the band
- Low-profile, rugged enclosure: UV and vandal resistant housing
- Weather resistant design: rated to IP65
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 300cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to +85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Screw Mount
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP65
Dimensions: 29*49mm (Diameter) IP65 Rated Waterproof RoHS & REACH Compliant
Weight: 152g
ISM / LoRa (868 MHz)
Frequency: 860MHz - 880MHz
Standards: ISM/LoRa
Gain (Max): 2 dBi
Polarization: Linear
Impedance: 50 ohms
VSWR: <2.5:1
Max Input Power: 10 watts
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG174
