Description

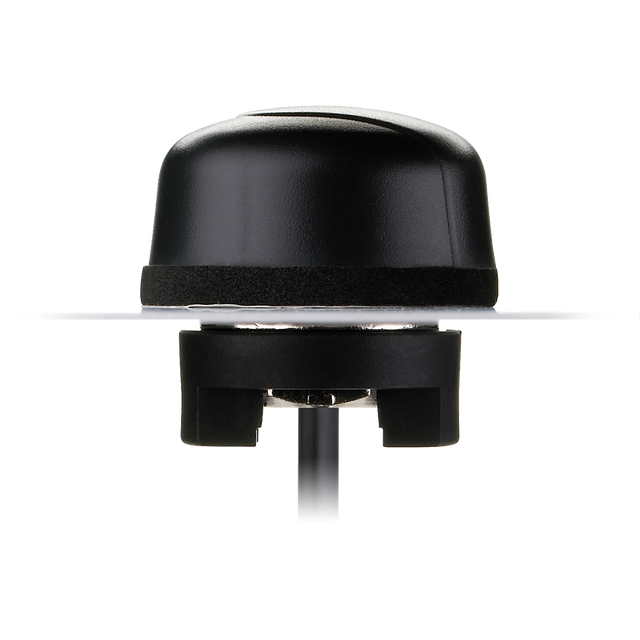

The Hercules IS.05 is a low-profile, heavy-duty ISM band antenna designed for external installations on vehicles and outdoor assets. Its rugged housing is UV and vandal resistant, and the omni-directional performance helps maintain reliable reception and transmission across the band.
- Rugged external design: built for harsh, exposed installations
- Low-profile form factor: helps reduce snag risk on branches and obstacles
- Omni-directional coverage: supports consistent connectivity for mobile and fixed assets
- Weather-resistant enclosure: suitable for outdoor deployments
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 300cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C to +85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Screw Mount
Type: Single
IP Rating: IP65
Dimensions: 29*49mm (Diameter)
Weight: 142g
ISM / LoRa (915MHz)
Frequency: 902-928 MHz
Standards: ISM, LoRa
Impedance: 50 ohms
Polarization: Linear
VSWR: <2.5:1
Max Input Power: 10 watts
Gain (dBi): up to 3.14
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
