Description

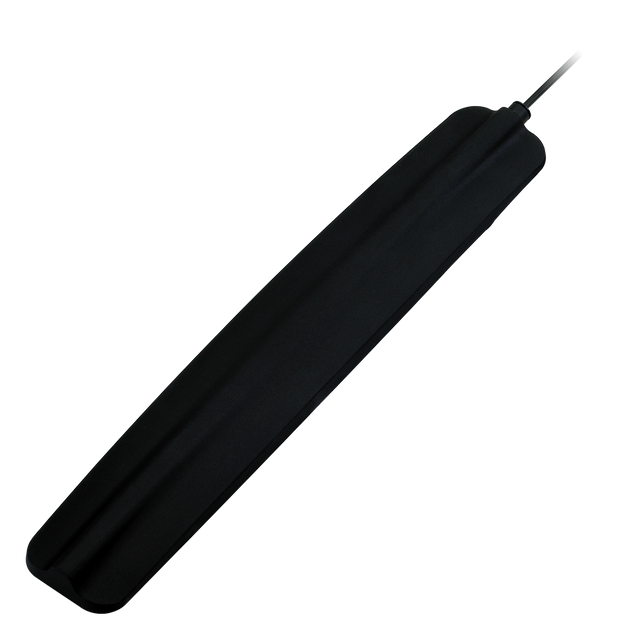

ISA.01 is a wide-band, omni-directional, low-profile antenna designed for adhesive mounting on glass for internal or external use. It is tuned specifically to operate optimally on glass, helping deliver stable performance across the 400–470MHz band in a compact, semi-flexible form factor.
Ideal for applications where a discreet on-glass installation is required, including automotive and telematics use cases. For mounting on plastic, use ISA.06. For mounting directly on metal, use FW series whip antennas.
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 300cm
- Cable Type: RG-174
Technical Specifications
Operating Temperature: -40°C ~ +85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Adhesive Mount
Type: Single
IP Rating: IP65 (Outside Casing), IP67 (Internal PCB)
Dimensions: 239*42*10.5mm
Weight: 103g
ISM / LoRa
Frequency: 400MHz - 470MHz
Standards: ISM / TETRA / CDMA 450 / SCADA / Family Radio Service / General Mobile Radio Service / Bio-Medical Telemetry
Polarization: Linear
Impedance: 50Ω
VSWR: 2:1
Peak Gain (dBi): 0.5 (410MHz), 1.5 (433MHz), 0.8 (450MHz), 0 (470MHz)
Efficiency (%): 30 (410MHz), 35 (433MHz), 30 (450MHz), 30 (470MHz)
Return Loss (dB): -10.0 (410MHz), <-15.0 (433MHz), -10.0 (450MHz), -8.0 (470MHz)
Connector Type: SMA (M)
Cable Length: 300cm
Cable Type: RG-174
