Description

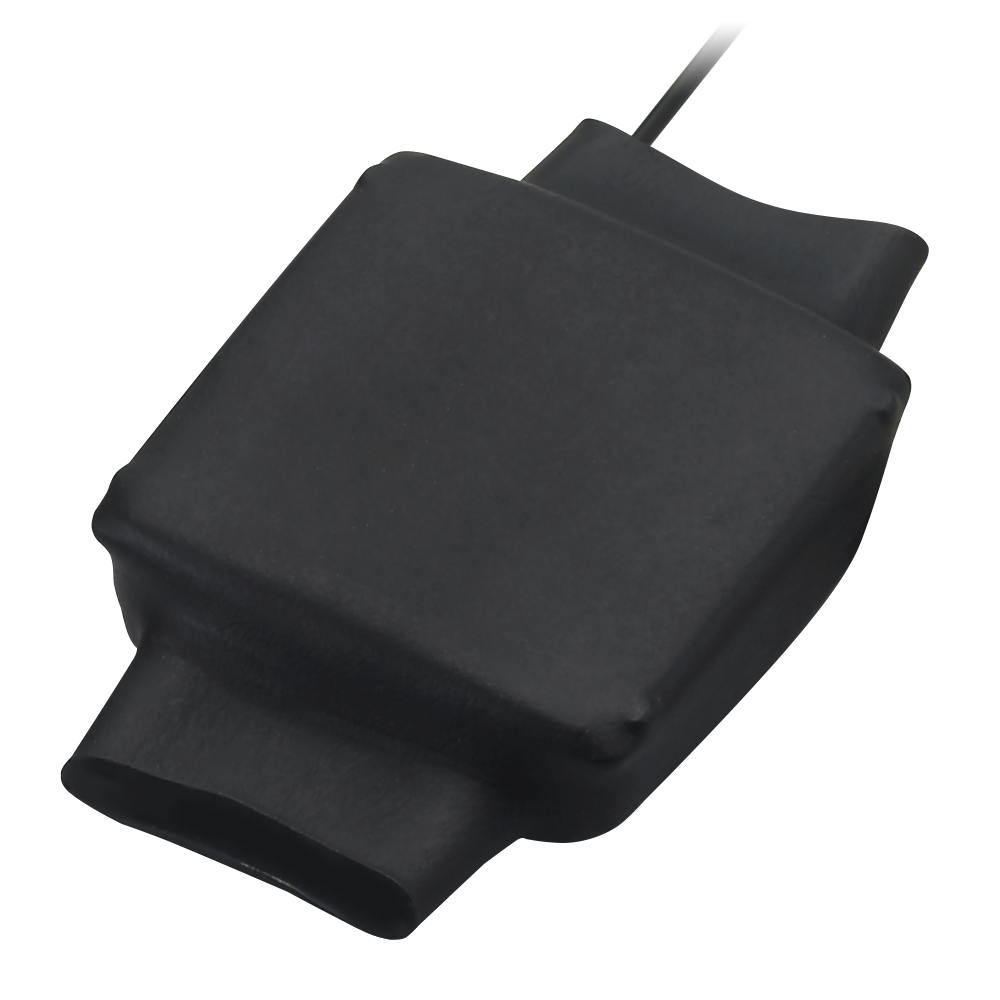

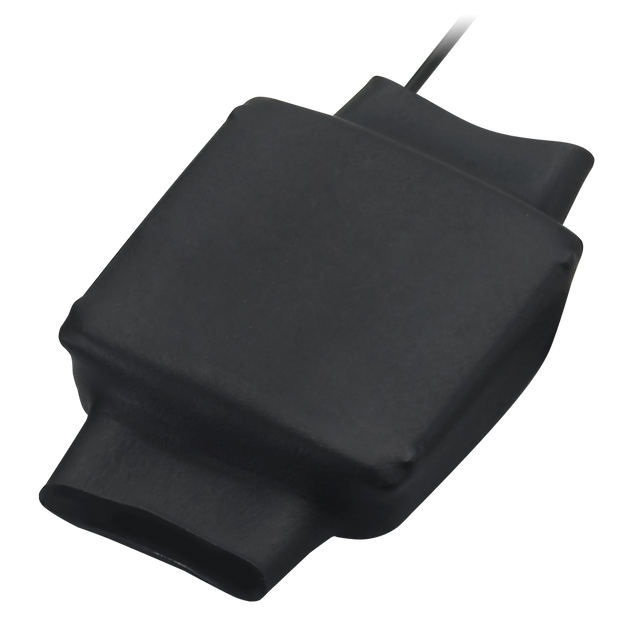

This adhesive-mounted patch antenna is designed for compact 915MHz ISM-band wireless devices where the antenna may be installed on metal surfaces or used without a dedicated ground plane.
- Reliable 915MHz ISM-band coverage: suited to short-range wireless links and mesh networking.
- Works on metal surfaces: supports installations near metal-rich environments (e.g., vehicle compartments).
- Water-resistant enclosure: IP65-rated outside casing for added durability.
- Simple integration: low-effort adhesive mounting for fast placement.
Typical use cases include: RFID readers, short-range 915MHz mesh networks, and installations in environments with many metal objects (such as near a car engine).
Connector & Cable
- Connector Type: IPEX MHFHT (U.FL compatible)
- Cable Length: 30cm
- Cable Type: Φ1.37 RF coaxial cable
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Adhesive Mount
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP65
Dimensions: 80*50.5*11 mm
Weight: 32g
ISM 915 MHz
Frequency: 902MHz - 928MHz
Standards: ISM/LoRa
Polarization: Linear
Impedance: 50 Ohms
VSWR: 2:1
Max Input Power: 5 Watts
Peak Gain (dBi): 5.12 (direct on 30cm x 30cm ground plane), 0 (free space)
Efficiency (%): 68.94 (direct on 30cm x 30cm ground plane), 45 (free space)
Connector Type: IPEX MHFHT (U.FL compatible)
Cable Length: 30cm
Cable Type: Φ1.37 RF coaxial cable
