Description

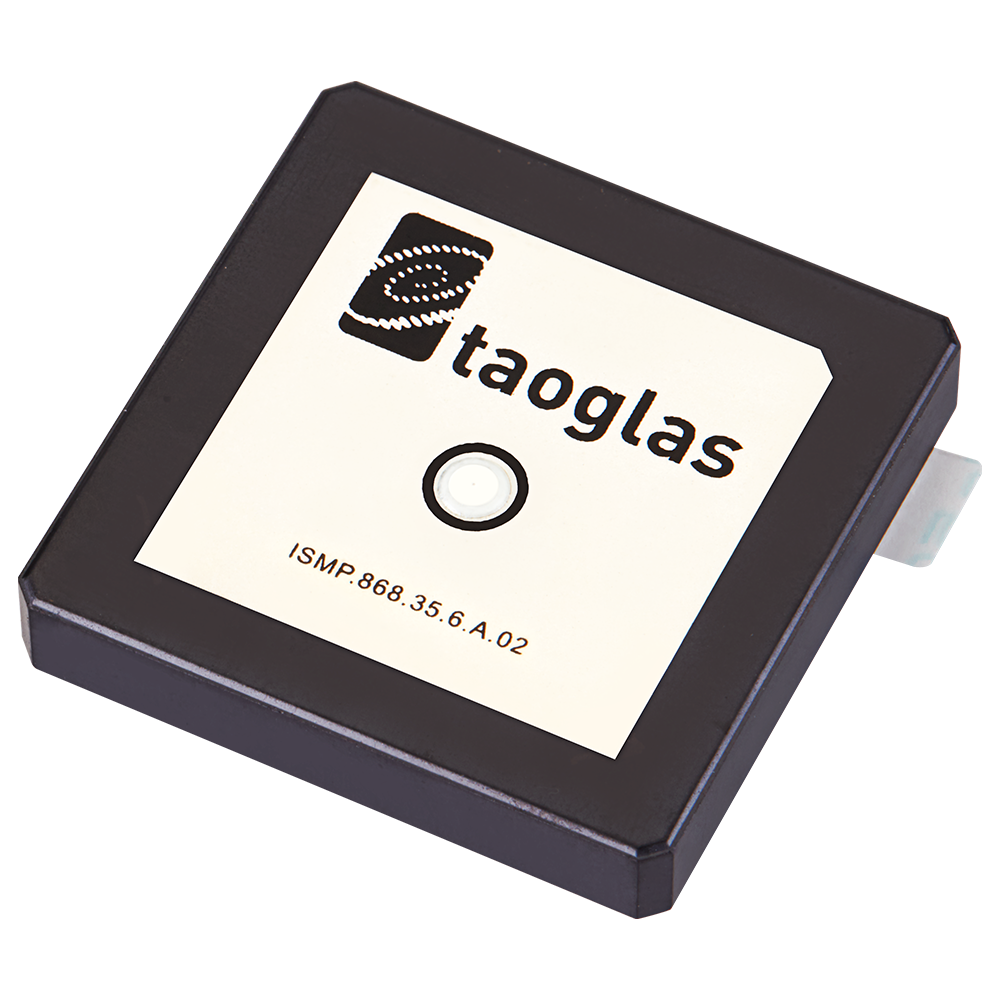

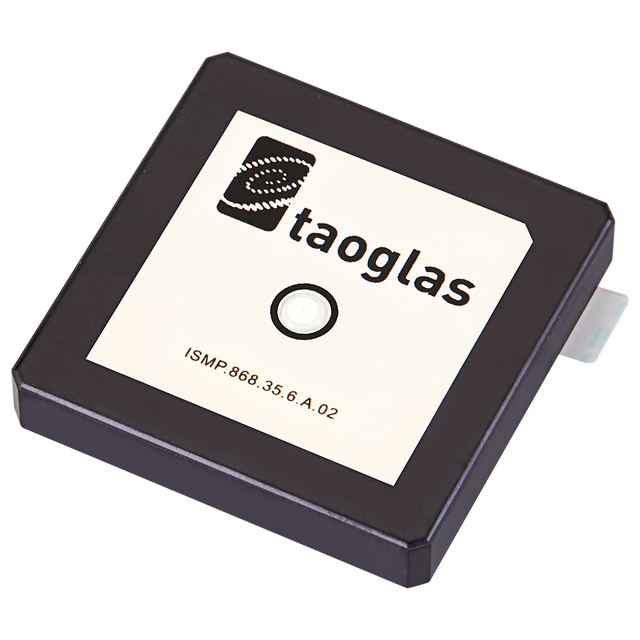

ISMP.868 is a low-profile embedded ceramic patch antenna designed for the 868MHz ISM band. Its compact form factor helps deliver reliable performance while using minimal board space.
When mounted on a 70x70mm ground plane, it provides strong efficiency and peak gain, with right-hand circular polarization (RHCP) and low axial ratio to help maintain link reliability where device orientation can change.
- Designed for 868MHz ISM: suitable for LPWAN networks and 868MHz ISM deployments
- Compact embedded patch form factor: supports space-constrained devices
- RHCP radiation: helps improve link robustness in changing orientations
- Supports custom tuning: available for specific device environments (subject to NRE and MOQ)
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
LPWAN & IoT Communication: LoRa, SigFox
Mounting: Pin Mount, Adhesive Mount
Short-Range Wireless Standards: ISM
Type: Single
Frequency: 868 MHz
Impedance: 50 Ω
Polarization: RHCP
Return Loss: -10dB max.
VSWR: <2.2:1
Efficiency: 66.3 %
Average Gain: -1.78 dB
Peak Gain: 2.17 dBi typ.
Axial Ratio: 3.0 max @ Zenith
Dimensions: Ø35 x 6 mm
Weight: 34.3 g
Pin Diameter: 0.9 mm
Pin Length: 2.4 mm
Storage Temperature: -40°C to 105°C
Humidity: Non-condensing 65°C 95% RH
Note: Antenna properties were measured with the antenna mounted on 70*70mm Ground Plane
