Description

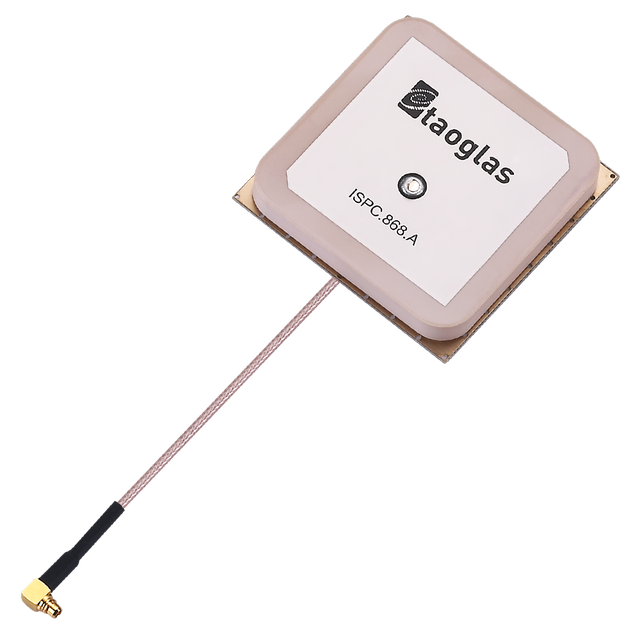

This embedded ceramic patch antenna is designed for 865–870MHz ISM band devices where improved coverage is required in compact fixed wireless designs. It is optimized to perform best when mounted with the backside placed on a metal panel, helping deliver a strong broadside radiation pattern.
- Designed for EU 868MHz ISM band: Supports LoRa and SigFox deployments in the 865–870MHz range
- Embedded patch form factor: Compact ceramic construction for integration into devices and enclosures
- Application-ready performance: Suitable for RFID readers, short-range 868MHz mesh networks, and automotive ISM use
- Custom options: Cable type, length, and connector customization available (MOQ may apply)
Connector & Cable
- Connector Type: MMCX Male Right Angle
- Cable Length: 9.2cm
- Cable Type: RG178
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
LPWAN & IoT Communication: LoRa, SigFox
Mounting: Pin/Adhesive Mount
Type: Single
Dimensions: 49.5*49.5*7.5mm
Weight: 50g
RoHS: Yes
ISM / LoRa / SigFox (865–870MHz)
Frequency: 865 to 870MHz
Impedance: 50 Ohms
Polarization: Linear
VSWR: 2
Return Loss (dB): -6.3 (Free Space), -6.7 (On 30*30cm ground plane)
Peak Gain (dBi): 0.37 (Free Space), 4.63 (On 30*30cm ground plane)
Efficiency (%): 46.09 (Free Space), 61.84 (On 30*30cm ground plane)
Average Gain (dB): -3.36 (Free Space), -2.09 (On 30*30cm ground plane)
Radiation Properties: Broadside Toward Zenith
Max Input Power: 5 W
Connector Type: MMCX Male Right Angle
Cable Length: 9.2cm
Cable Type: RG178
