Description
This compact embedded loop chip antenna is designed for 2.4GHz applications, offering high efficiency and a low-profile form factor. Its miniature SMD ceramic construction allows direct mounting on the edge of the main device PCB, making it ideal for space-constrained designs. The antenna leverages the main PCB ground plane to maximize efficiency and requires minimal ground clearance, freeing up valuable board space for other components or signal routing. Delivered on tape and reel, it is well-suited for integration into telematics devices, Bluetooth LE wearables, headsets, smartphones, IEEE802.11 b/g, ZigBee devices, and wireless dongles. The antenna can be tuned for different PCB sizes and enclosures by adjusting the matching circuit, ensuring optimal performance across various device environments.
Connections
Wi-Fi/Bluetooth 2.4GHz
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Loop
Location: Internal
Mounting: SMD/SMT Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
Dimensions: 8*2*2mm
Connection 1 - Wi-Fi/Bluetooth 2.4GHz
Frequency: 2400-2484 MHz
Impedance: 50 Ohm
Peak Gain (dBi): 1
Efficiency (%): 54.5
VSWR: <2
Polarization: Linear
Radiation Pattern: Omni
Max Input Power: 2W

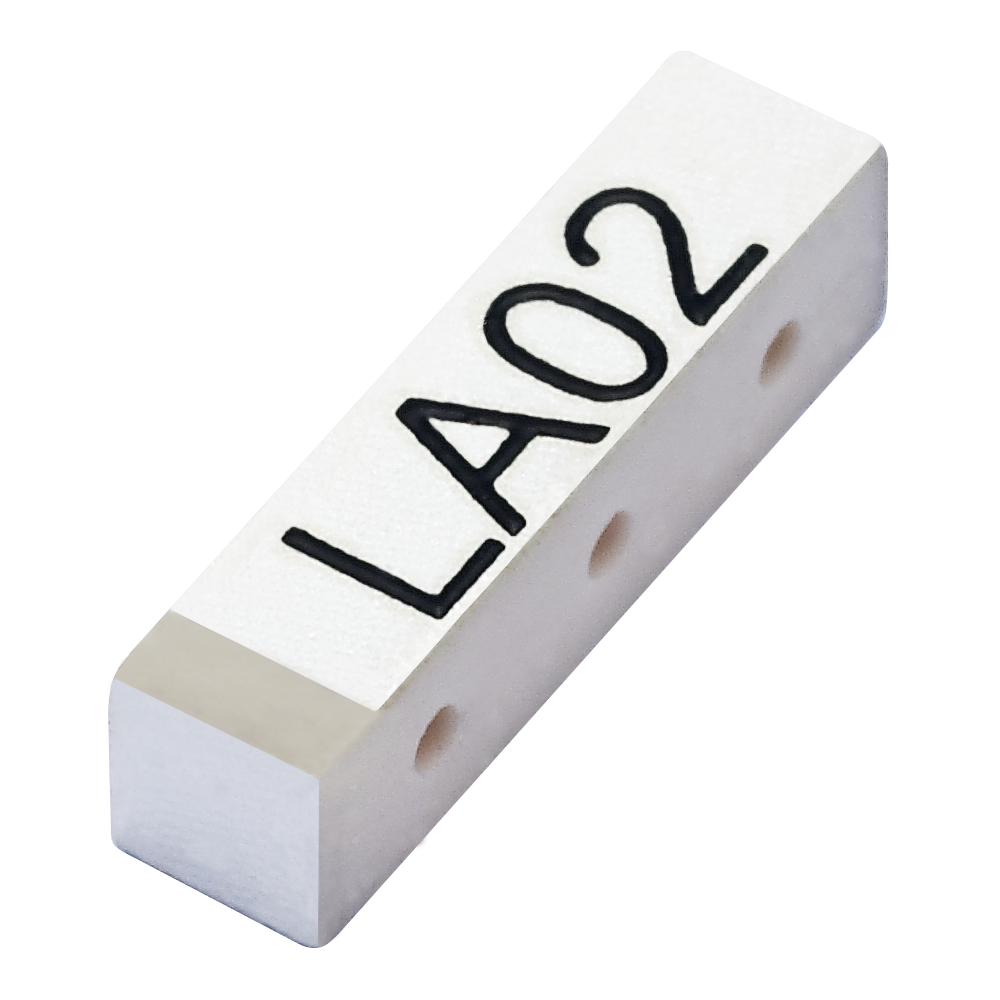

LA.02 Wi-Fi, Bluetooth chip Antenna SMD/SMT
