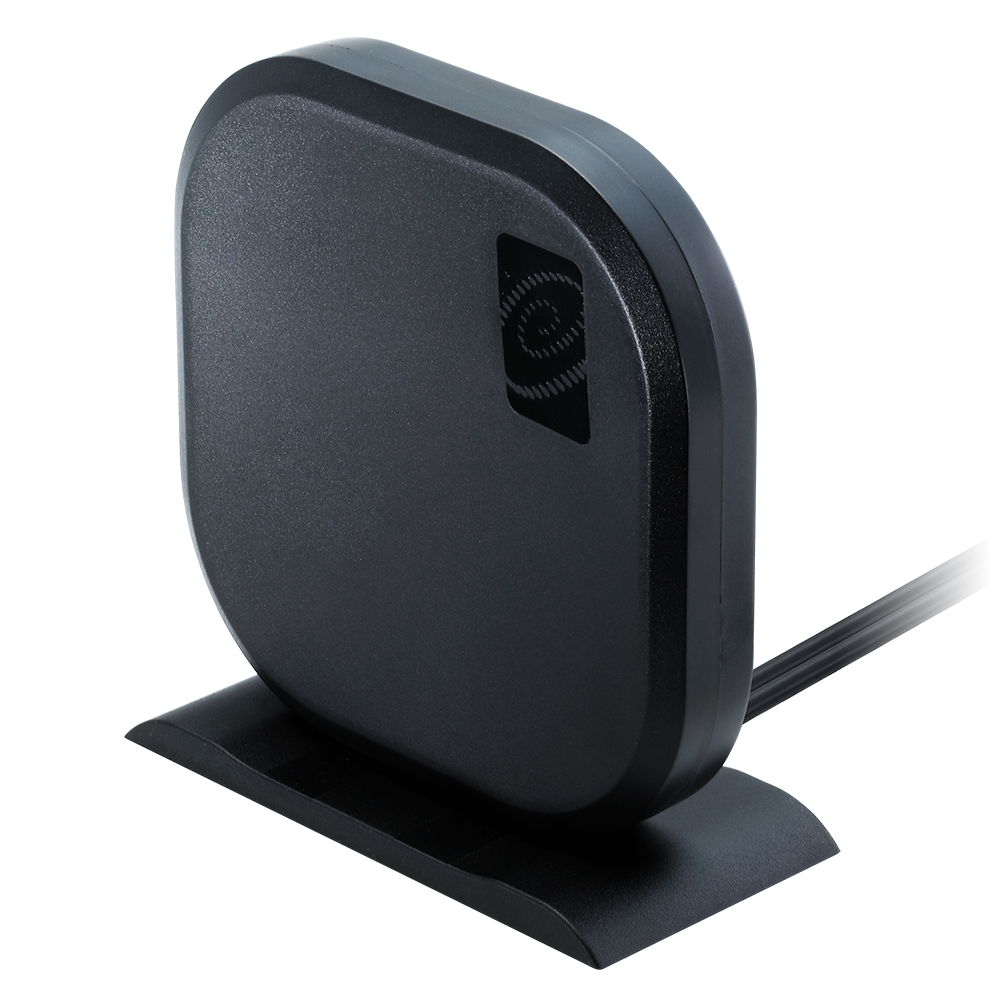

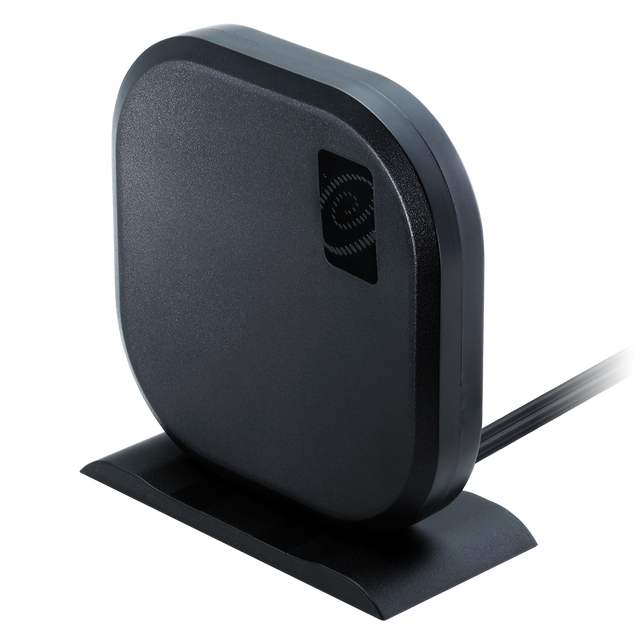

LMA100.A.BI.001 Antenna Outdoor External 2x2 MIMO 4G/LTE wall/desktop mount Gemini IP65 for HD Real-time Streaming Video over LTE, Intelligent Transport Systems, Internet of Things (IoT market), Digital Signage

Gemini is a robust external 2x2 MIMO cellular antenna designed to improve 4G/LTE router and access point connectivity, with support for 3G/2G fallback networks. Two embedded high-efficiency MIMO elements help reduce self-interference through high isolation and low ECC, improving link stability and throughput in challenging RF environments.

• 2x2 MIMO performance for cellular routers and access points
• 4G/LTE with 3G/2G fallback for wider network compatibility
• Indoor/outdoor capable enclosure for flexible deployments
• Easy mounting options: wall mounting using the rear bracket, or desktop placement using the stand holder

Typical applications include:

• HD Real-time Streaming Video over LTE
• Intelligent Transport Systems
• Internet of Things (IoT market)
• Digital Signage
• HD Broadcast Systems
• Wireless 4G LTE MIMO M2M devices with Legacy 3G Functionality

Connections

2x 4G/3G/2G LTE MIMO (2x2) 698-960MHz, 1710-2170MHz, 2490-2690MHz

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Wall Mount, Desktop Mount
Type: Combination
IP Rating: IP65
Dimensions: 164mm*164mm*36.5mm
Weight: 400 g

4G/3G/2G LTE MIMO (2x2)

Frequency: 698-960MHz, 1710-2170MHz, 2490-2690MHz
Frequency Range: 700MHz - 3000MHz
Impedance: 50 Ω
VSWR: 2:1
Polarization: Linear
Gain (Max): 5
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: CFD-200
